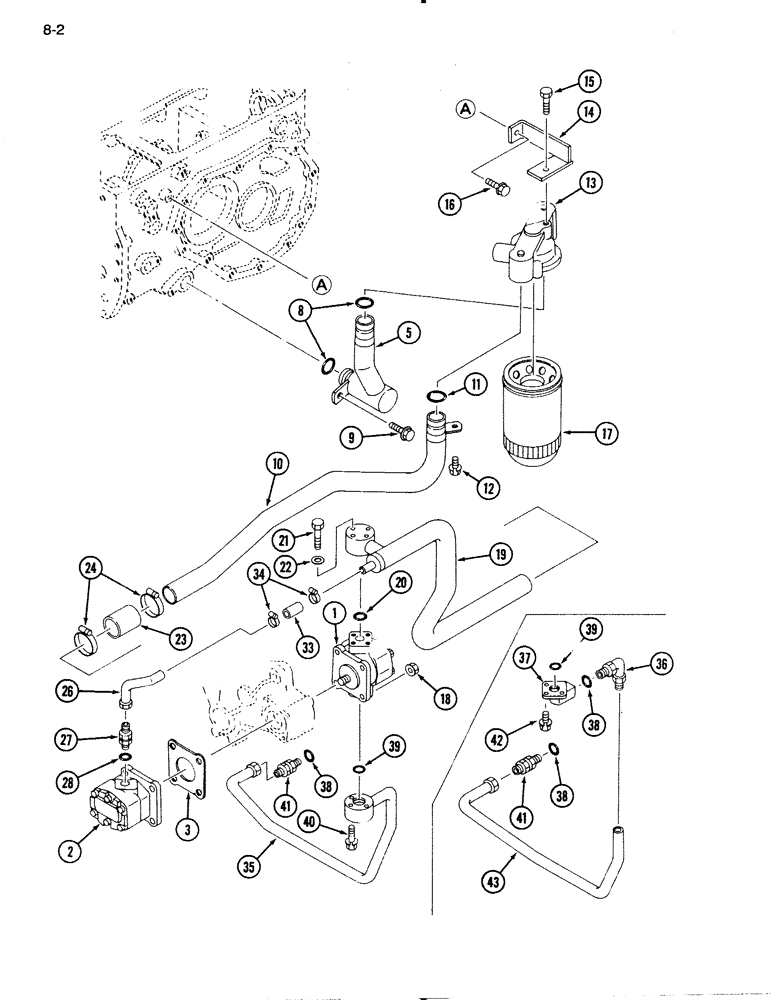

Запчасти Case IH 1130 (8-02) - HYDRAULIC PUMP SYSTEM (08) - HYDRAULICS

1

1992043C1

PUMP

ASSEMBLY - hydraulic, main

1шт.

2

1991525C1

PUMP

ASSEMBLY - hydraulic, auxiliary

1шт.

3

1962335C1

GASKET

- pump

1шт.

5

1992044C1

TUBE,30 - 45 mm OD, 175 mm Length

- pressure

1шт.

8

1269874C1

O-RING

O-RING - 24 mm ID

2шт.

9

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

892-11010

LOCK WASHER,M10

1шт.

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

10

1992045C1

TUBE

- suction

1шт.

11

1269874C1

O-RING

O-RING - 24 mm ID

1шт.

12

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

13

1992046C1

BASE

- hydraulic filter (Hydrostatic drive)

1шт.

13

1992489C1

BASE

- hydraulic filter (Mechanical drive)

1шт.

14

1992047C1

BRACKET

- filter base

1шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 x 20 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

16

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

892-11010

LOCK WASHER,M10

1шт.

17

1992048C1

FILTER

- hydraulic

1шт.

18

825-1408

NUT,M8, Cl 8

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

19

1992049C1

TUBE,31.8 mm OD

- suction (1130 Tractor)

1шт.

19

1992050C1

TUBE,31.8 mm OD

- suction (1140 Tractor)

1шт.

20

1269872C1

O-RING

- 20 mm ID

1шт.

21

614-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8, Full Thd

3шт.

22

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

23

1992051C1

HOSE

1шт.

24

1992052C1

HOSE CLAMP

CLAMP - hose

2шт.

26

1992053C1

TUBE,15 mm OD

- hydraulic (1130 Tractor)

1шт.

26

1992054C1

TUBE,15 mm OD

- hydraulic (1140 Tractor)

1шт.

27

1992607C1

BODY

CONNECTOR - hydraulic

1шт.

28

1992380C1

O-RING,0.739" ID x 0.879" OD x 0.07"

1шт.

33

1992055C1

HOSE

- rubber

1шт.

34

214-1510

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm, W/ Liner

CLAMP - hose

2шт.

35

1992057C1

TUBE

ASSEMBLY - pressure (1130 Tractor)

1шт.

36

1992059C1

ELBOW

- 90 degree (1140 Tractor)

1шт.

37

1992490C1

JOINT

FLANGE (1140 Tractor)

1шт.

38

1992239C1

O-RING

1шт.

39

1992380C1

O-RING,0.739" ID x 0.879" OD x 0.07"

1шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

41

1992080C1

NIPPLE, LUBE

CONNECTOR - straight

1шт.

42

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

(1140 Tractor) Hex, M6 x 20, 8.8

3шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

43

1992058C1

TUBE

- pressure (1140 Tactor)

1шт.

40

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

(1130 Tractor) Hex, M6 x 40, 8.8

3шт.
