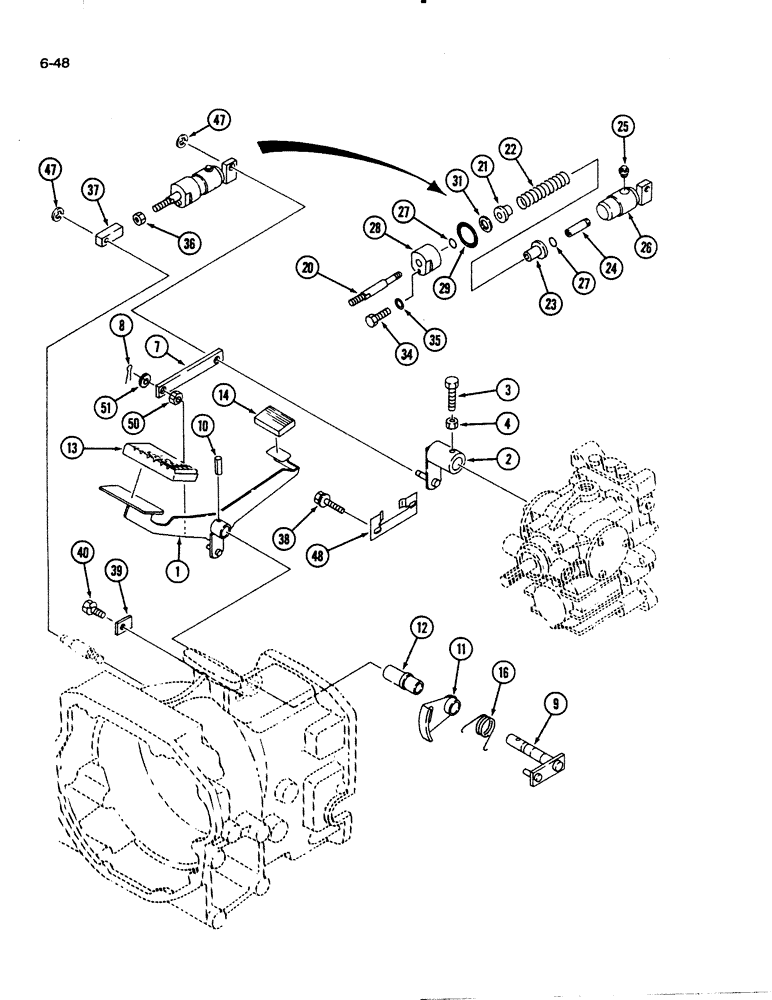

Запчасти Case IH 1130 (6-48) - HYDROSTATIC DRIVE CONTROLS (06) - POWER TRAIN

1

1992475C1

PEDAL

ASSEMBLY - hydrostatic control

1шт.

2

1992006C1

ARM

1шт.

3

1991443C1

BOLT

1шт.

4

1269793C1

NUT

- hex, 10 mm

1шт.

7

1992008C1

PLATE

1шт.

8

732-3220

COTTER PIN,M3.2 x 20

PIN - cotter, 3.2 x 20 mm

1шт.

9

1991446C1

SHAFT

- pedal

1шт.

10

838-1632

LOCK PIN,6mm OD x 32mm L, Slotted

Spring M6 x 32, Slotted

1шт.

11

1991447C1

ARM

- lock

1шт.

12

1992372C1

SHAFT

1шт.

13

1992325C1

COVER

- foot pedal

1шт.

14

1992272C1

PEDAL

COVER - pedal

1шт.

16

1991449C1

SPRING

1шт.

1991450C1

VALVE SPRING

RETURN ASSEMBLY - spring, Includes: Ref. 20 - 35

1шт.

20

1991451C1

SHAFT ASSY.

SHAFT - spring return

1шт.

21

1991452C1

GUIDE

- spring return

1шт.

22

1991453C1

SPRING

- compression

1шт.

23

1991454C1

GUIDE

- spring return

1шт.

24

1991455C1

SHAFT

1шт.

25

444688

PLUG

- hex socket pipe, 1/8 inch PT

1шт.

26

1991456C1

CAP

- spring

1шт.

27

1962508C1

O-RING

O-RING - 10 mm ID

2шт.

28

1991457C1

CAP

- spring

1шт.

29

1269876C1

O-RING

O-RING - 26 mm ID

1шт.

31

1991178C1

SET

SHIM KIT

1шт.

34

614-5008

BOLT,Hex, M5 x 0.8 x 8mm, Cl 8.8, Full Thd

1шт.

35

1992853C1

SEALING WASHER

WASHER - seal

1шт.

36

825-1408

NUT,M8, Cl 8

1шт.

37

1991458C1

JOINT

1шт.

38

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

892-11010

LOCK WASHER,M10

2шт.

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

39

1991369C1

PLATE

- mounting

1шт.

40

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

892-11010

LOCK WASHER,M10

1шт.

47

1271817C1

CIRCLIP,M9

RING - retaining

2шт.

48

1992476C1

PLATE

1шт.

50

1992752C1

BUSHING

2шт.

51

1991380C1

SEALING WASHER

RING - seal

2шт.
