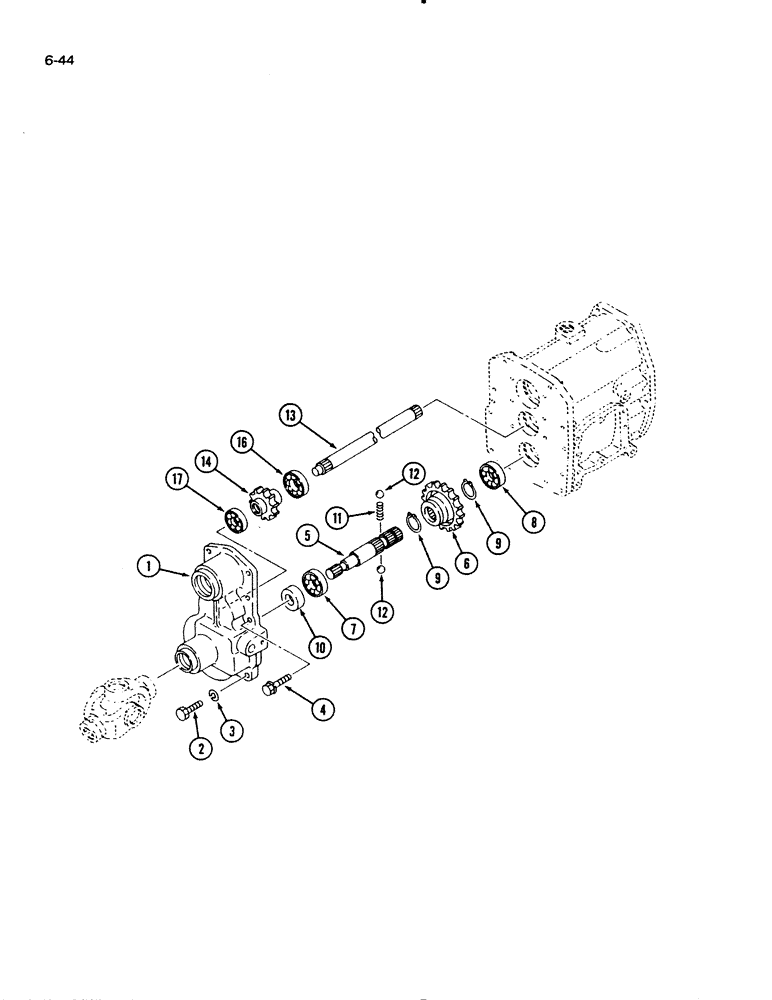

Запчасти Case IH 1130 (6-44) - PTO DRIVE GEARS, MFD TRACTOR, WITHOUT HYDROSTATIC DRIVE (06) - POWER TRAIN

1

1991991C1

CASE

HOUSING - gear, Includes: Ref. 1 - 3

1шт.

2

1273202C1

BOLT,Hex, M10 x 1.25 x 35mm

BOLT - shoulder

2шт.

3

892-11010

LOCK WASHER,M10

2шт.

4

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.25 x 30 mm

6шт.

892-11010

LOCK WASHER,M10

6шт.

5

1991992C1

SHAFT

1шт.

6

1991993C1

GEAR

- 31 tooth

1шт.

7

1271855C91

BEARING, BALL

BEARING ASSEMBLY - ball

1шт.

8

1271864C91

CRANKSHAFT BEARING

BEARING ASSEMBLY - ball

1шт.

9

933128R1

SNAP RING,M25, Ext

RING - retaining, external, 23 mm ID

2шт.

10

1273179C1

OIL SEAL

SEAL - oil

1шт.

11

1991426C1

SPRING

- compression

1шт.

12

1991378C1

BALL

- steel

2шт.

13

1991994C1

SHAFT

1шт.

14

1991995C1

GEAR

- 24 tooth

1шт.

16

1271858C91

BALL BEARING

BEARING ASSEMBLY - ball

1шт.

17

1273764C91

BALL BEARING

BEARING ASSEMBLY - ball

1шт.
