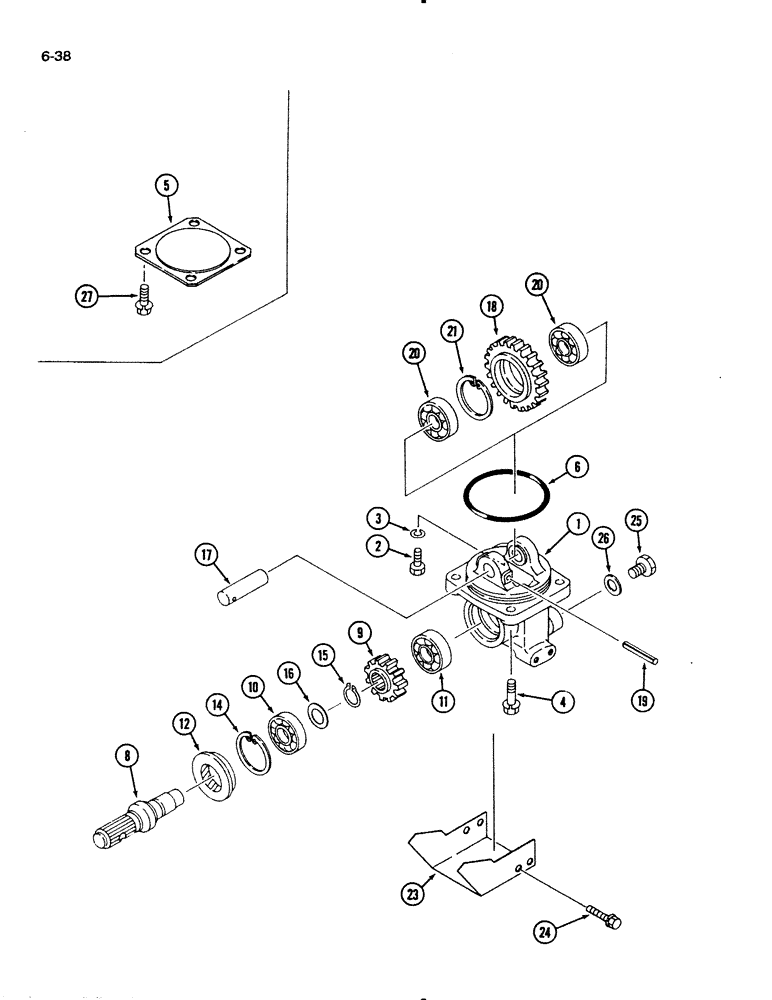

Запчасти Case IH 1130 (6-38) - MID PTO (06) - POWER TRAIN

1

1991943C1

CASE

HOUSING - mid-PTO

1шт.

2

99399C1

BOLT (SPREADER),Hex, M12 x 1.75 x 35mm

BOLT - hex, special

1шт.

3

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

3шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.

5

1991944C1

COVER

- housing (See Note)

1шт.

6

1991945C1

O-RING

1шт.

8

1991338C1

SHAFT

- mid PTO

1шт.

9

1991946C1

GEAR

- 23 tooth

1шт.

10

1271857C91

BEARING, BALL

BEARING ASSEMBLY - ball

1шт.

11

1271862C91

BEARING, BALL

BEARING ASSEMBLY - ball

1шт.

12

1273188C1

OIL SEAL

LEVER ASSEMBLY - PTO, Includes: Ref. 12 and 14

1шт.

14

933032R1

SNAP RING,M52, Int

RING - retaining, internal, 56 mm OD

1шт.

15

933128R1

SNAP RING,M25, Ext

RING - retaining, external, 23 mm ID

1шт.

16

1275063C1

THRUST WASHER

- thrust

1шт.

17

99117C1

SHAFT HOUSING

SHAFT - bearing

1шт.

18

1991947C1

GEAR

- 38 tooth

1шт.

19

932238R1

LOCK PIN,M5 x 45, Slotted

PIN - slotted spring, 5 x 45 mm

1шт.

20

1271862C91

BEARING, BALL

BEARING ASSEMBLY - ball

2шт.

21

933032R1

SNAP RING,M52, Int

RING - retaining, internal, 56 mm OD

1шт.

23

1991341C1

COVER

- mid PTO

1шт.

24

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

25

1992844C1

PLUG

1шт.

26

1963085C1

SEALING WASHER

- seal

1шт.

27

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 25 mm (See Note)

4шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, (See Note) M12

4шт.
