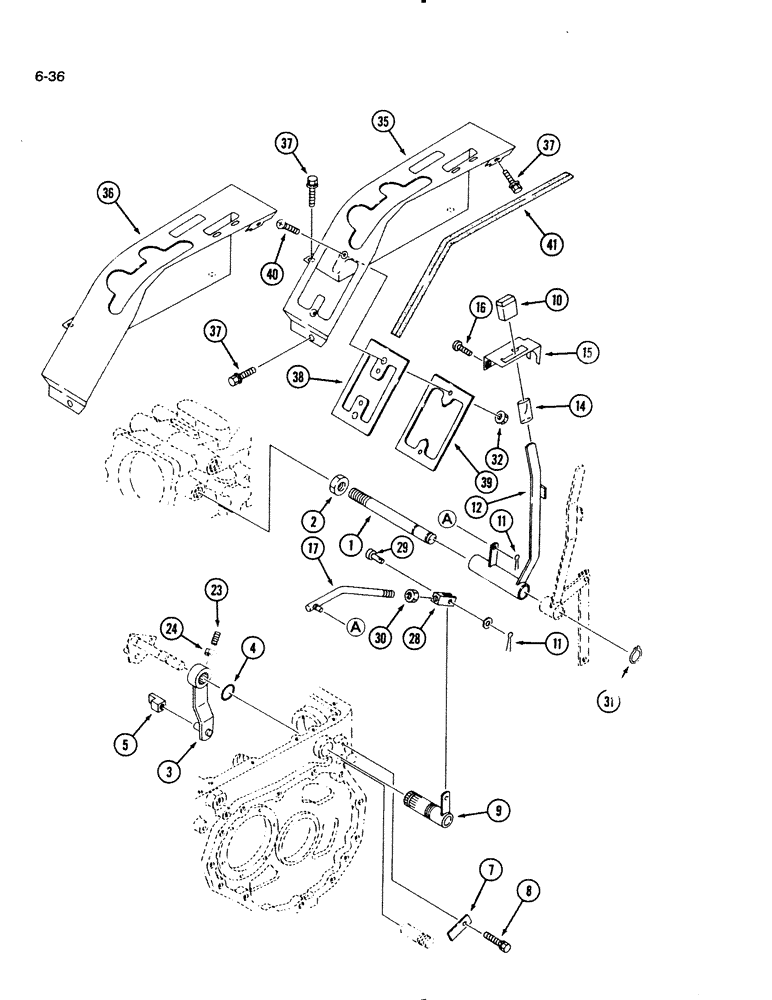

Запчасти Case IH 1130 (6-36) - PTO CONTROLS (06) - POWER TRAIN

1

1992645C1

DRIVE SHAFT

SHAFT - PTO lever

1шт.

2

825-11420

NUT,M20 x 1.5, Cl 8

- hex, 20 mm (Replaces 825-1420)

1шт.

3

1992646C1

LEVER

SHIFTER - PTO

1шт.

4

1269873C1

O-RING

O-RING - plug

1шт.

5

1991388C1

CENTERING RING

PIECE - shift

1шт.

7

1991389C1

PLATE

1шт.

8

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

892-11010

LOCK WASHER,M10

1шт.

9

1992647C1

ARM

- rear, PTO

1шт.

10

99326C1

KNOB

- PTO lever

1шт.

11

732-2516

COTTER PIN,M2.5 x 16

PIN - cotter, 2.5 x 16 mm

2шт.

1992650C1

LEVER

ASSEMBLY - PTO

1шт.

12

1992648C1

LEVER

- rear, PTO

1шт.

14

1992321C1

TUBE

1шт.

15

1992649C1

PLATE ASSY.

PLATE - rear, PTO

1шт.

16

540-702

SCREW,Cross Pan Hd, M6 x 12

- pan head cross recessed, 6 x 12 mm

2шт.

17

1992651C1

ROD

- PTO

1шт.

23

1992324C1

SCREW

1шт.

24

825-1408

NUT,M8, Cl 8

1шт.

28

1962677C1

JOINT TURNING

YOKE - shift arm

1шт.

29

1962996C1

CLEVIS PIN

PIN - clevis

1шт.

30

825-11410

NUT,M10 x 1.25, Cl 8

1шт.

31

933123R1

SNAP RING,M20, Ext

RING - retaining, external, 18 mm ID

1шт.

32

825-1406

NUT,M6, Cl 8

Shift consoles M6, Cl 8

2шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, , Shift Consoles M6

2шт.

35

1991970C1

LEVER

CONSOLE - shift, left (Mechanical drive), shift consoles

1шт.

36

1991971C1

LEVER

CONSOLE - shift, left (Hydrostatic drive), shift consoles

1шт.

37

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm, shift consoles

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Shift consoles M8

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm, Shift consoles

4шт.

38

1991972C1

GUIDE

- shift (Mechanical drive), shift consoles

1шт.

39

1991973C1

PLATE

(Mechanical drive), shift consoles

1шт.

40

30442R1

SCREW,Hex Flat Hd, M6 x 16, 4.8

Shift consoles Hex Flat Hd, M6 x 16, 4.8

2шт.

41

1992459C1

CUSHION

shift consoles

1шт.
