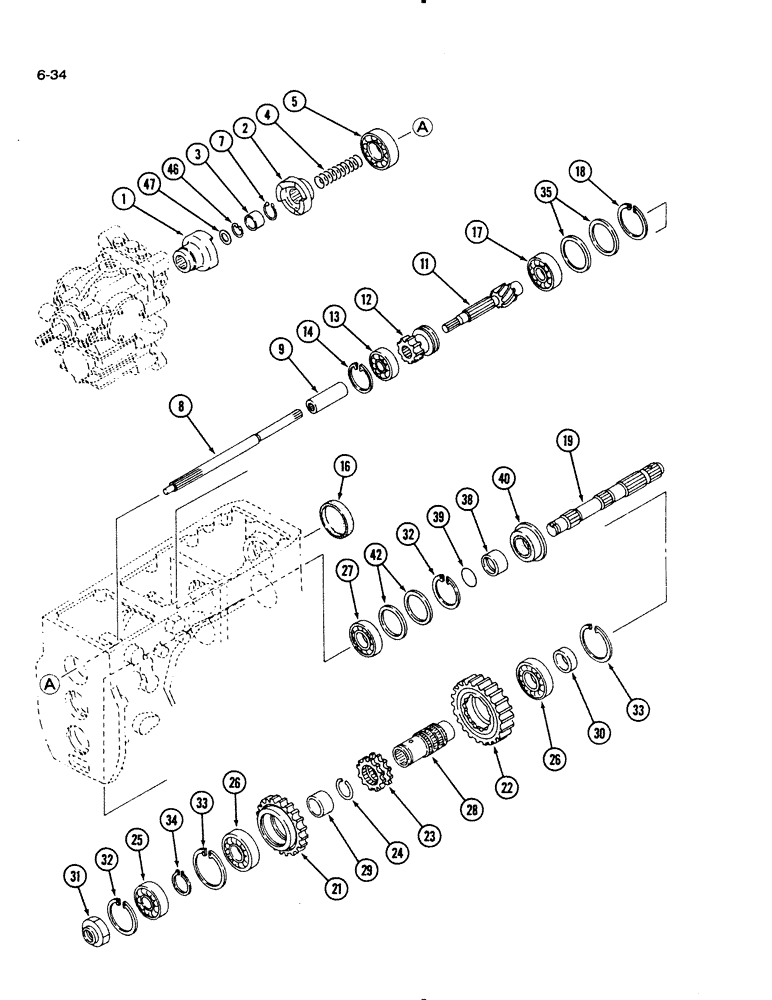

Запчасти Case IH 1130 (6-34) - PTO ASSEMBLY, HYDROSTATIC DRIVE (06) - POWER TRAIN

1

1991918C1

CLUTCH

- PTO

1шт.

Ref. 1, 1991918C1 CLUTCH uses 800-2120 internal snap ring Ref. 46.

1шт.

Ref. 1, 1991819C2 CLUTCH uses 1992864C1 hvy duty internal snap ring. Ref. NCM SB 00393.

1шт.

2

1269427C1

CLUTCH ASSEMBLY

CLUTCH - splined, 18 tooth

1шт.

3

1963609C1

BUSHING

- clutch shaft

1шт.

4

1269426C1

VALVE SPRING

SPRING - clutch

1шт.

5

1271864C91

CRANKSHAFT BEARING

BEARING ASSEMBLY - ball

1шт.

7

933128R1

SNAP RING,M25, Ext

RING - retaining, external, 23 mm ID

1шт.

8

1991919C1

SHAFT

1шт.

9

1991892C1

COLLAR

- bearing

1шт.

11

1991894C1

SHAFT

- drive, PTO

1шт.

12

1991895C1

GEAR

- 19 tooth

1шт.

13

1962986C1

BALL BEARING,25 mm ID x 62 mm OD x 17 mm

BEARING

1шт.

14

933108R1

SNAP RING,M62, Int

RING - retaining, internal, 66.74 mm OD

1шт.

16

1963185C1

SEAL ASSY.

CAP - rubber

1шт.

17

1991902C1

BALL BEARING

BEARING

1шт.

18

933076R1

SNAP RING,M72, Int

RING - retaining, internal, 76 mm OD

1шт.

19

1991897C1

SHAFT

- drive, PTO

1шт.

21

1991898C1

GEAR

- 46 tooth

1шт.

22

1991899C1

GEAR

- 48 tooth

1шт.

23

1991271C1

GEAR

- clutch

1шт.

24

1991272C1

RING

- retaining

1шт.

25

1962986C1

BALL BEARING,25 mm ID x 62 mm OD x 17 mm

BEARING

1шт.

26

1271859C91

BEARING, BALL

BEARING ASSEMBLY

2шт.

27

1963281C1

BEARING

1шт.

28

1991900C1

SHAFT

1шт.

29

1991274C1

COLLAR

1шт.

30

1992443C1

COLLAR

1шт.

31

1962038C1

NUT

- hex, special, 25 mm

1шт.

32

933108R1

SNAP RING,M62, Int

RING - retaining, internal, 66.74 mm OD

2шт.

33

933076R1

SNAP RING,M72, Int

RING - retaining, internal, 76 mm OD

2шт.

34

933029R1

SNAP RING,M35, Ext

RING - retaining, external, 32 mm

1шт.

1992444C1

SET

KIT - seal ring, Includes: Ref. 35

1шт.

35

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

35

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

38

1991275C1

BUSHING

1шт.

39

1269884C1

O-RING

O-RING - 30 mm ID

1шт.

40

1275073C1

OIL SEAL

SEAL - oil

1шт.

1273013C2

STRIPPER PACKAGE

SHIM KIT - power takeoff shaft, Includes: Ref. 42

1шт.

42

NSS

NOT SOLD SEPARAT

SHIM - PTO shaft

1шт.

42

NSS

NOT SOLD SEPARAT

SHIM - PTO shaft

1шт.

46

933845R1

RING,M20, Int

RING - retaining

1шт.

47

1962688C1

WASHER

- flat

1шт.
