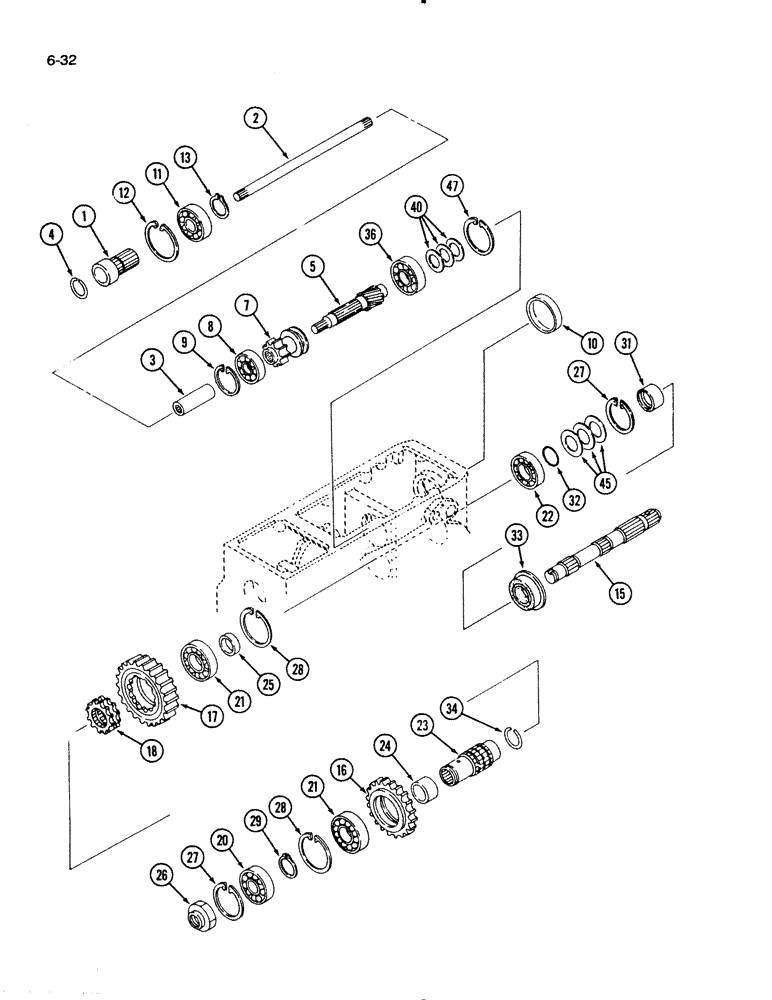

Запчасти Case IH 1130 (6-32) - PTO, MECHANICAL DRIVE (06) - POWER TRAIN

1

1991890C1

JOINT

COUPLING - shaft

1шт.

2

1991891C1

SHAFT

1шт.

3

1991892C1

COLLAR

- bearing

1шт.

4

1992574C1

RING

- retaining

1шт.

5

1991894C1

SHAFT

- PTO

1шт.

7

1991895C1

GEAR

- 19 tooth

1шт.

8

1962986C1

BALL BEARING,25 mm ID x 62 mm OD x 17 mm

BEARING

1шт.

9

933108R1

SNAP RING,M62, Int

RING - retaining, internal, 66.74 mm OD

1шт.

10

1963185C1

SEAL ASSY.

CAP - rubber

1шт.

11

1991284C1

BALL BEARING

BEARING ASSEMBLY

1шт.

12

933236R1

SNAP RING,M47, Int

RING - retaining

1шт.

13

933128R1

SNAP RING,M25, Ext

RING - retaining, external, 23 mm ID

1шт.

15

1991897C1

SHAFT

- drive, PTO

1шт.

16

1991898C1

GEAR

- 46 tooth

1шт.

17

1991899C1

GEAR

- 48 tooth

1шт.

18

1991271C1

GEAR

- clutch

1шт.

20

1962986C1

BALL BEARING,25 mm ID x 62 mm OD x 17 mm

BEARING - clutch

1шт.

21

1271859C91

BEARING, BALL

BEARING ASSEMBLY - ball

2шт.

22

1963281C1

BEARING

1шт.

23

1991900C1

SHAFT

1шт.

24

1991274C1

COLLAR

1шт.

25

1992443C1

COLLAR

1шт.

26

1962038C1

NUT

- hex, special, 25 mm

1шт.

27

933108R1

SNAP RING,M62, Int

RING - retaining, internal, 66.74 mm OD

2шт.

28

933076R1

SNAP RING,M72, Int

RING - retaining, internal, 76 mm OD

2шт.

29

933029R1

SNAP RING,M35, Ext

RING - retaining, external, 32 mm

1шт.

31

1991275C1

BUSHING

1шт.

32

1269884C1

O-RING

O-RING - 30 mm ID

1шт.

33

1275073C1

OIL SEAL

SEAL - oil

1шт.

34

1991272C1

RING

- retaining

1шт.

36

1991902C1

BALL BEARING

BEARING

1шт.

37

933076R1

SNAP RING,M72, Int

RING - retaining, internal, 76 mm OD

1шт.

40

1992444C1

SET

KIT - seal ring

1шт.

1273013C2

STRIPPER PACKAGE

SHIM KIT - shaft, PTO

1шт.

45

NSS

NOT SOLD SEPARAT

SHIM

1шт.

45

NSS

NOT SOLD SEPARAT

SHIM

1шт.
