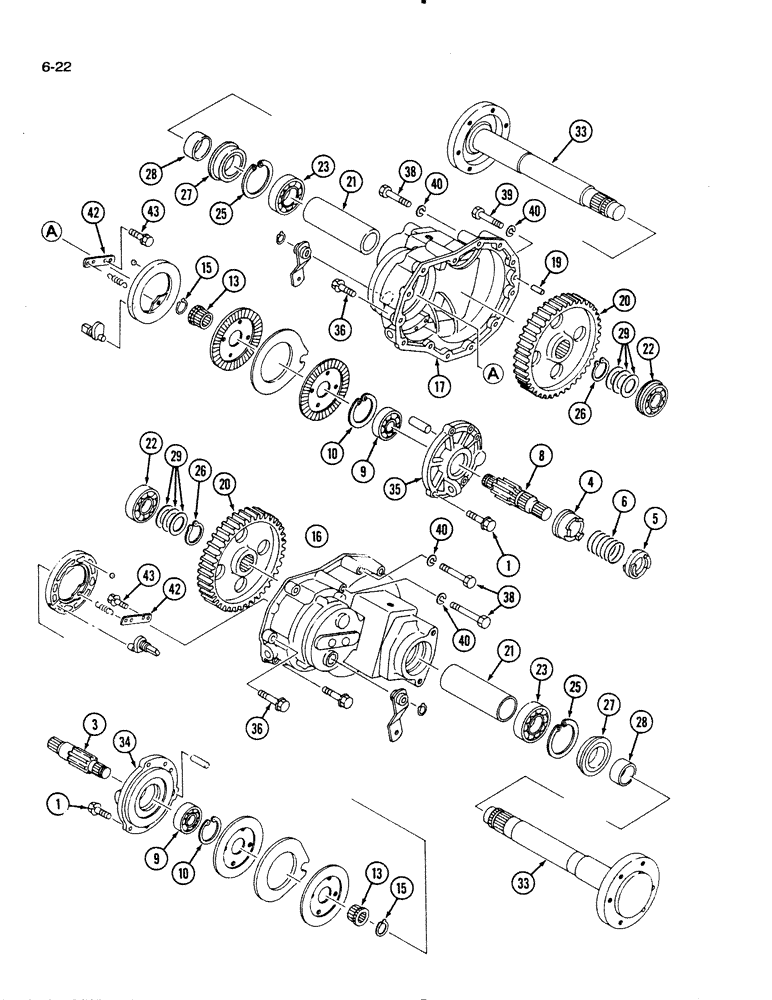

Запчасти Case IH 1130 (6-22) - REAR AXLE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
514-721
BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd
- hex, 10 mm - 1.25 x 30 mm
12шт.
892-11010
LOCK WASHER,M10
12шт.
3
1991934C1
SHAFT
- left
1шт.
4
1981378C1
HUB CAP
HUB - differential
1шт.
5
1981379C1
SPACER
- differential lock
1шт.
6
1981380C1
VALVE SPRING
SPRING - hub
1шт.
8
1991935C1
SHAFT
- right
1шт.
9
1991902C1
BALL BEARING
BEARING
2шт.
10
933076R1
SNAP RING,M72, Int
RING - retaining, internal, 76 mm OD
2шт.
13
1992450C1
BRAKE
HUB - brake
2шт.
15
933086R1
SNAP RING,M30, Ext
RING - retaining, external, 28 mm
2шт.
16
1991937C1
CASE
HOUSING - left
1шт.
17
1991938C1
CASE
HOUSING - right
1шт.
19
837-10020
DOWEL,M10 x 20
M10 x 20
4шт.
20
1991939C1
GEAR
- 68 tooth
2шт.
21
1991940C1
COLLAR
- gear
2шт.
22
1991941C1
BALL BEARING,35 mm ID x 72 mm OD x 17 mm
2шт.
23
1271861C91
BALL BEARING
ASSEMBLY - ball
2шт.
25
933077R1
SNAP RING,M90, Int
RING - retaining, internal, 96 mm OD
2шт.
26
933129R1
SNAP RING,M48, Ext
RING - retaining, external, 44 mm ID
2шт.
27
1273189C1
OIL SEAL
SEAL - oil
2шт.
28
1269556C1
SPACER
- axle
2шт.
29
1963302C1
SHIM KIT
KIT - shim
1шт.
33
1991942C1
SHAFT
- axle
2шт.
34
1992451C1
NOZZLE HOLDER
HOLDER - left
1шт.
35
1992452C1
NOZZLE HOLDER
HOLDER - right
1шт.
36
614-12040
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
4шт.
892-11012
LOCK WASHER,M12
WASHER, LOCK, M12
4шт.
37
614-12050
BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd
2шт.
892-11012
LOCK WASHER,M12
WASHER, LOCK, M12
2шт.
38
814-12080
BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8
8шт.
39
828-12090
BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9
- hex, 12 - 1.75 x 90 mm, class 10.9 (Replaces 814-12090)
6шт.
40
896-11012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
(Replaces 892-11012) M13.5 x 24.5 x 3, HT
18шт.
42
1992453C1
HOOK
2шт.
43
614-8020
BOLT,Hex, M8 x 1.25 x 20mm
- hex, 8 x 20 mm
4шт.
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
4шт.
Выбрано товаров: 36
