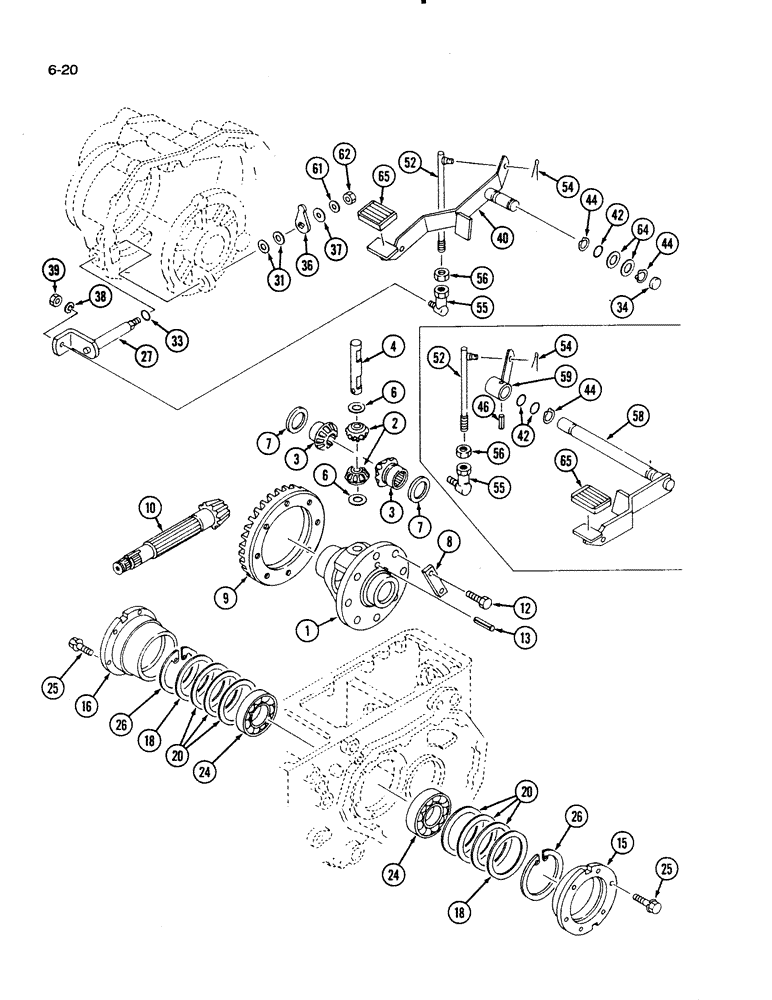

Запчасти Case IH 1130 (6-20) - FINAL DRIVE (06) - POWER TRAIN

1992632C1

CASE ASSY.

HOUSING ASSEMBLY - differential (2 Wheel Drive Tractor)

1шт.

1991920C1

GEAR

HOUSING ASSEMBLY - differential (MFD Tractor), Includes: Ref. 1 - 13

1шт.

1

1981377C1

CASE

HOUSING - differential (MFD Tractor)

1шт.

2

NSS

NOT SOLD SEPARAT

PINION - differential

2шт.

3

NSS

NOT SOLD SEPARAT

GEAR - side

2шт.

4

1269596C1

SHAFT HOUSING

SHAFT - side gears

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - thrust

2шт.

7

NSS

NOT SOLD SEPARAT

WASHER - thrust

2шт.

8

1269595C1

BAR

STRAP - locking

4шт.

1992633C1

GEAR-SET

GEAR SET - ring and pinion (2 Wheel Drive Tractor)

1шт.

1991921C1

SHAFT

GEAR SET - ring and pinion (MFD Tractor), Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT - pinion

1шт.

12

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

8шт.

13

838-1640

LOCK PIN,M6 x 40, Slotted

PIN - spring

1шт.

15

1991922C1

GUARD

FLANGE - bearing, left

1шт.

16

1991923C1

GUARD

FLANGE - bearing, right

1шт.

18

1991924C1

SEAL

- bearing

2шт.

20

1991925C1

SET

KIT - shim

1шт.

24

1265194C91

BALL BEARING,60 mm ID x 95 mm OD x 18 mm

BEARING ASSEMBLY

2шт.

25

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 25 mm

12шт.

26

933234R1

SNAP RING,M95, Int

RING - retaining, internal, 100 mm

2шт.

27

1992447C1

SHIFTING UNIT

SHIFTER

1шт.

31

1269551C1

SET

SHIM KIT - lever

1шт.

33

1273523C1

O-RING

O-RING - 12 mm ID

1шт.

34

1962638C1

SEAL

CAP - seal (Mechanical drive)

1шт.

36

1991928C1

ARM

1шт.

37

896-16010

WASHER,11mm ID x 24mm OD x 3mm Thk

- flat, 11 x 24 x 3 mm

1шт.

38

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

39

825-1408

NUT,M8, Cl 8

1шт.

40

1991929C1

PEDAL

- differential lock (Mechanical drive)

11шт.

42

1288101C1

O-RING

O-RING - 16 mm ID

1шт.

44

933123R1

SNAP RING,M20, Ext

RING - retaining, external, 18 mm ID

1шт.

46

838-1840

LOCK PIN,8mm OD x 40mm L, Slotted

PIN - spring (Hydrostatic drive)

1шт.

52

1991930C1

ROD

1шт.

54

732-3220

COTTER PIN,M3.2 x 20

PIN - cotter, 3.2 x 20 mm

1шт.

55

1991931C1

JOINT

ASSEMBLY - ball

1шт.

56

825-11410

NUT,M10 x 1.25, Cl 8

1шт.

58

1991932C1

PEDAL

- differential lock (Hydrostatic drive)

1шт.

59

1991933C1

ARM

- differential (Hydrostatic drive)

1шт.

61

892-11010

LOCK WASHER,M10

1шт.

62

825-1410

NUT,M10, Cl 8

1шт.

64

1992320C1

SET

KIT - shim (Mechanical drive)

1шт.

65

1992272C1

PEDAL

COVER - pedal

1шт.
