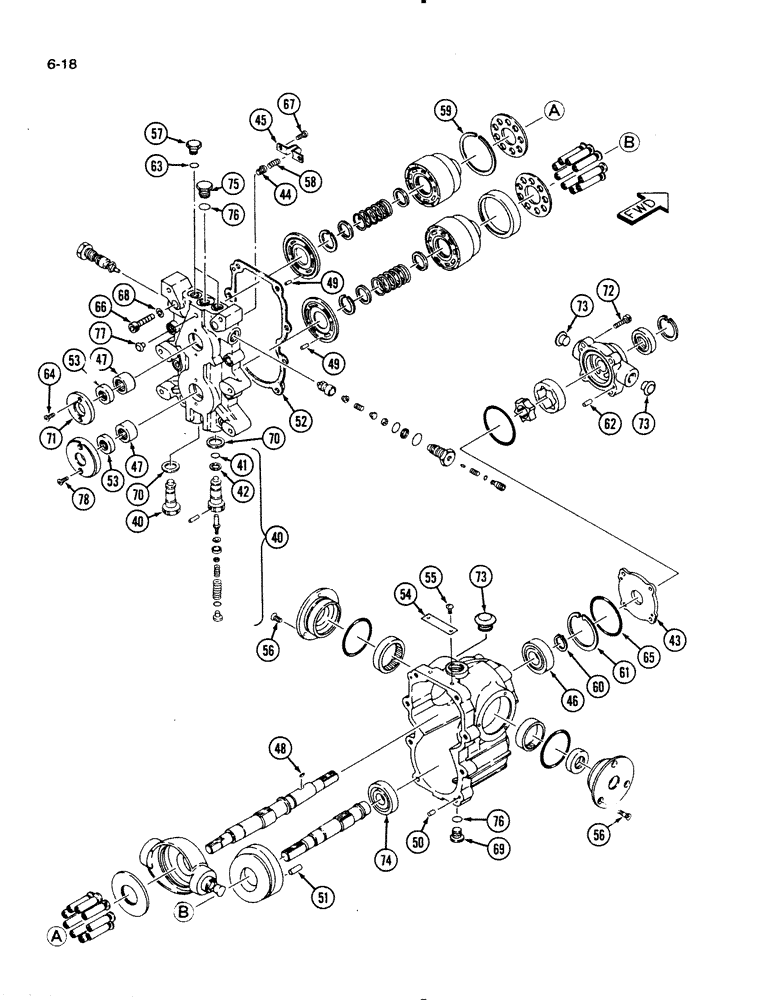

Запчасти Case IH 1130 (6-18) - HYDROSTATIC MOTOR ASSEMBLY (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1991903C1
UNIT
MOTOR ASSEMBLY - hydrostatic (Continued)
1шт.
40
1991545C1
VALVE
ASSEMBLY
2шт.
41
1273793C1
O-RING
O-RING - 14 mm ID
1шт.
Part of Seal Kit P/N 1992235C1
1шт.
42
1992237C1
BACK-UP RING
RING - backup
1шт.
Part of Seal Kit P/N 1992235C1
1шт.
43
1991546C1
PLATE
1шт.
44
1991816C1
VALVE
1шт.
45
1991777C1
RETAINER
HOLDER - spring
1шт.
46
1991547C1
BALL BEARING
- ball
1шт.
47
1991548C1
NEEDLE BEARING
- needle
2шт.
48
1991679C1
KEY
- shaft
1шт.
49
1991778C1
PIN
- dowel
2шт.
50
1991926C1
PIN
- dowel
2шт.
51
1991927C1
PIN
1шт.
52
1992064C1
GASKET
- housing
1шт.
Part of Seal Kit P/N 1992235C1
1шт.
53
1991986C1
OIL SEAL
- oil
2шт.
Part of Seal Kit P/N 1992235C1
1шт.
54
NSS
NOT SOLD SEPARAT
PLATE - name
1шт.
55
1992110C1
SCREW
- drive
2шт.
56
30434R1
SCREW,Hex Flat Hd, M6 x 12, 4.8
- 6 x 12 mm
6шт.
57
1992102C1
PLUG
2шт.
58
1991798C1
SPRING
1шт.
59
1992103C1
RING
- snap
1шт.
60
933128R1
SNAP RING,M25, Ext
RING - retaining, external, 23 mm ID
1шт.
61
933108R1
SNAP RING,M62, Int
RING - retaining, internal, 66.74 mm OD
1шт.
62
1992197C1
DOWEL
PIN - dowel
2шт.
63
1992216C1
O-RING
2шт.
Part of Seal Kit P/N 1992235C1
1шт.
64
843-1512
SCREW,Flat , M5 x 12mm, Cl 4.8
- flat head, cross recess, 5 x 10 mm
2шт.
65
1992219C1
O-RING
1шт.
Part of Seal Kit P/N 1992235C1
1шт.
66
863-10040
HEX SOC SCREW,M10 x 40mm, Cl 12.9
SCREW, Hex Soc Hd, M10 x 40, 12.9
8шт.
67
863-6010
HEX SOC SCREW,M6 x 10mm, Cl 12.9
BOLT, Hex Soc Hd, M6 x 10, 12.9
2шт.
68
892-11010
LOCK WASHER,M10
8шт.
69
1992220C1
PLUG
1шт.
70
1992106C1
SEALING WASHER
- seal
2шт.
Part of Seal Kit P/N 1992235C1
1шт.
71
1992227C1
FLANGE
1шт.
72
863-8035
HEX SOC SCREW,M8 x 35mm, Cl 12.9
BOLT
4шт.
73
1992230C1
PLUG
2шт.
74
1992232C1
BALL BEARING
- ball
1шт.
75
1992261C1
PLUG
- housing
1шт.
76
1273524C1
O-RING
O-RING - 14 mm ID
2шт.
Part of Seal Kit P/N 1992235C1
1шт.
77
1992234C1
PLUG
1шт.
78
843-1516
SCREW,Flat , M5 x 16mm, Cl 4.8
- flat head, cross recess, 5 x 16 mm
2шт.
1992235C1
SEAL KIT
- seal, Includes: Ref. 41, 42, 52, 53, 63, 65, 70 and 76
1шт.
Выбрано товаров: 49
