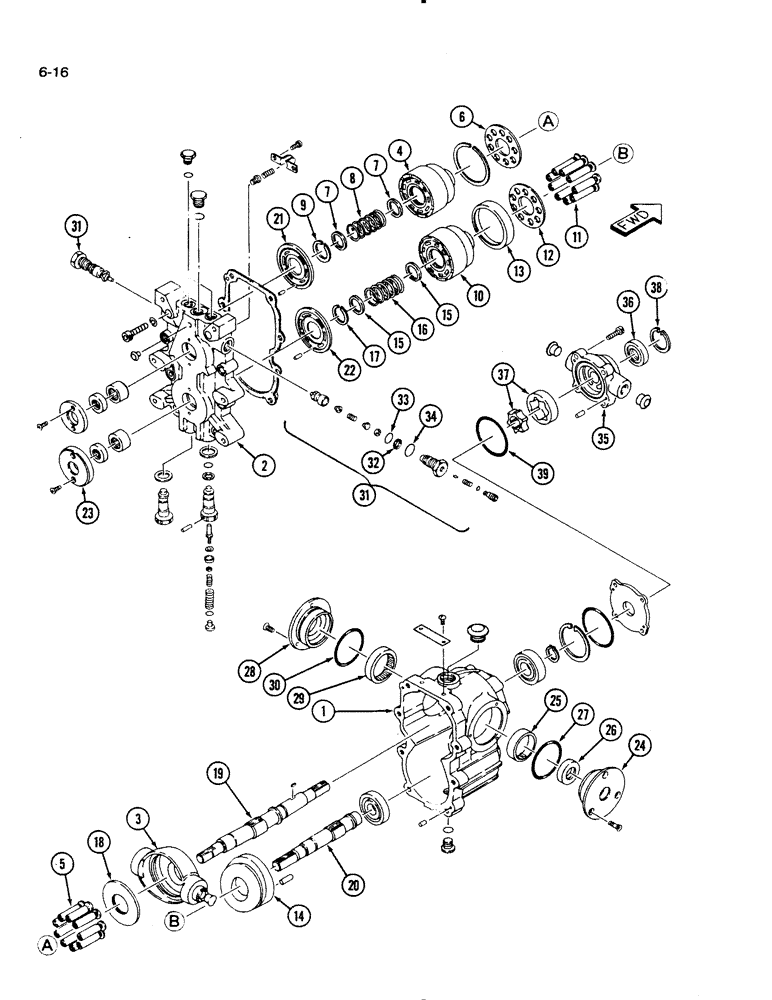

Запчасти Case IH 1130 (6-16) - HYDROSTATIC MOTOR ASSEMBLY (06) - POWER TRAIN

1991903C1

UNIT

MOTOR ASSEMBLY - hydrostatic, Includes: Ref. 1 - 78

1шт.

1

1991053C1

HOUSING

- motor

1шт.

2

1991067C1

BLOCK

- port

1шт.

3

1991081C1

PLATE ASSY.

PLATE ASSEMBLY - swash

1шт.

1992255C1

CYLINDER BLOCK

BLOCK ASSEMBLY - cylinder, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON - cylinder

18шт.

6

1991090C1

BAND

PLATE - piston retainer

1шт.

7

NSS

NOT SOLD SEPARAT

HOLDER - spring

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - cylinder:

1шт.

9

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

1992256C1

CYLINDER BLOCK

BLOCK ASSEMBLY - cylinder, Includes: Ref. 10 - 17

1шт.

10

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON - cylinder

18шт.

12

1991090C1

BAND

PLATE - piston retainer

1шт.

13

NSS

NOT SOLD SEPARAT

RING - retainer

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE - swash

1шт.

15

NSS

NOT SOLD SEPARAT

HOLDER - spring

2шт.

16

NSS

NOT SOLD SEPARAT

SPRING - cylinder

1шт.

17

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

18

1991089C1

PLATE

- thrust

1шт.

19

1991103C1

SHAFT

1шт.

20

1991105C1

SHAFT

1шт.

21

1991125C1

PLATE

- valve

1шт.

22

1991158C1

PLATE

- valve

1шт.

23

1991180C1

SHIM

FLANGE

1шт.

1992258C1

COVER

ASSEMBLY - housing, Includes: Ref. 24 - 27

1шт.

24

NSS

NOT SOLD SEPARAT

COVER - housing

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

26

1991731C1

OIL SEAL

SEAL - oil

1шт.

27

1962516C1

O-RING

O-RING - 65 mm ID

1шт.

1992259C1

COVER

ASSEMBLY - housing, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

COVER - housing

1шт.

29

NSS

NOT SOLD SEPARAT

BEARING - needle

1шт.

30

1992214C1

O-RING

1шт.

31

1991187C1

VALVE

ASSEMBLY, Includes: Ref. 32 - 34

2шт.

32

1992237C1

BACK-UP RING

RING - backup

1шт.

33

1273793C1

O-RING

O-RING - 14 mm ID

1шт.

34

1992380C1

O-RING,0.739" ID x 0.879" OD x 0.07"

1шт.

1992257C1

PUMP

ASSEMBLY - charge

1шт.

35

NSS

NOT SOLD SEPARAT

HOUSING - pump, Includes: Ref. 35 - 78

1шт.

36

1991731C1

OIL SEAL

SEAL - oil

1шт.

37

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY - pump

1шт.

38

933233R1

SNAP RING,M45, Int

RING - snap

1шт.

39

1992219C1

O-RING

1шт.
