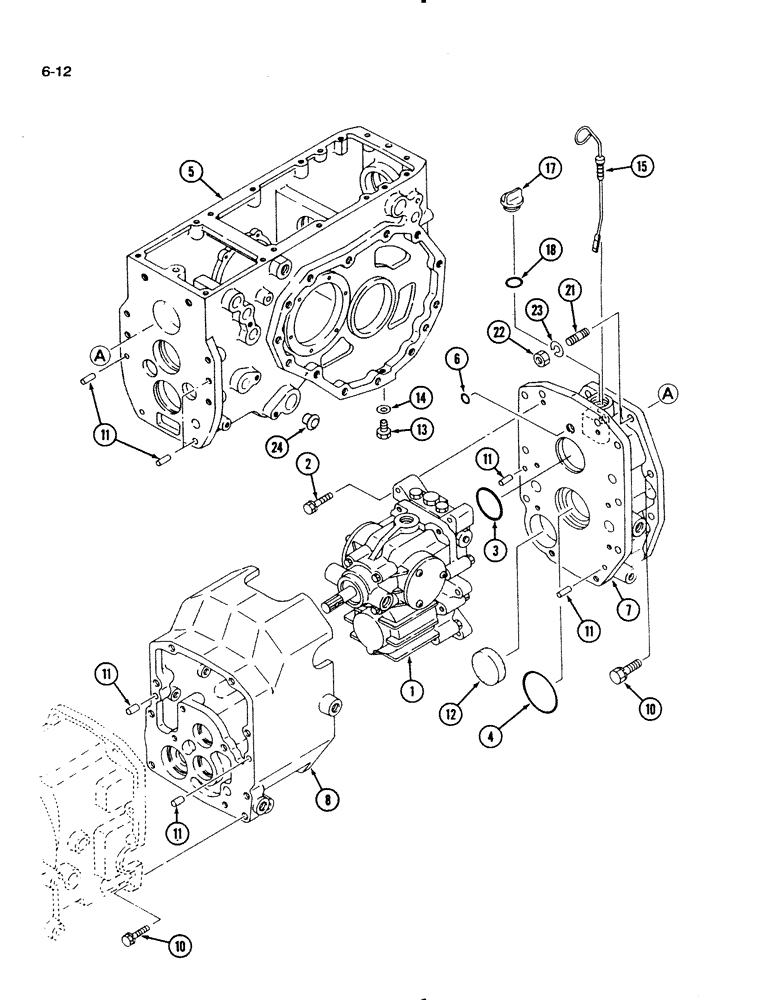

Запчасти Case IH 1130 (6-12) - TRANSMISSION HOUSING AND COVERS, HYDROSTATIC DRIVE (06) - POWER TRAIN

1

REF

INSTRUCTION

MOTOR - hydrostatic drive (See Page 6-17)

1шт.

2

514-722

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

- hex

6шт.

892-11010

LOCK WASHER,M10

6шт.

3

1962520C1

O-RING

- 56 mm ID

1шт.

4

1962509C1

O-RING

O-RING - 70 mm ID

1шт.

5

1991852C1

CASE

HOUSING - transmission

1шт.

6

1273524C1

O-RING

O-RING - 14 mm ID

1шт.

7

1991904C1

CASE

HOUSING - transmission, center

1шт.

8

1991905C1

COVER

- motor (MFD tractor)

1шт.

8

1991906C1

COVER

- motor (2 Wheel Drive tractor)

1шт.

10

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

24шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

24шт.

11

837-10020

DOWEL,M10 x 20

M10 x 20

6шт.

12

1963242C1

SEAL ASSY.

PLUG - rubber (2 Wheel Drive tractor)

1шт.

13

1992844C1

PLUG

2шт.

14

1282713C1

SEALING WASHER

SEAL - washer

2шт.

15

1992445C1

DIPSTICK

- oil level

1шт.

17

1991908C1

PLUG

CAP - oil

1шт.

18

1269877C1

O-RING

- 28 mm ID

1шт.

21

1991917C1

STUD

2шт.

22

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

23

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

24

1962638C1

SEAL

CAP - seal (Without MFD)

1шт.
