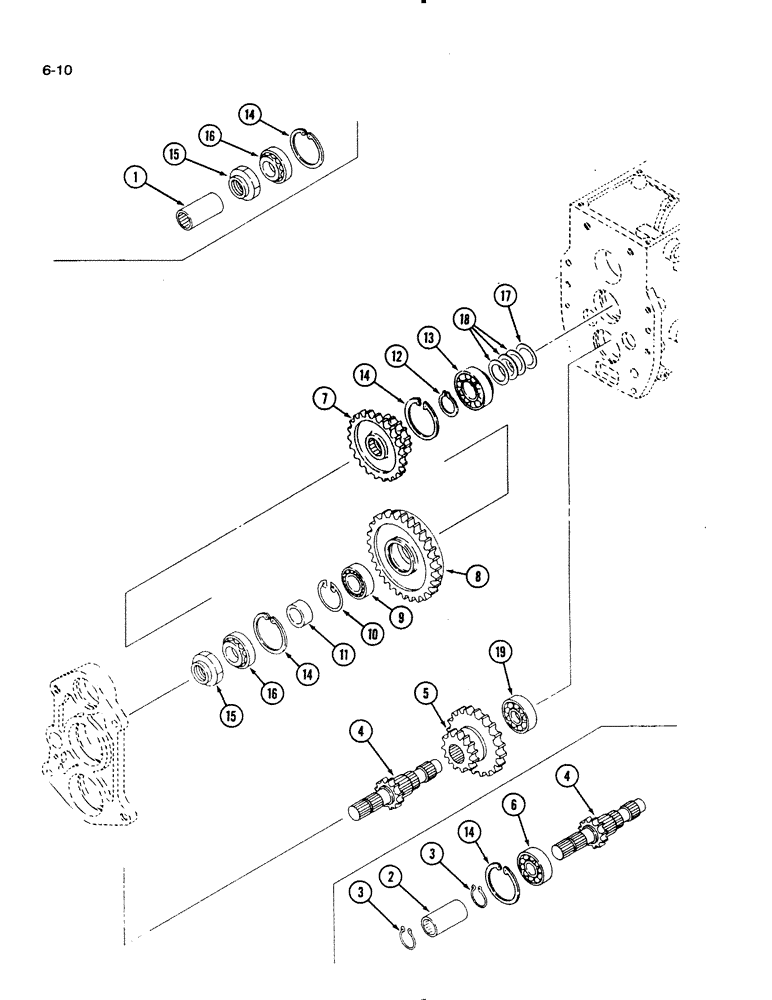

Запчасти Case IH 1130 (6-10) - RANGE GEARS, MECHANICAL DRIVE (06) - POWER TRAIN

1

1269531C1

COUPLING

- pinion shaft

1шт.

2

1991255C1

COUPLING

- shaft (MFD Tractor)

1шт.

3

933128R1

SNAP RING,M25, Ext

RING - retaining, external, 23 mm ID

1шт.

4

1991885C1

SHAFT

1шт.

5

1991886C1

GEAR

- 23 and 36 tooth

1шт.

6

1271864C91

CRANKSHAFT BEARING

BEARING ASSEMBLY - ball

2шт.

7

1991887C1

GEAR

- 19 and 32 tooth

1шт.

8

1991888C1

GEAR

- 43 tooth

1шт.

9

1271857C91

BEARING, BALL

BEARING ASSEMBLY - ball

1шт.

10

933032R1

SNAP RING,M52, Int

RING - retaining, internal, 56 mm OD

1шт.

11

1991889C1

COLLAR

- bearing

1шт.

12

933086R1

SNAP RING,M30, Ext

RING - retaining, external, 28 mm

1шт.

13

1273014C92

TAPERED BEARING

BEARING ASSEMBLY

1шт.

14

933108R1

SNAP RING,M62, Int

RING - retaining, internal, 66.74 mm OD

2шт.

15

1962038C1

NUT

- hex, special, 25 mm

1шт.

16

1962453C2

TAPERED BEARING

BEARING - ball

1шт.

1273012C1

STRIPPER PACKAGE

SHIM KIT

1шт.

17

1962992C1

SHIM

Includes: Ref. 18

1шт.

18

NSS

NOT SOLD SEPARAT

SHIM

1шт.

18

NSS

NOT SOLD SEPARAT

SHIM

1шт.

18

NSS

NOT SOLD SEPARAT

SHIM

1шт.
