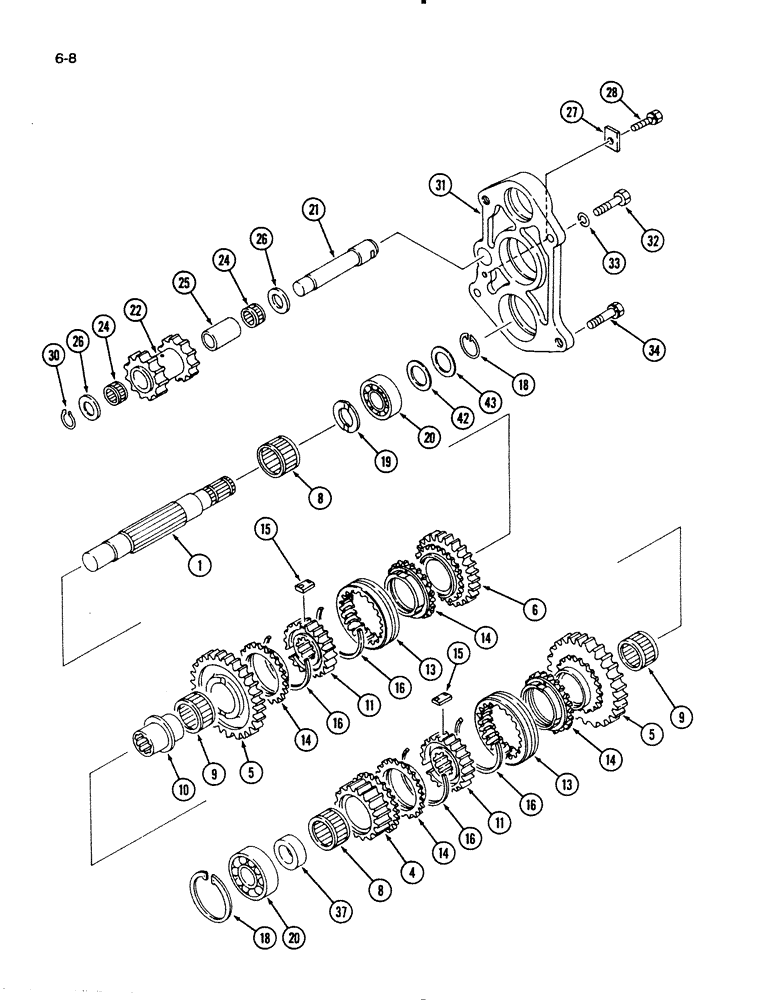

Запчасти Case IH 1130 (6-08) - COUNTERSHAFT, MECHANICAL DRIVE (06) - POWER TRAIN

1

1991863C1

SHAFT

- main change

1шт.

4

1991864C1

GEAR

- 26 tooth

1шт.

5

1991865C1

GEAR

- 35 tooth

2шт.

6

1991866C1

GEAR

- 31 tooth

1шт.

8

1991867C1

NEEDLE BEARING

2шт.

9

1273332C91

NEEDLE BEARING

ASSEMBLY - needle

2шт.

10

1991868C1

RETAINER

- bearing

1шт.

11

1991243C1

HUB

- gear

2шт.

13

1269516C1

GEAR WHEEL

GEAR - 36 tooth

2шт.

14

1282619C1

SYNCHRONIZER

- transmission

4шт.

15

1282620C1

KEY

- gear

6шт.

16

1282621C1

VALVE SPRING

SPRING - retaining

4шт.

18

933108R1

SNAP RING,M62, Int

RING - retaining, internal, 66.74 mm OD

2шт.

19

1273579C1

WASHER

- grooved, 42 mm OD

1шт.

20

1271864C91

CRANKSHAFT BEARING

BEARING ASSEMBLY - ball

2шт.

21

1991870C1

SHAFT

- reverse

1шт.

22

1991871C1

GEAR

- 17 and 18 tooth

1шт.

24

1273327C91

NEEDLE BEARING

BEARING ASSEMBLY - needle

2шт.

25

1991872C1

COLLAR

- bearing

1шт.

26

1991247C1

SLEEVE CYLINDER

SHIM - bearing

2шт.

27

1273579C1

WASHER

PLATE - retaining

1шт.

28

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 x 20 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

30

933123R1

SNAP RING,M20, Ext

RING - retaining, external, 18 mm ID

1шт.

31

1991874C1

COVER

- housing

1шт.

32

1273202C1

BOLT,Hex, M10 x 1.25 x 35mm

BOLT - shoulder

2шт.

33

892-11010

LOCK WASHER,M10

2шт.

34

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.25 x 30 mm

2шт.

892-11010

LOCK WASHER,M10

2шт.

37

1991875C1

COLLAR

KIT - collar

1шт.

1273013C2

STRIPPER PACKAGE

SHIM KIT - countershaft

1шт.

42

NSS

NOT SOLD SEPARAT

SHIM

1шт.

43

NSS

NOT SOLD SEPARAT

SHIM

1шт.
