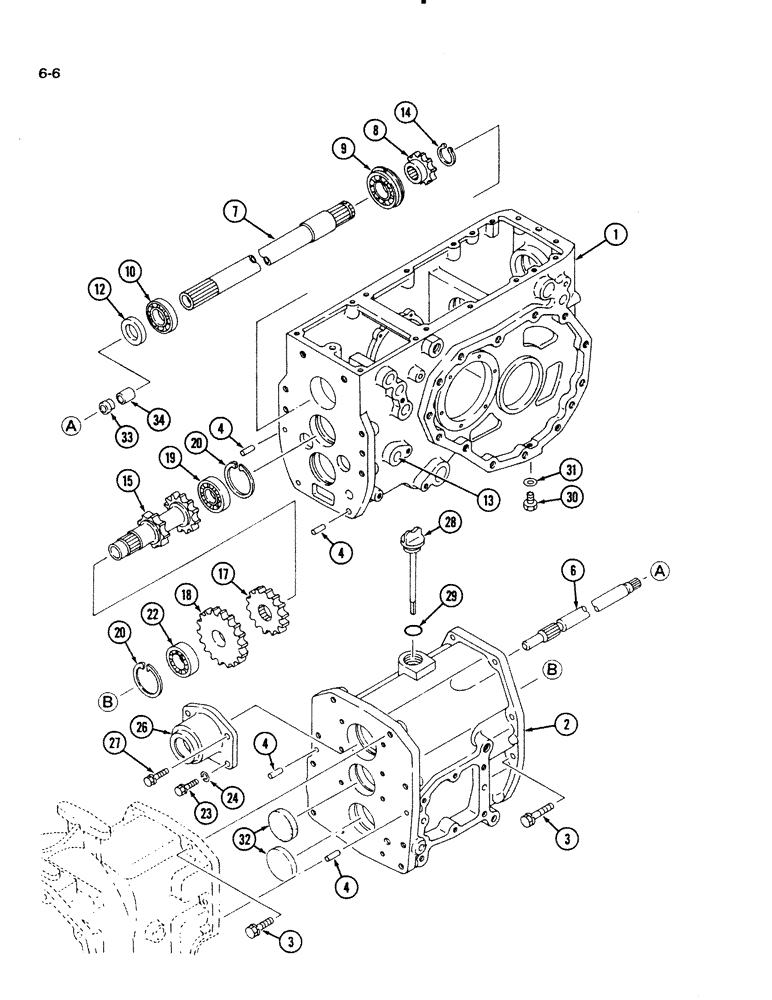

Запчасти Case IH 1130 (6-06) - TRANSMISSION HOUSINGS AND MAIN DRIVE SHAFT, MECHANICAL DRIVE (06) - POWER TRAIN

1

1991852C1

CASE

HOUSING - transmission

1шт.

2

1991853C1

HOUSING

- transmission, center

1шт.

3

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

16шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

16шт.

4

837-10020

DOWEL,M10 x 20

M10 x 20

4шт.

6

1991854C1

SHAFT

- main

1шт.

7

1992440C1

SHAFT

- drive

1шт.

8

1991856C1

GEAR

- 20 tooth

1шт.

9

1992438C1

BALL BEARING,35 mm ID x 72 mm OD x 17 mm

1шт.

10

1992439C1

BALL BEARING

BEARING ASSEMBLY

1шт.

12

1273182C1

OIL SEAL

SEAL - oil

1шт.

13

1962638C1

SEAL

CAP - seal

1шт.

14

933029R1

SNAP RING,M35, Ext

RING - retaining, external, 32 mm

1шт.

15

1992441C1

GEAR

- 19 and 24 tooth

1шт.

Use on 2 wheel drive tractor only

1шт.

15

1991857C1

GEAR

- 19 and 24 tooth

1шт.

Used on MFD tractor only

1шт.

17

1991858C1

GEAR

- 29 tooth

1шт.

18

1991859C1

GEAR

- 34 tooth

1шт.

19

1271858C91

BALL BEARING

BEARING ASSEMBLY - ball

1шт.

20

933108R1

SNAP RING,M62, Int

RING - retaining, internal, 66.74 mm OD

2шт.

22

1963281C1

BEARING

1шт.

23

1273202C1

BOLT,Hex, M10 x 1.25 x 35mm

BOLT - shoulder

2шт.

Use on 2 wheel drive tractor only

1шт.

24

892-11010

LOCK WASHER,M10

2шт.

Use on 2 wheel drive tractor only

1шт.

26

1991860C1

COVER

1шт.

Use on 2 wheel drive tractor only

1шт.

27

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.25 x 30 mm

2шт.

Use on 2 wheel drive tractor only

1шт.

892-11010

LOCK WASHER,M10

2шт.

Use on 2 wheel drive tractor only

1шт.

28

1288410C2

GAUGE ASSY.

PLUG - oil

1шт.

29

1269877C1

O-RING

- 28 mm ID

1шт.

30

1992844C1

PLUG

2шт.

31

1963085C1

SEALING WASHER

- seal

2шт.

32

1963242C1

SEAL ASSY.

PLUG - rubber

2шт.

Use on 2 wheel drive tractor only

1шт.

33

1991861C1

OIL SEAL

SEAL - oil

1шт.

34

1991862C1

BUSHING

1шт.
