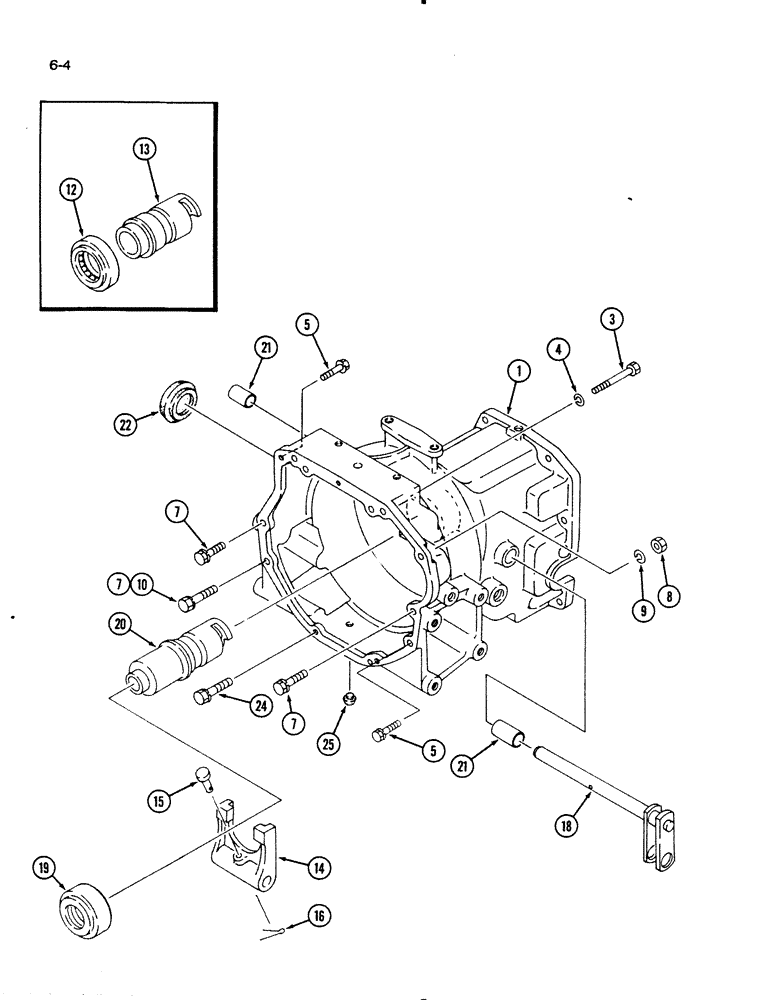

Запчасти Case IH 1130 (6-04) - CLUTCH HOUSING (06) - POWER TRAIN

1

1991843C1

CLUTCH

HOUSING - clutch (Mechanical drive)

1шт.

1

1991844C1

CLUTCH

HOUSING - clutch (Hydrostatic drive)

1шт.

3

514-854

BOLT,Hex, M12 x 1.25 x 100mm, Cl 8.8, Full Thd

2шт.

4

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

5

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

892-11010

LOCK WASHER,M10

2шт.

7

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 12 mm - 1.25 x 30 mm (1130 Tractor)

2шт.

7

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 12 mm - 1.25 x 30 mm (1140 Tractor)

4шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

8

825-1410

NUT,M10, Cl 8

1шт.

9

892-11010

LOCK WASHER,M10

1шт.

10

514-855

BOLT,Hex, M12 x 1.25 x 50mm, Cl 8.8

2шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

12

1991845C1

BALL BEARING

BEARING - clutch release (Mechanical drive)

1шт.

13

1991224C1

HUB

- clutch release (Mechanical drive)

1шт.

14

1991225C1

LEVER

FORK - clutch release

1шт.

15

1992842C1

CLEVIS PIN

PIN - clevis

1шт.

16

732-2516

COTTER PIN,M2.5 x 16

PIN - cotter, 2.5 x 16 mm

1шт.

18

1991226C1

SHAFT

- clutch release

1шт.

19

1273237C91

BEARING,40mm ID x 70mm OD x 20mm W

ASSEMBLY - clutch release (Hydrostatic drive)

1шт.

20

1991848C1

HUB

- clutch release (Hydrostatic drive)

1шт.

21

1963609C1

BUSHING

- clutch shaft

2шт.

22

1992314C1

CAP

PLUG - housing

1шт.

24

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

892-11010

LOCK WASHER,M10

1шт.

25

1282586C1

CYLINDER END CAP

CAP - housing

1шт.
