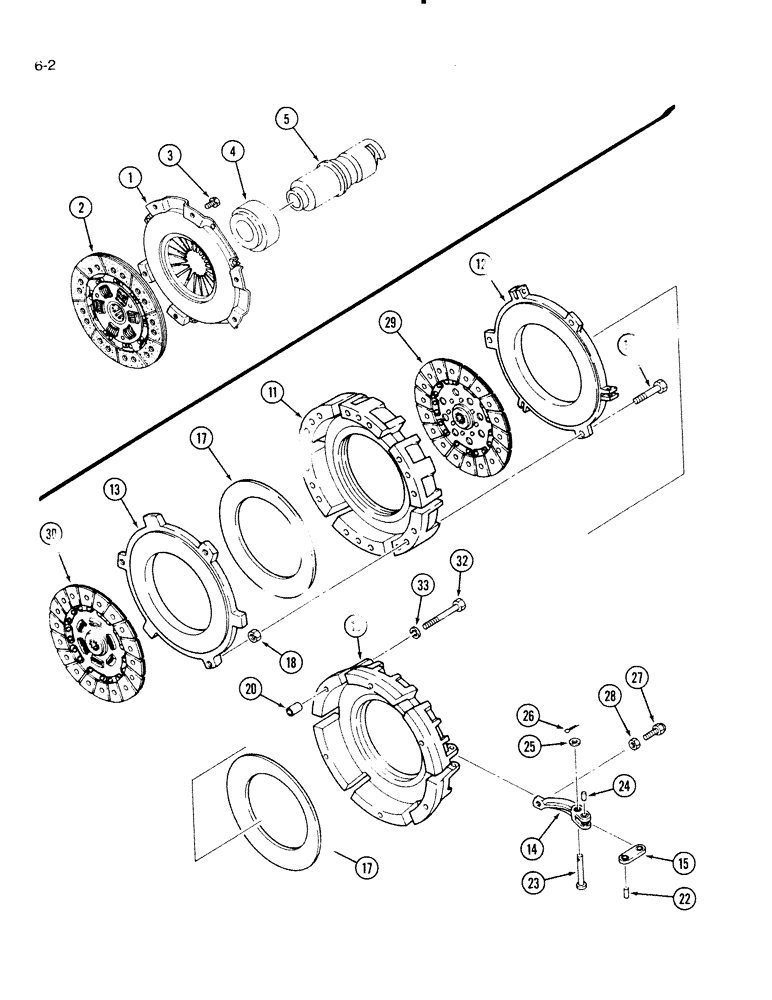

Запчасти Case IH 1130 (6-02) - ENGINE CLUTCH AND COVER (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
1991849C1
COVER ASSY
COVER ASSEMBLY - clutch, hydrostatic drive
1шт.
2
1991850C1
CLUTCH DISC
DISC - clutch, hydrostatic drive
1шт.
3
614-8020
BOLT,Hex, M8 x 1.25 x 20mm
- hex, 8 x 20 mm, Hydrostatic drive
6шт.
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, , Hydrostatic drive M8
6шт.
4
REF
INSTRUCTION
BEARING - clutch hub (See Fig. 6-4), hydrostatic drive
1шт.
5
REF
INSTRUCTION
HUB - clutch (See Fig. 6-4), hydrostatic drive
1шт.
1991851C1
CLUTCH ASSEMBLY
- engine, hydrostatic drive, Includes: Ref. 10 - 33
1шт.
10
1992548C1
COVER
- clutch, mechanical drive
1шт.
11
1992549C1
COVER
- clutch, mechanical drive
1шт.
12
1992550C1
PLATE
- pressure, mechanical drive
1шт.
13
1992551C1
PLATE
- pressure, mechanical drive
1шт.
14
1992552C1
LEVER
- release, mechanical drive
3шт.
15
1992553C1
ROD
- release lever, mechanical drive
3шт.
17
1992554C1
DIAPHRAGM
- spring, mechanical drive
2шт.
18
1992555C1
NUT
mechanical drive
3шт.
19
1992556C1
BOLT
mechanical drive
3шт.
20
1992557C1
PIN
mechanical drive
3шт.
22
1992558C1
PIN
mechanical drive
3шт.
23
1992559C1
PIN
mechanical drive
3шт.
24
1992560C1
PIN
mechanical drive
3шт.
25
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
- flat, 9 x 17 x 1.6 mm, Mechanical drive
3шт.
26
732-2516
COTTER PIN,M2.5 x 16
PIN - cotter, 2.5 x 16 mm, mechanical drive
3шт.
27
1992561C1
BALL
BOLT - adjusting, mechanical drive
3шт.
28
1992562C1
NUT
mechanical drive
3шт.
29
1992563C1
CLUTCH DISC
DISC ASSEMBLY - clutch, mechanical drive
1шт.
30
1992564C1
CLUTCH DISC
DISC ASSEMBLY - clutch, mechanical drive
1шт.
REF ITEMS 32 AND 33 (P/NS 814-8100 & 892-11008), MOUNTING HARDWARE IS NOT PART OF THE CLUTCH ASSEMBLY P/N 1991851C1 PER PRINT DATED 1/10/91. JBEDFORD 9/2/97.
1шт.
33
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, , Mechanical drive M8
6шт.
