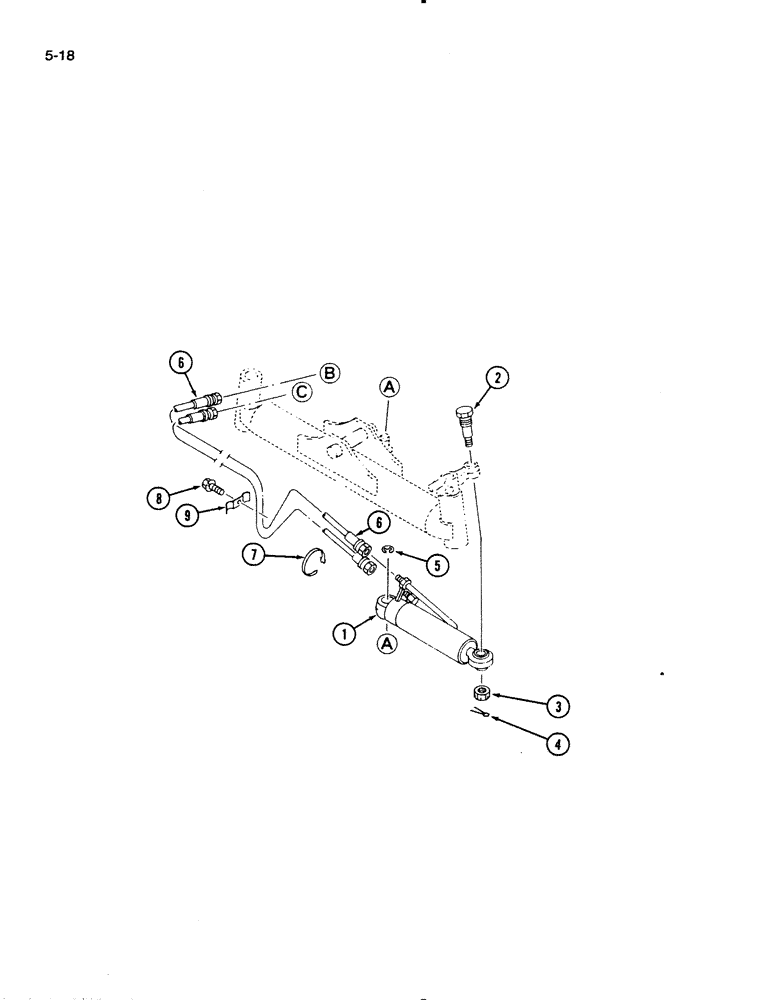

Запчасти Case IH 1130 (5-18) - STEERING CYLINDER LINKAGE (05) - STEERING

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering (See Fig. 5-20)

1шт.

2

1992545C1

BOLT

1шт.

3

1271877C1

NUT

- castle, 15 mm

1шт.

4

732-4032

COTTER PIN,M4 x 32

PIN - cotter, 4 x 32 mm

1шт.

5

933355R1

CIRCLIP,M20

E-RING - retaining (2 Wheel Drive only)

1шт.

6

1992434C1

HOSE

- steering (1140 Tractor with 2 Wheel Drive only)

2шт.

Is for 1140 Tractors, (2 wheel & MFD)

1шт.

6

1991834C1

HYDRAULIC HOSE

Steering, 1130 Tractor and 1140 Tractor with MFD

2шт.

The 1991834C1 Hose is too short for the 1140 Tractors.

1шт.

Is for 1130 Tractors, (2 Wheel and MFD)

1шт.

7

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

1шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 x 20 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

9

1991210C1

CLAMP

BRACKET

1шт.
