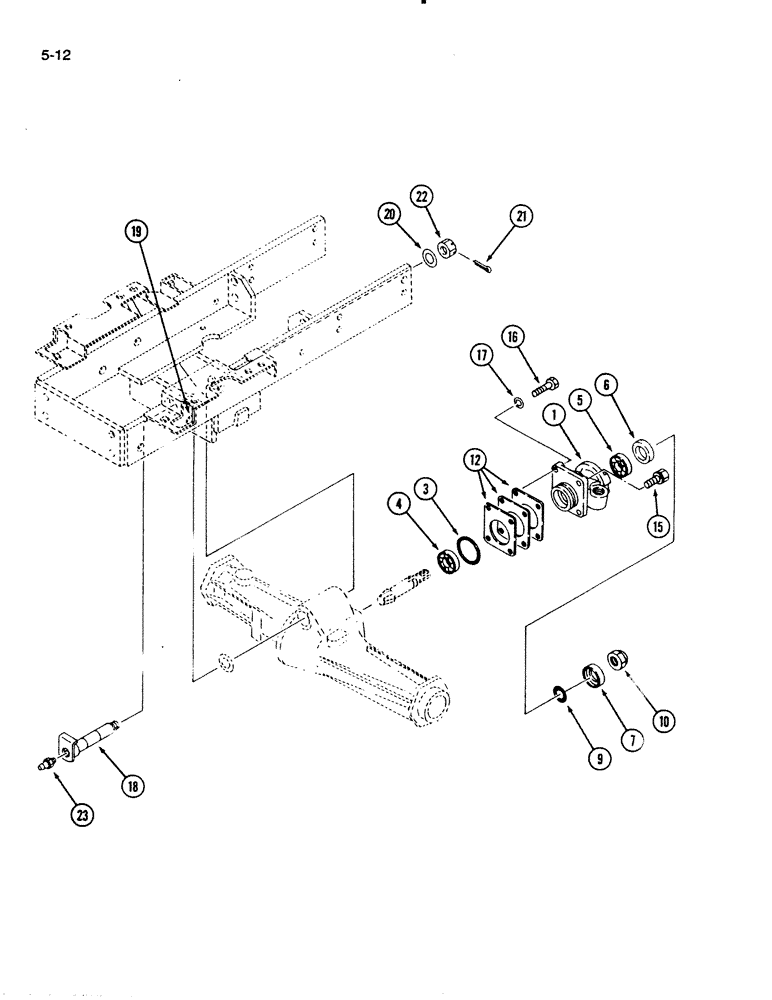

Запчасти Case IH 1130 (5-12) - FRONT AXLE PINION HOUSING, MFD TRACTOR (05) - STEERING

1

1991819C1

PINION

HOUSING - pinion shaft

1шт.

3

1269885C1

O-RING

O-RING - 60 mm ID

1шт.

4

1273201C91

TAPERED BEARING,25 mm ID x 52 mm OD x 19.25 mm

BEARING ASSEMBLY - roller, taper

1шт.

5

1273175C91

TAPERED BEARING

ASSEMBLY - roller, taper

1шт.

6

1273183C1

OIL SEAL

SEAL - oil

1шт.

7

1287733C1

SPACER

- pinion shaft

1шт.

9

1282979C1

O-RING

O-RING - 25 mm ID

1шт.

10

1991150C1

NUT

- 25 mm

1шт.

1991743C1

SHIM KIT

- pinion shaft, Includes: Ref. 12

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - pinion shaft

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - pinion shaft

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - pinion shaft

1шт.

15

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.25 x 30 mm

3шт.

15

892-11010

LOCK WASHER,M10

3шт.

16

1273202C1

BOLT,Hex, M10 x 1.25 x 35mm

BOLT - shoulder

1шт.

17

892-11010

LOCK WASHER,M10

1шт.

18

1991794C1

PIN

- center

1шт.

19

1992396C1

PLATE

WASHER - thrust (Replaces 1273133C1)

1шт.

20

1273133C1

WASHER

PLATE (Replaces 1992396C1)

1шт.

21

732-5040

COTTER PIN,M5 x 40

PIN - cotter, 5 x 40 mm

1шт.

22

1992745C1

NUT

1шт.

23

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Replaces 19461) 1/8"-27 x .66 lg

1шт.
