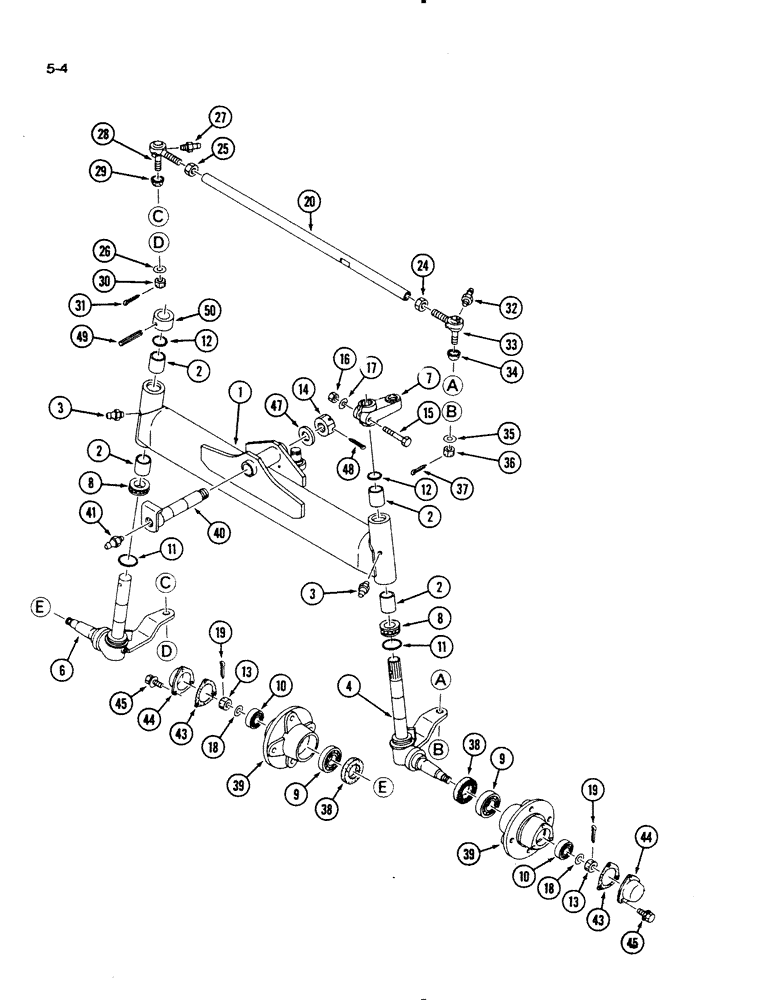

Запчасти Case IH 1130 (5-04) - FRONT AXLE, TWO WHEEL DRIVE, 1130 TRACTOR (05) - STEERING

1991785C1

CENTRALIZER

AXLE ASSEMBLY - center section, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

AXLE - center section

1шт.

2

1962084C1

BUSHING

- front axle

4шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

4

1991787C1

KNUCKLE

SPINDLE - axle, left

1шт.

6

1991788C1

KNUCKLE

SPINDLE - axle, right

1шт.

7

1991789C1

STEERING ARM

ARM - steering

1шт.

8

1271869C91

THRUST BEARING

ASSEMBLY - thrust, ball

2шт.

9

1271857C91

BEARING, BALL

BEARING ASSEMBLY - ball

2шт.

10

1271862C91

BEARING, BALL

BEARING ASSEMBLY - ball

2шт.

11

1962510C1

O-RING

O-RING - 42 mm ID

2шт.

12

1962519C1

O-RING

O-RING - 29 mm ID

2шт.

13

1271877C1

NUT

- castle, 15 mm

2шт.

14

1992810C1

NUT

1шт.

15

514-723

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

- hex, 10 mm - 1.25 x 60 mm

1шт.

16

825-1410

NUT,M10, Cl 8

1шт.

17

892-11010

LOCK WASHER,M10

1шт.

18

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

2шт.

19

732-4032

COTTER PIN,M4 x 32

PIN - cotter, 4 x 32 mm

2шт.

20

1991792C1

TUBE

ROD - tie

1шт.

24

1273544C1

NUT

- hex, special, 17 mm

1шт.

25

1273545C1

NUT

- hex, special, left hand thread, 17 mm

1шт.

1273547C91

END ASSY.

END ASSEMBLY - tie rod, left, Includes: Ref. 26 - 31

1шт.

26

1991153C1

WASHER

- lock

1шт.

27

1273649C1

FITTING

- grease, extra short, straight, 1/4-18 PT

1шт.

28

NSS

NOT SOLD SEPARAT

SOCKET - tie rod, right

1шт.

29

1273548C1

COVER ASSY

COVER - dust

1шт.

30

1273549C1

NUT

- castle, 12 mm

1шт.

31

732-3220

COTTER PIN,M3.2 x 20

PIN - cotter, 3.2 x 20 mm

2шт.

1273546C91

END ASSY.

END ASSEMBLY - tie rod, right, Includes: Ref. 32 - 37

1шт.

32

1273649C1

FITTING

- grease, extra short, straight, 1/4-18 PT

1шт.

33

NSS

NOT SOLD SEPARAT

SOCKET - tied rod, right

1шт.

34

1273548C1

COVER ASSY

COVER - dust

1шт.

35

1991153C1

WASHER

- lock

1шт.

36

1273549C1

NUT

- castle, 12 mm

1шт.

37

732-3220

COTTER PIN,M3.2 x 20

PIN - cotter, 3.2 x 20 mm

1шт.

38

1992431C1

OIL SEAL

SEAL - oil

2шт.

39

1991793C1

HUB

- wheel, front

2шт.

40

1991794C1

PIN

- center

1шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

43

1271891C1

GASKET

- hub cap

2шт.

44

1269749C1

CYLINDER END CAP

CAP - hub

2шт.

45

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

6шт.

47

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

- flat, 26 ID x 44 x 5 mm, hardened

1шт.

48

732-5040

COTTER PIN,M5 x 40

PIN - cotter, 5 x 40 mm

1шт.

49

838-1848

LOCK PIN,M8 x 48 Slotted

PIN - slotted spring, 8 x 48 mm

1шт.

50

1962088C1

BOSS

COLLAR - spindle

1шт.
