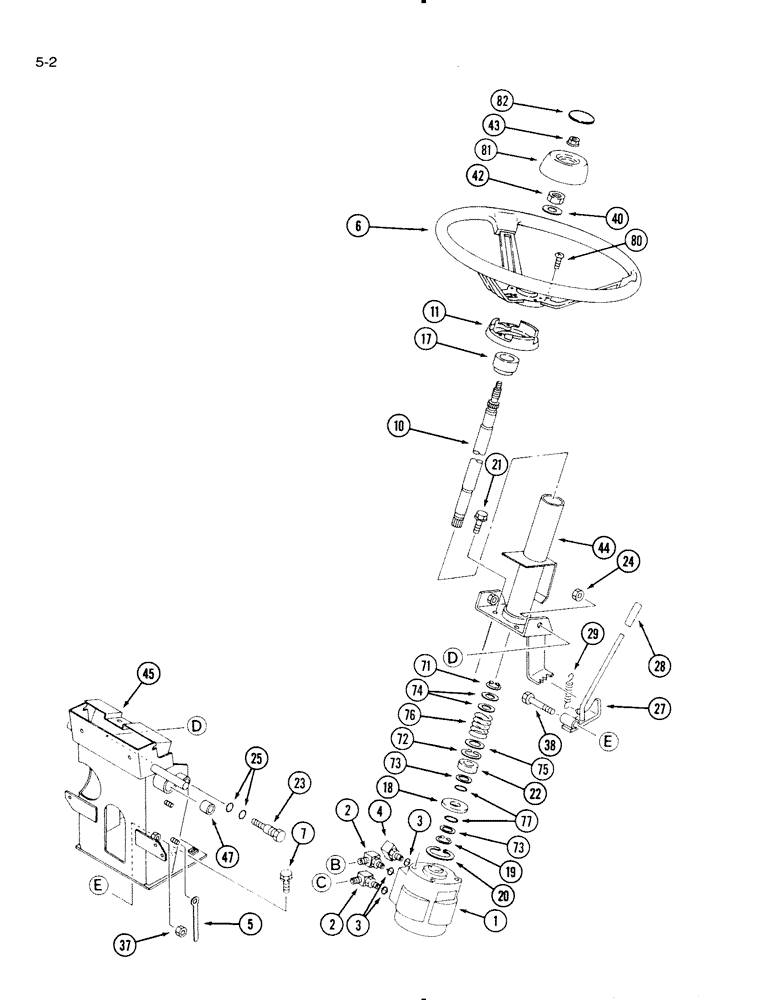

Запчасти Case IH 1130 (5-02) - STEERING WHEEL AND COLUMN (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - steering control (See Fig. 5-22)

1шт.

2

1991215C1

BODY

ELBOW - 90 degree

2шт.

3

1992239C1

O-RING

3шт.

4

1991943C1

CASE

VALVE - check

1шт.

5

1963135C1

CLAMP

- fusible link

1шт.

6

1340252C1

STEERING WHEEL

WHEEL - steering

1шт.

7

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

892-11010

LOCK WASHER,M10

4шт.

10

1991839C1

STEERING SHAFT

SHAFT - steering column

1шт.

11

1340334C1

HUB

- steering wheel

1шт.

17

1273665C1

BUSHING

- column

1шт.

18

1992544C1

WASHER

1шт.

19

933235R1

SNAP RING,M40, Int

RING - retaining, internal, 43 mm ID

1шт.

20

933123R1

SNAP RING,M20, Ext

RING - retaining, external, 18 mm ID

1шт.

21

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

892-11010

LOCK WASHER,M10

4шт.

22

1992543C1

OIL SEAL

SEAL - oil

1шт.

23

1992302C1

BOLT

2шт.

24

825-11412

NUT,M12 x 1.25, Cl 8

- hex, 12 mm

2шт.

25

1992304C1

O-RING,0.614" ID x 0.754" OD x 0.07"

4шт.

27

1992300C1

LEVER

1шт.

28

1992303C1

GRIP

- handle

1шт.

29

1992301C1

SPRING

1шт.

37

825-11412

NUT,M12 x 1.25, Cl 8

- hex, 12 mm

1шт.

38

514-843

BOLT,Hex, M12 x 1.25 x 60mm, Cl 8.8, Full Thd

1шт.

40

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

1шт.

42

1269797C1

TUBE NUT

NUT - hex jam, 16 mm

1шт.

43

825-1408

NUT,M8, Cl 8

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

44

1992627C1

STEERING COLUMN

COLUMN - steering

1шт.

45

1992435C1

BRACKET

- column

1шт.

47

1991217C1

BUSHING

2шт.

71

933105R1

SNAP RING,M22, Ext

RING - retaining, external, 20 mm ID

1шт.

72

1992172C1

RING

- retaining

1шт.

73

1992753C1

SLEEVE CYLINDER

WASHER

2шт.

74

1963040C1

SLEEVE CYLINDER

WASHER

2шт.

75

1992754C1

SLEEVE CYLINDER

WASHER

1шт.

76

1992755C1

SPRING

1шт.

77

1991232C1

O-RING,0.864" ID x 1.004" OD x 0.07"

2шт.

80

263-10310

SELF-TAP SCREW,Slotted Pan Hd, #6 x 5/8"

SCREW - self-tapping, pan head slotted, No. 6-20 x 5/8 inch

1шт.

81

1977749C1

CAP

HUB - steering wheel

1шт.

82

1342054C1

PLASTIC PLUG

INSERT - steering wheel

1шт.
