Запчасти Case IH 1130 (4-18) - STARTER ASSEMBLY, 1130 TRACTOR (04) - ELECTRICAL SYSTEMS

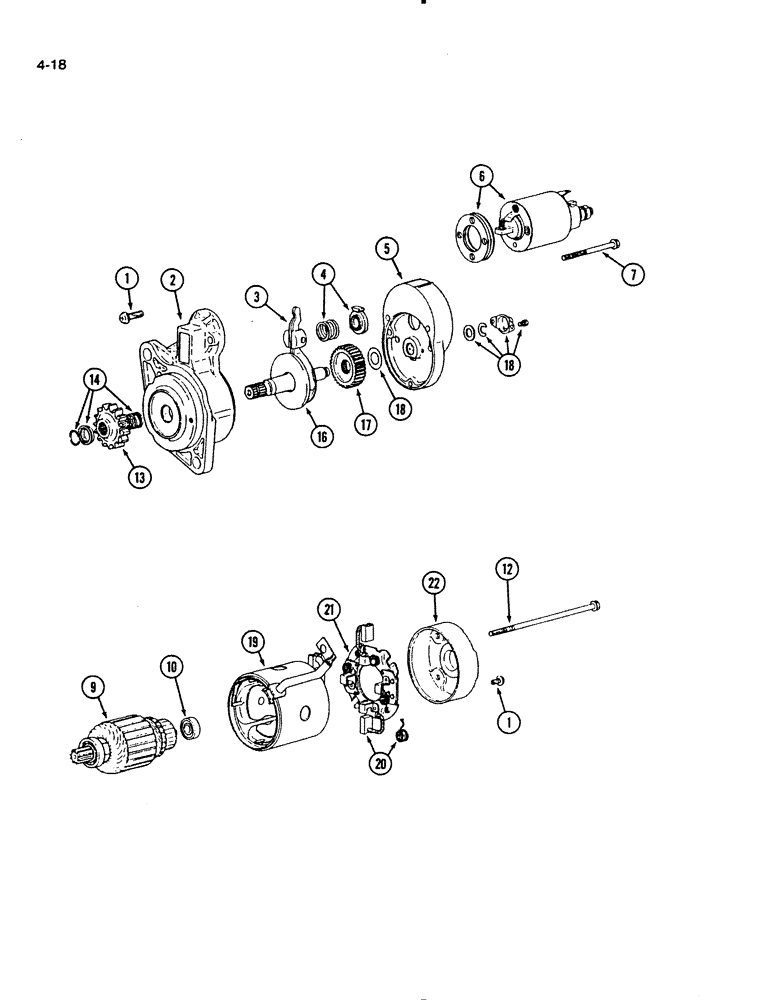

Схема запчастей Case IH 1130 - (4-18) - STARTER ASSEMBLY, 1130 TRACTOR (04) - ELECTRICAL SYSTEMS
16
6
3
12
19
1
4
18
2
10
5
17
22
9
7
20
21
18
13
1

Артикул

Название

Примечание

Количество

1273112C91

STARTING MOTOR

STARTER ASSEMBLY - engine, Includes: Ref. 1 - 6

1шт.

1273112C91R

REMAN-STARTER

Remanufactured STARTER 12 volt, 1.4KW - For N.A. Only

1шт.

1273112C91C

CORE-STARTER

Return Number, STARTER 12 volt, 1.4KW - For N.A. Only

1шт.

1

1962938C1

SCREW

KIT - starter bolt

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - front

1шт.

3

NSS

NOT SOLD SEPARAT

LEVER ASSEMBLY - starter drive

1шт.

4

1962939C1

VALVE SPRING

KIT - starter drive spring

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - center

1шт.

6

1962940C1

ASSEMBLY

SWITCH ASSEMBLY - magnetic

1шт.

1273122C1

SWITCH

SWITCH ASSEMBLY - magnetic

1шт.

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT - hex, 12 x 30 mm

2шт.

7

1962971C1

BOLT (SPREADER),M5 x 73mm

BOLT - hex special, 5 x 73 mm

1шт.

8

1992769C1

ARMATURE

ARMATURE ASSEMBLY - starter, Includes: Ref. 9 and 10

1шт.

1273123C91

KIT

BEARING KIT - armature

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING - armature

1шт.

10

NSS

NOT SOLD SEPARAT

BEARING - armature

1шт.

12

1962972C1

BOLT

BOLT - hex, 5 x 149 mm

2шт.

1962942C1

CLUTCH ASSEMBLY

SHAFT ASSEMBLY - clutch, Includes: Ref. 13 - 18

1шт.

13

1962943C1

PINION

GEAR - drive

1шт.

14

1962944C1

STOP

STOP ASSEMBLY - drive gear, Includes: Ref. 14

1шт.

1962945C1

GEAR WHEEL

GEAR SET - clutch, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT ASSEMBLY - clutch

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

18

1962946C1

COVER ASSY

KIT - housing hardware

1шт.

19

NSS

NOT SOLD SEPARAT

YOKE ASSEMBLY - field coil

1шт.

1273124C91

KIT

BRUSH KIT - starter

1шт.

20

NSS

NOT SOLD SEPARAT

HOLDER ASSEMBLY - brush

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - brush

4шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - rear

1шт.

Выбрано товаров: 29
