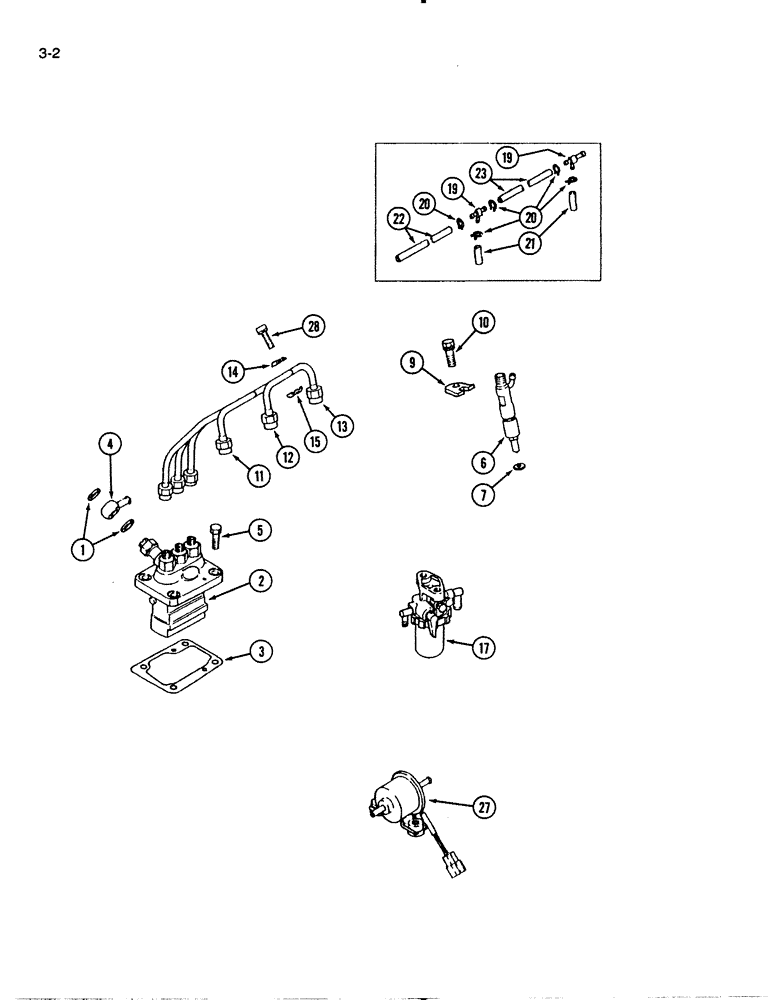

Запчасти Case IH 1130 (3-02) - FUEL INJECTION SYSTEM, 1130 TRACTOR (03) - FUEL SYSTEM

1

1271994C1

SEALING WASHER

GASKET KIT - engine

2шт.

2

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (see figur 3-8)

1шт.

3

1275096C1

KIT

SHIM KIT - injection pump adjusting

1шт.

4

1271998C1

TEE

- union

1шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 x 20 mm

4шт.

6

1992186C1

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injection (Components not serviced)

3шт.

7

1992187C1

GASKET

- nozzle holder

3шт.

9

1992188C1

SUPPORT

- nozzle

3шт.

10

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

3шт.

11

1992189C1

FUEL TUBE

TUBE ASSEMBLY - fuel injection, No. 1 cylinder

1шт.

12

1992190C1

FUEL TUBE

TUBE ASSEMBLY - fuel injection, No. 2 cylinder

1шт.

13

1992191C1

FUEL TUBE

TUBE ASSEMBLY - fuel injection, No. 3 cylinder

1шт.

14

1273005C1

CLAMP

- injection tubes

2шт.

15

1273004C1

CLAMP

- injection tubes

1шт.

17

REF

INSTRUCTION

FILTER ASSEMBLY - fuel (see figure 3-6)

1шт.

1992192C1

PIPE ASSY.

PIPE ASSEMBLY - fuel leakoff, Includes: Ref. 19 - 23

1шт.

19

1273011C1

TEE

- fuel, leak off, Includes: Ref. 20

2шт.

20

214-1304

HOSE CLAMP,#4, 1/4", Spring

CLAMP - hose

6шт.

21

1991028C1

PLASTIC-RUBBER TUBE

HOSE - rubber

2шт.

When stock on hand is used up, use 74812C1

1шт.

22

1991025C1

HOSE

- rubber

1шт.

When stock on hand is used up, use 74812C1

1шт.

23

1991026C1

HOSE

- rubber

1шт.

When stock on hand is used up, use 74812C1

1шт.

27

1991029C1

PUMP

ASSEMBLY - fuel

1шт.

28

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.
