(2-40) - ENGINE GASKET KIT, 1130 TRACTOR

Запчасти Case IH 1130 (2-40) - ENGINE GASKET KIT, 1130 TRACTOR (02) - ENGINE

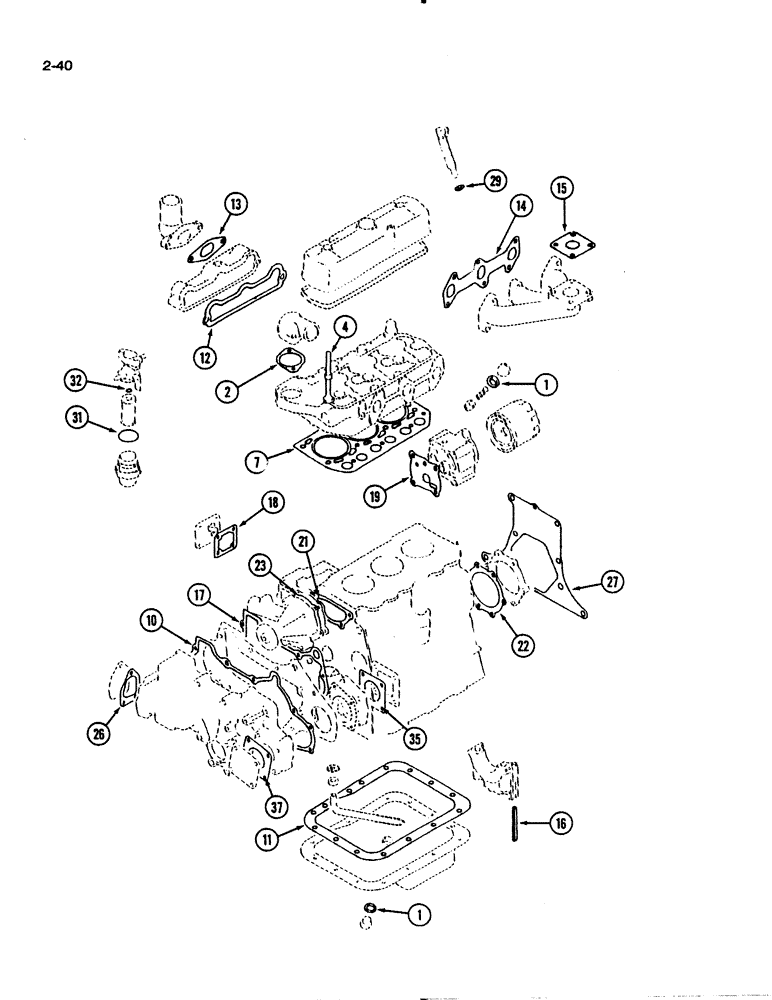

Схема запчастей Case IH 1130 - (2-40) - ENGINE GASKET KIT, 1130 TRACTOR (02) - ENGINE
18
16
17
1
19
21
7
13
27
37
12
10
2
31
11
26
32
1
15
22
14
4
29
35
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1992229C1

GASKET KIT

GASKET KIT - engine

1шт.

1

1271905C1

GASKET

- drain plug

2шт.

2

1273088C1

GASKET

- thermostat housing

2шт.

4

1271981C1

SEAL

SEAL - valve stem

6шт.

7

1992179C1

CYLINDER HEAD GASKET

- cylinder head

1шт.

10

1991008C1

GASKET

- gear cover

1шт.

11

1991006C1

GASKET

- oil pan

1шт.

12

1273107C1

MANIFOLD GASKET

- intake manifold

1шт.

13

1273109C1

GASKET

- inlet elbow

1шт.

14

1991049C1

MANIFOLD GASKET

- exhaust manifold

1шт.

15

1991047C1

GASKET

- exhaust manifold to muffler

1шт.

16

1271776C1

SEAL

SEAL - end bearing cap, side

4шт.

17

1991002C1

GASKET

- front plate

1шт.

18

1991034C1

GASKET

- cover

1шт.

19

1991040C1

GASKET

- oil pump

1шт.

21

1991043C1

GASKET

- water pump

1шт.

22

1991001C1

GASKET

- oil seal

1шт.

23

NSS

NOT SOLD SEPARAT

GASKET - water pump

1шт.

26

1992770C1

GASKET

- governor cover

1шт.

27

1991004C1

GASKET

- rear plate

1шт.

29

1992187C1

GASKET

- nozzle holder

3шт.

31

NSS

NOT SOLD SEPARAT

O-RING - filter cap

1шт.

32

NSS

NOT SOLD SEPARAT

O-RING - element

1шт.

35

1991011C1

GASKET

- pump cover

2шт.

37

1991010C1

GASKET

- housing, pump gear

1шт.
