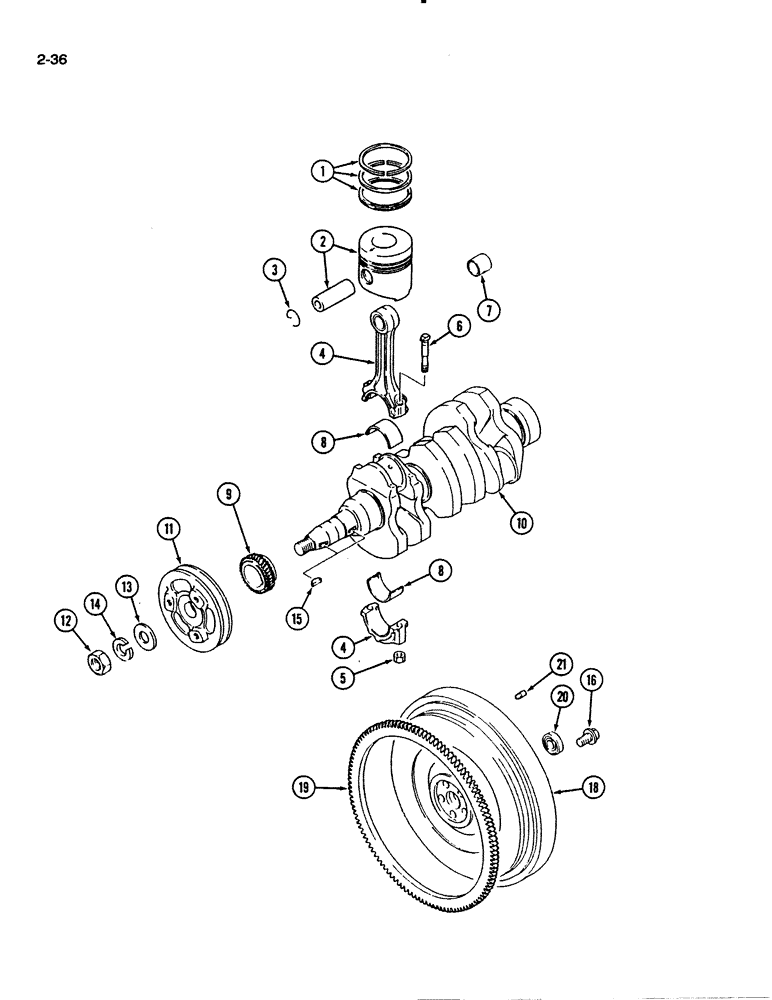

Запчасти Case IH 1130 (2-36) - PISTONS AND SLEEVES, 1130 TRACTOR (02) - ENGINE

1

1992676C1

RING, SET

RING KIT - piston, standard

3шт.

1

1992677C1

RING, SET

RING KIT - piston, 0.25 mm oversize

3шт.

1

1992678C1

RING, SET

RING KIT - piston, 0.50 mm oversize

3шт.

1

1992679C1

RING, SET

RING KIT - piston, 0.75 mm oversize

3шт.

2

1992180C1

PISTON

KIT - engine, standard

3шт.

2

1992181C1

PISTON

KIT - engine, 0.25 mm oversize

3шт.

2

1992182C1

PISTON

KIT - engine, 0.50 mm oversize

3шт.

2

1992183C1

PISTON

KIT - engine, 0.75 mm oversize

3шт.

3

1273079C1

RING

CLIP - piston pin retainer

6шт.

4

1271952C91

ROD

ASSEMBLY - connecting, connecting rod 1130 tractor, Includes: Ref. 5 - 7

3шт.

5

1271953C1

NUT

- connecting rod 1130 tractor

6шт.

6

1271954C1

BOLT,M8 x 1 x 50.50mm

BOLT - connecting rod 1130 tractor

6шт.

7

1962927C1

BEARING LINER,23 mm ID x 26 mm OD x 22 mm

BEARING - tapered, connecting rod 1130 tractor

3шт.

8

1346690C1

BEARING SET,42.5mm ID x 45.5mm OD x 22mm W

BEARING KIT - connecting rod, standard, connecting rod 1130 tractor

3шт.

8

1346691C1

BEARING SET,1.625"

BEARING KIT - connecting rod, 0.25 mm undersize, connecting rod 1130 tractor

3шт.

8

1346692C1

BEARING SET

BEARING KIT - connecting rod, 0.50 mm undersize, connecting rod 1130 tractor

3шт.

8

1346693C1

BEARING SET

BEARING KIT - connecting rod, 0.75 undersize, connecting rod 1130 tractor

3шт.

9

1271963C1

GEAR WHEEL

GEAR - crankshaft, front, crankshaft 1130 tractor

1шт.

10

1271965C1

CRANK

SHAFT - engine, crankshaft 1130 tractor

1шт.

11

1991018C1

PULLEY

- crankshaft, crankshaft 1130 tractor

1шт.

12

1273140C1

NUT

- crankshaft, 18 MM, crankshaft 1130 tractor

1шт.

13

895-11018

WASHER,M18 x 34 x 3

- flat, 18 mm, crankshaft 1130 tractor

1шт.

14

892-11018

LOCK WASHER,M18

WASHER - spring, 18 mm, crankshaft 1130 tractor

1шт.

15

1271974C1

KEY

- Woodruff, 5 x 19 mm, crankshaft 1130 tractor

2шт.

16

1271833C2

FLANGE BOLT,Hex Wshr Hd, M12 x 1.25 x 29mm

BOLT - flywheel 1130 tractor

5шт.

1991703C1

FLYWHEEL

ASSEMBLY - engine (Single clutch), flywheel 1130 tractor, Includes: Ref. 18 and 19

1шт.

1991704C1

FLYWHEEL

ASSEMBLY - engine (Dual clutch), flywheel 1130 tractor, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

FLYWHEEL - engine, flywheel 1130 tractor

1шт.

19

1271969C1

GEAR WHEEL

GEAR - ring, flywheel 1130 tractor

1шт.

20

1273355C91

BEARING, BALL,15 mm ID x 32 mm OD x 9 mm

BEARING ASSEMBLY - ball, flywheel 1130 tractor

1шт.

21

1271835C1

AXLE PIN

PIN - dowel, 8 mm (Dual clutch only), flywheel 1130 tractor

3шт.
