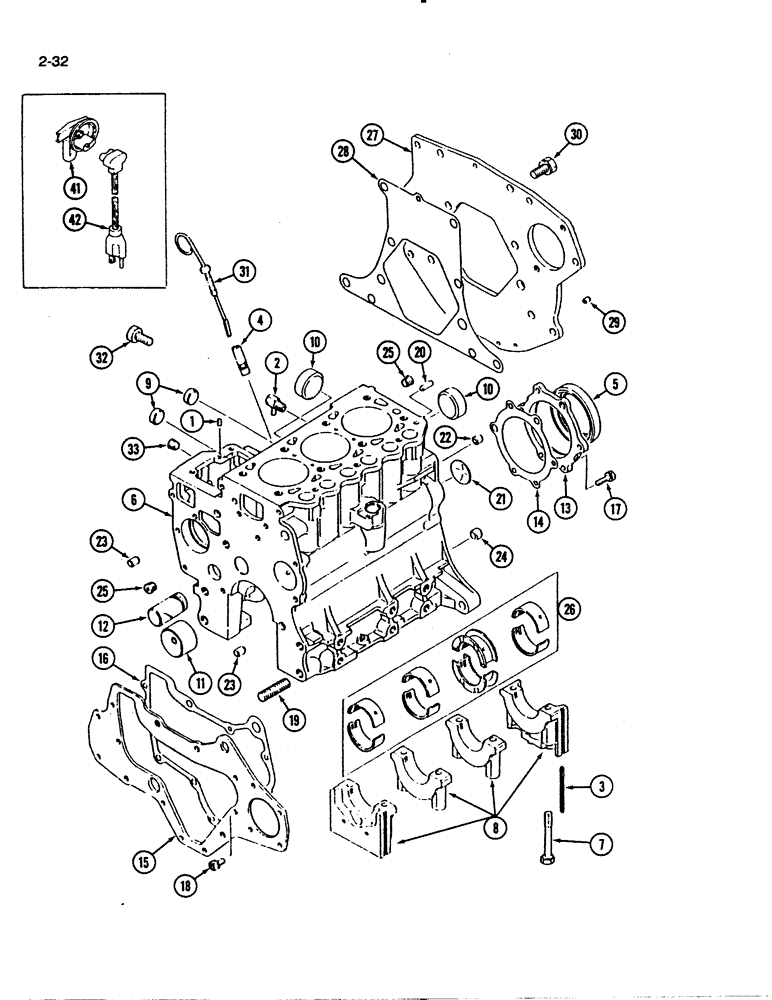

Запчасти Case IH 1130 (2-32) - CYLINDER BLOCK, 1130 TRACTOR (02) - ENGINE

1991708C1

ENGINE ASSEMBLY

- complete

1шт.

1991708C1 is 3 cyl, K3G-14R, 75.4 Cu In 1235

1шт.

1

837-4010

DOWEL,M4 x 10

PIN - dowel

2шт.

2

1271724C1

ELBOW UNION

ELBOW - water drain

1шт.

3

1271776C1

SEAL

SEAL - end bearing cap, side

4шт.

4

1271777C1

TUBE,9.6 mm ID, 12 mm OD, 50 mm Length

- dipstick

1шт.

5

1273127C1

OIL SEAL

SEAL - oil

1шт.

6

1992177C1

BLOCK ASSY.

BLOCK ASSEMBLY - cylinder, Includes: Ref. 7 - 11

1шт.

7

1271825C1

BOLT,Hex, M10 x 1.25 x 81mm

BOLT - bearing cap

8шт.

8

NSS

NOT SOLD SEPARAT

CAP - bearing

4шт.

9

30591R1

PLUG,M25, Tapered

- tapered cup, 25 mm

2шт.

10

30734R1

PLUG,M45, Tapered

- tapered cup, 45 mm

2шт.

11

1271780C1

SPACER

BUSHING - camshaft

1шт.

12

1271781C1

SHAFT HOUSING

SHAFT - idler

1шт.

13

1271782C1

RETAINER

- oil seal

1шт.

14

1991001C1

GASKET

- oil seal

1шт.

15

1271784C1

PLATE ASSY.

PLATE - front

1шт.

16

1991002C1

GASKET

- front plate

1шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 25 mm

6шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

18

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

19

1273132C1

STUD

- threaded, 14 x 30 mm

2шт.

20

1271835C1

AXLE PIN

PIN - dowel, 8 mm OD

1шт.

21

1288305C1

PLUG

- expansion, 40 mm

1шт.

22

1271786C1

SPACER

- bushing, 8 mm OD x 9 mm

2шт.

23

1271787C1

SPACER

- bushing, 8 mm OD x 13 mm

2шт.

24

1271788C1

SPACER

- bushing, 8 mm OD x 9 mm

1шт.

25

444693

PLUG,Hex Soc, 1/4"-18, Brass

- hex socket, 1/4 inch PT

2шт.

26

1346680C1

BEARING SET,52 mm ID x 20 mm

BEARING KIT - upper and lower, standard

1шт.

26

1346681C1

BEARING SET,51.75 mm ID x 21.25 mm

BEARING KIT - upper and lower, 0.25 mm oversize

1шт.

26

1346682C1

BEARING SET,51.5 mm ID x 22.5 mm

BEARING KIT - upper and lower, 0.50 mm oversize

1шт.

26

1346683C1

BEARING SET,51.25 mm ID x 23.75 mm

BEARING KIT - upper and lower, 0.75 mm oversize

1шт.

27

1991003C1

PLATE

- rear

1шт.

28

1991004C1

GASKET

- rear plate

1шт.

29

1271827C1

AXLE PIN

PIN - dowel, 8 mm OD x 10 mm

1шт.

30

1273131C1

BOLT,Hex, M10 x 1.25 x 40mm

BOLT - hex, (with washer) 12 x 28 mm

6шт.

31

1991005C1

DIPSTICK

- oil level

1шт.

32

1273144C1

BOLT,Hex, M12 x1.25 x 25mm

BOLT - hex, 12 x 25 mm

4шт.

33

444693

PLUG,Hex Soc, 1/4"-18, Brass

- hex socket, 1/4 inch PT

1шт.

245565C1

STRIPPER PACKAGE

HEATER ASSEMBLY - cylinder block, Includes: Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT - heater, coolant heater kit

1шт.

42

245564C1

ELECTRICAL WIRE

CORD ASSEMBLY - heater, coolant heater kit

1шт.
