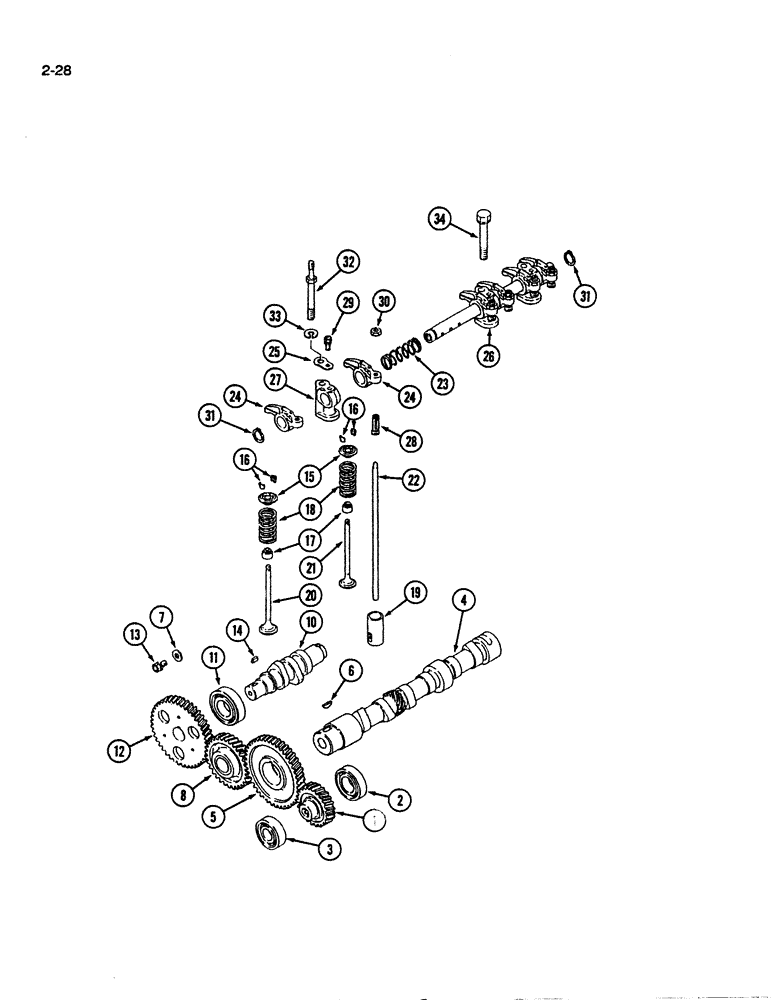

Запчасти Case IH 1130 (2-28) - CAMSHAFTS AND TIMING GEARS, 1130 TRACTOR (02) - ENGINE

1

1991020C1

PUMP

GEAR - oil pump

1шт.

2

1991021C1

BALL BEARING

BEARING ASSEMBLY - ball

1шт.

3

1273146C91

BEARING, BALL,25 mm ID x 52 mm OD x 15 mm

BEARING ASSEMBLY - ball

1шт.

4

1271972C1

CAMSHAFT

- engine

1шт.

5

1271973C1

GEAR WHEEL

GEAR - camshaft

1шт.

6

1271974C1

KEY

- Woodruff, 5 x 19 mm

1шт.

7

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm

1шт.

8

1271975C1

GEAR WHEEL

GEAR ASSEMBLY - idler

1шт.

10

1992184C1

SHAFT

CAMSHAFT - injection pump

1шт.

11

1273356C91

BEARING, BALL,28 mm ID x 58 mm OD x 16 mm

BEARING ASSEMBLY - ball

1шт.

12

1271977C1

GEAR WHEEL

GEAR - injection pump

1шт.

13

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

14

1271978C1

BAR

KEY - injection pump gear, 5 x 12 mm

1шт.

15

1271979C1

RETAINER

- valve spring, valve mechanism 1130 tractor

6шт.

16

1271980C1

KEY

LOCK - valve spring retainer, valve mechanism 1130 tractor

12шт.

17

1271981C1

SEAL

SEAL - valve stem, valve mechanism 1130 tractor

6шт.

18

1271982C1

VALVE SPRING

SPRING - valve, valve mechanism 1130 tractor

6шт.

19

1271983C1

TAPPET

- push rod, valve mechanism 1130 tractor

6шт.

20

1991023C1

VALVE

- intake, valve mechanism 1130 tractor

3шт.

21

1991024C1

VALVE

- exhaust, valve mechanism 1130 tractor

3шт.

22

1271986C1

AXLE PIN

ROD - push, valve mechanism 1130 tractor

6шт.

23

1271987C1

VALVE SPRING

SPRING - rocker arm shaft, valve mechanism 1130 tractor

2шт.

24

1271988C1

ARM

- rocker V, valve mechanism 1130 tractor

6шт.

25

1271989C1

WASHER

- seat, valve mechanism 1130 tractor

2шт.

26

1271990C1

SHAFT HOUSING

SHAFT ASSEMBLY - rocker, valve mechanism 1130 tractor

1шт.

27

1271991C1

BRACKET

- rocker arm shaft, valve mechanism 1130 tractor

3шт.

28

1271992C1

ADJUSTMENT SCREW,M10 x 1.25 x 34mm

SCREW - adjusting, valve mechanism 1130 tractor

6шт.

29

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

Valve mechanism 1130 tractor Hex, M6 x 16, 8.8

2шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, , Valve Mechanism 1130 Tractor M6

2шт.

30

1269793C1

NUT

- hex, jam, 10 mm, valve mechanism 1130 tractor

6шт.

31

933081R1

SNAP RING,M19, Ext

RING - retaining, external, 19 mm, valve mechanism 1130 tractor

2шт.

32

1273141C1

STUD,M10 x 1.25 - M8 x 1.25 x 108mm L

- special, valve mechanism 1130 tractor

2шт.

33

892-11010

LOCK WASHER,M10

Valve mechanism 1130 tractor M10

2шт.

34

1273143C1

BOLT,Hex, M10 x 1.25 x 70mm

BOLT - hex (with washer), 10 x 70 mm, valve mechanism 1130 tractor

1шт.
