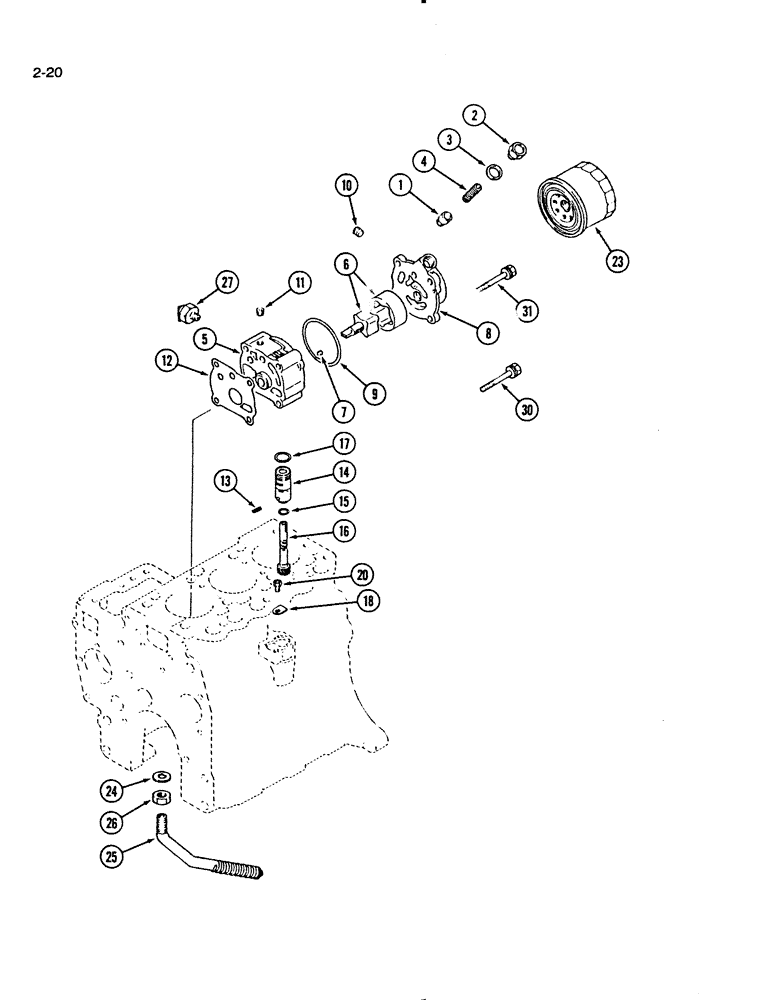

Запчасти Case IH 1130 (2-20) - OIL PUMP AND OIL FILTER, 1130 TRACTOR (02) - ENGINE

1273056C91

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, Includes: Ref. 1 - 11

1шт.

1273080C1

KIT

RELIEF VALVE KIT - oil pump, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

PLUNGER - relief

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - relief

1шт.

3

1271905C1

GASKET

- drain plug

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - relief

1шт.

1991041C1

KIT

ROTOR KIT - oil pump, Includes: Ref. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - oil pump

1шт.

6

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY - oil pump

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - dowel

2шт.

8

NSS

NOT SOLD SEPARAT

COVER - pump

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - tapered, 1/4 inch PT

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG - tapered, 1/8 inch PT

1шт.

12

1991040C1

GASKET

- oil pump

1шт.

1273065C91

DRIVE ASSY.

DRIVE ASSEMBLY - speedometer, Includes: Ref. 13 - 17

1шт.

13

NSS

NOT SOLD SEPARAT

PIN - spring

1шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE - gear

1шт.

15

1271834C1

O-RING,10.3mm ID x 2.4mm Width

O-RING - 10 mm

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

17

1269871C1

O-RING,17.8mm ID x 2.4mm Width

- 18 mm

1шт.

18

1273068C1

BAR

- speedometer drive, locking

1шт.

20

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

23

1275229C2

FILTER, ENGINE OIL

FILTER ASSEMBLY - oil

1шт.

Alternate w/ 104079A1

1шт.

24

1273070C1

SEALING WASHER

SEAL - washer

1шт.

25

1282962C1

TUBE,140, 90 mm Length

- oil screen, Includes: Ref. 26

1шт.

26

1269797C1

TUBE NUT

NUT - hex jam, 16 mm

1шт.

27

1273073C1

SWITCH

ASSEMBLY - oil pressure

1шт.

30

814-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8

- hex, 8 mm - 1.25 x 65 mm

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

3шт.

31

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.
