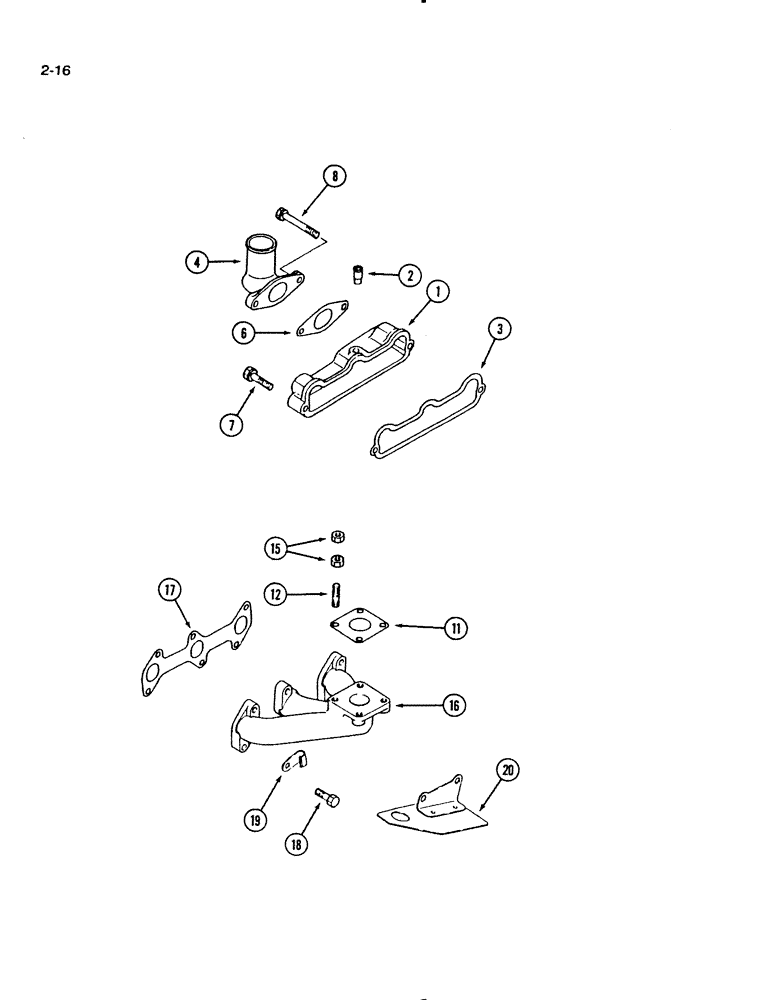

Запчасти Case IH 1130 (2-16) - MANIFOLDS, 1130 TRACTOR (02) - ENGINE

1

1273106C91

MANIFOLD

ASSEMBLY - intake, Includes: Ref. 2

1шт.

2

1271925C1

TUBE,7 mm ID, 10.8 mm OD, 75 mm Length

- breather hose, intake

1шт.

3

1273107C1

MANIFOLD GASKET

- intake manifold

1шт.

4

1273108C1

ELBOW UNION

ELBOW - inlet, intake

1шт.

6

1273109C1

GASKET

- inlet elbow, intake

1шт.

7

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

Full Thd, intake Hex, M8 x 40, 8.8

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Intake M8

1шт.

8

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

HH, CL 8.8, M8 x 1.25 x 70, intake

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Intake M8

2шт.

11

1991047C1

GASKET

- exhaust manifold to muffler, exhaust

1шт.

12

1273129C1

STUD

- muffler mounting, 8 x 25 mm, exhaust

4шт.

15

1282956C2

NUT

- hex special, 8 mm, exhaust

8шт.

16

1991048C1

MANIFOLD

- exhaust

1шт.

17

1991049C1

MANIFOLD GASKET

- exhaust manifold, exhaust

1шт.

18

614-8028

BOLT,Hex, M8 x 1.25 x 28mm, Cl 8.8, Full Thd

- hex, 8 x 28 mm, exhaust

6шт.

19

351009R1

CLIP

- tachometer cable, exhaust

1шт.

20

1992768C1

COVER

- starter, exhaust

1шт.
