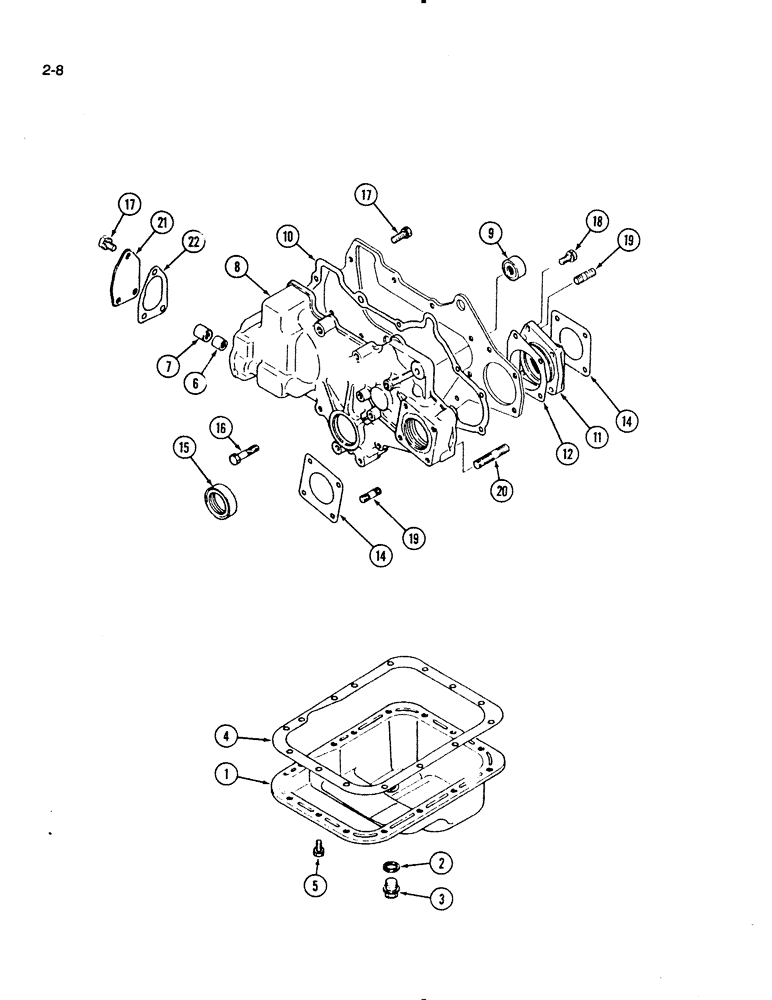

Запчасти Case IH 1130 (2-08) - OIL PAN, 1130 TRACTOR (02) - ENGINE

1

1271903C91

PAN ASSY.

PAN ASSEMBLY - oil, engine, Includes: Ref. 2 and 3

1шт.

2

1271905C1

GASKET

- drain plug

1шт.

3

1271906C1

PLUG

- oil drain

1шт.

4

1991006C1

GASKET

- oil pan

1шт.

5

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm

15шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

15шт.

6

1273346C91

NEEDLE BEARING

BEARING ASSEMBLY - needle, front gear cover

1шт.

7

1273347C91

NEEDLE BEARING

BEARING ASSEMBLY - needle, front gear cover

1шт.

8

1991007C1

CASE

COVER ASSEMBLY - gear, front, front gear cover, Includes: Ref. 9

1шт.

9

1273777C1

TUBE

PLUG - thrust, front gear cover

1шт.

10

1991008C1

GASKET

- gear cover, front gear cover

1шт.

11

1991009C1

HOUSING

- pump gear bearing, front gear cover

1шт.

12

1991010C1

GASKET

- housing, pump gear, front gear cover

1шт.

14

1991011C1

GASKET

- pump, front gear cover

2шт.

15

1273348C1

OIL SEAL

SEAL - oil, front gear cover

1шт.

16

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

- hex, 8 mm - 1.25 x 45 mm, front gear cover

8шт.

17

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm, front gear cover

7шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Front gear cover M8

5шт.

18

30004R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

- hex, 8 x 30 mm, Grade 10.9, front gear cover

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Front gear cover M8

1шт.

19

1346688C1

STUD

- threaded, 8 x 22 mm, front gear cover

3шт.

20

1273128C1

STUD

- threaded, 8 x 45 mm, front gear cover

3шт.

21

1963631C1

COVER ASSY

COVER - governor, front gear cover

1шт.

22

1991012C1

GASKET

- governor cover, front gear cover

1шт.
