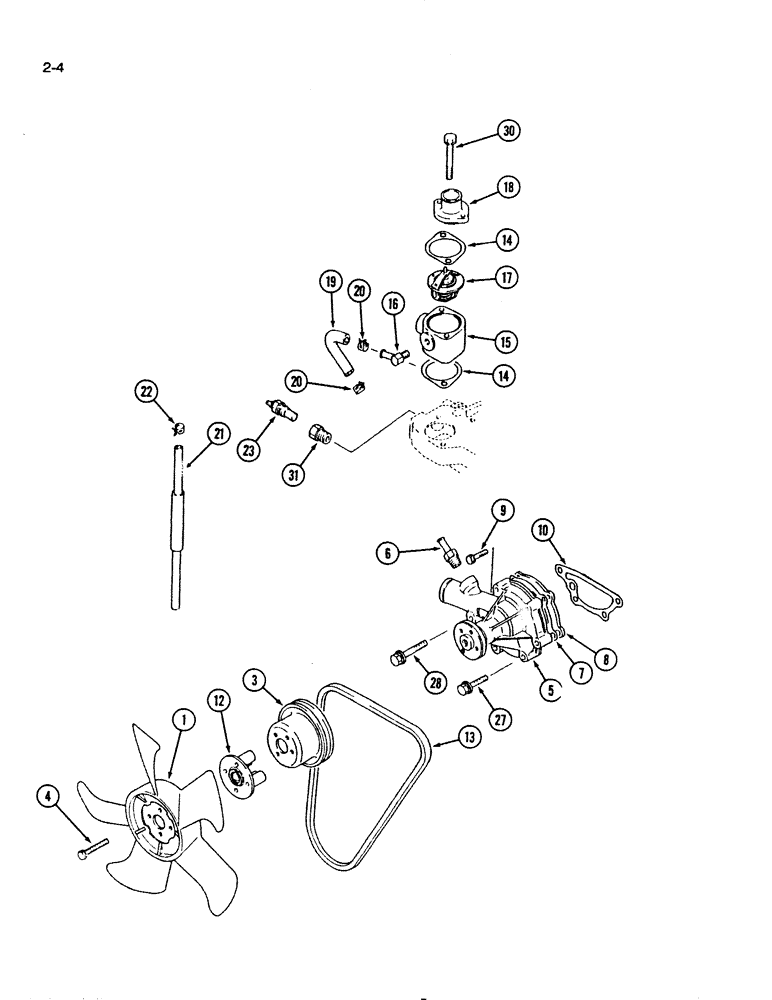

Запчасти Case IH 1130 (2-04) - WATER PUMP AND FAN, 1130 TRACTOR (02) - ENGINE

1

1991042C1

FAN

- cooling

1шт.

3

1273084C1

PULLEY

- water pump

1шт.

4

814-6075

BOLT,Hex, M6 x 1 x 75mm, Cl 8.8

- hex, 6 x 75 mm

4шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

1273085C91

PUMP

ASSEMBLY - water, Includes: Ref. 5 - 9

1шт.

1273085C91R

REMAN-WATER PUMP

1130

1шт.

1273085C91C

CORE-WATER PUMP

Return Number

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - water pump

1шт.

6

1273096C1

FITTING

- hose, nipple, straight, 3/8 PT

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - pump

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - pump

1шт.

9

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

- hex, 6mm - 1.00 x 30 mm

2шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

10

1991043C1

GASKET

- water pump

1шт.

12

1962911C1

SPACER

- fan

2шт.

13

1991044C1

BELT

V-BELT, Fan

1шт.

14

1273088C1

GASKET

- thermostat housing

2шт.

15

1273098C1

HOUSING

- thermostat

1шт.

16

1273090C1

ELBOW UNION

FITTING - water outlet

1шт.

17

1992224C1

THERMOSTAT

- coolant

1шт.

18

1273092C1

FITTING

HOUSING - thermostat

1шт.

19

1992823C1

HOSE ASSY.

HOSE - bypass, 8 x 150 mm

1шт.

20

214-1308

HOSE CLAMP,#8, 1/2", Spring

CLAMP, HOSE, #8, 1/2", Spring

2шт.

21

1992225C1

HOSE ASSY.

HOSE ASSEMBLY - water drain, 6 x 240 mm

1шт.

22

214-1308

HOSE CLAMP,#8, 1/2", Spring

CLAMP, HOSE, #8, 1/2", Spring

2шт.

23

1991045C1

UNIT

SENDER - engine coolant temperature

1шт.

27

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

- hex, 8 mm - 1.25 x 45 mm

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

3шт.

28

614-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8, Full Thd

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

30

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

HH, CL 8.8, M8 x 1.25 x 70

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

31

1991046C1

JOINT

FITTING - thermostat

1шт.
