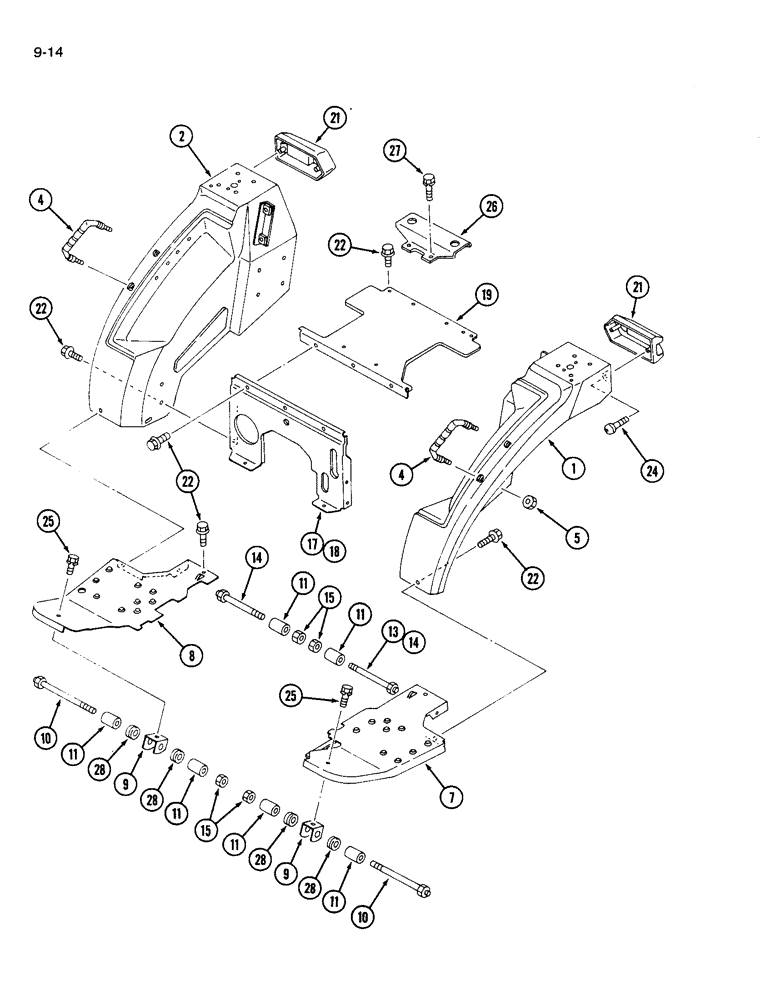

Запчасти Case IH 1120 (9-14) - FENDERS AND STEPS (09) - CHASSIS/ATTACHMENTS

1

1991668C1

FENDER

left

1шт.

2

1991669C1

FENDER

right

1шт.

4

1991670C1

RAIL

HANDLE fender

1шт.

5

825-1408

NUT,M8, Cl 8

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

7

1991671C1

STEP

left

1шт.

8

1991672C1

STEP

right

1шт.

9

1991673C1

BRACKET

2шт.

10

1992421C1

BOLT

2шт.

11

1991675C1

RUBBER

STOPPER rubber

6шт.

13

1992422C1

BOLT

not used with hydrostatic transmission

1шт.

14

1991674C1

BOLT

used with mechanical transmission

1шт.

14

1991674C1

BOLT

used with hydrostatic transmission

2шт.

15

825-11416

NUT,M16 x 1.5, Cl 8

Hex M16 x 1.5, Cl 8

4шт.

17

1991676C1

COVER

used with hydrostatic transmission

1шт.

18

1991677C1

COVER

used with mechanical transmission

1шт.

19

1991678C1

COVER

1шт.

21

1991680C1

COVER

2шт.

22

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, 8 - 1.25 x 16 mm

14шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

14шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

14шт.

24

1992831C1

SCREW

4шт.

25

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 12 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

26

1991684C1

BRACKET

1шт.

27

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, 12 - 1.25 x 30 mm

4шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

28

1992612C1

GROMMET

4шт.
