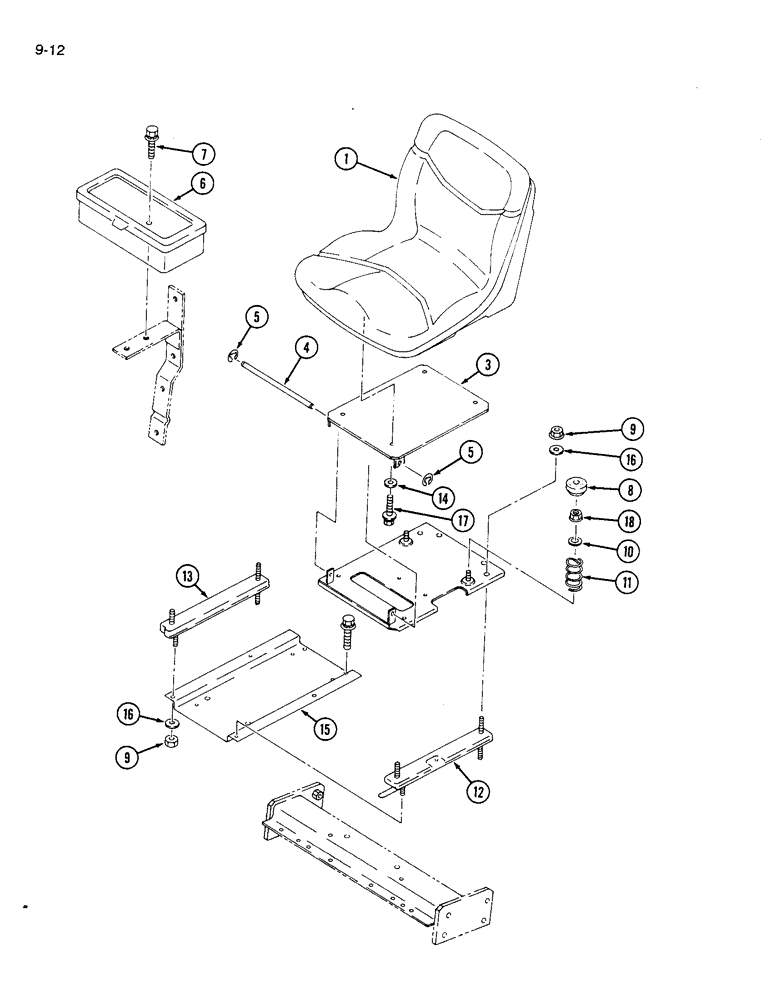

Запчасти Case IH 1120 (9-12) - OPERATOR SEAT, MOUNTING, TOOLBOX (09) - CHASSIS/ATTACHMENTS

1

1981782C1

SEAT

KIT Seat, with pan

1шт.

3

1991666C1

BRACKET

1шт.

4

1992418C1

PIN

1шт.

5

1271817C1

CIRCLIP,M9

RING retaining

2шт.

6

1269728C1

BOX

tool

1шт.

7

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, 8 mm x 20 mm

6шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

6шт.

8

1992420C1

RUBBER

STOPPER rubber

2шт.

9

825-1408

NUT,M8, Cl 8

8шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

2шт.

11

1991503C1

SPRING

2шт.

1989931C1

KIT

Slide Rail, operator seat, Includes Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

ADJUSTER slide

1шт.

13

NSS

NOT SOLD SEPARAT

RAIL slide

1шт.

14

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

1шт.

15

1992419C1

SUPPORT

plate

1шт.

16

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

2шт.

18

825-1408

NUT,M8, Cl 8

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

19

1992417C1

BRACKET

not shown

1шт.
