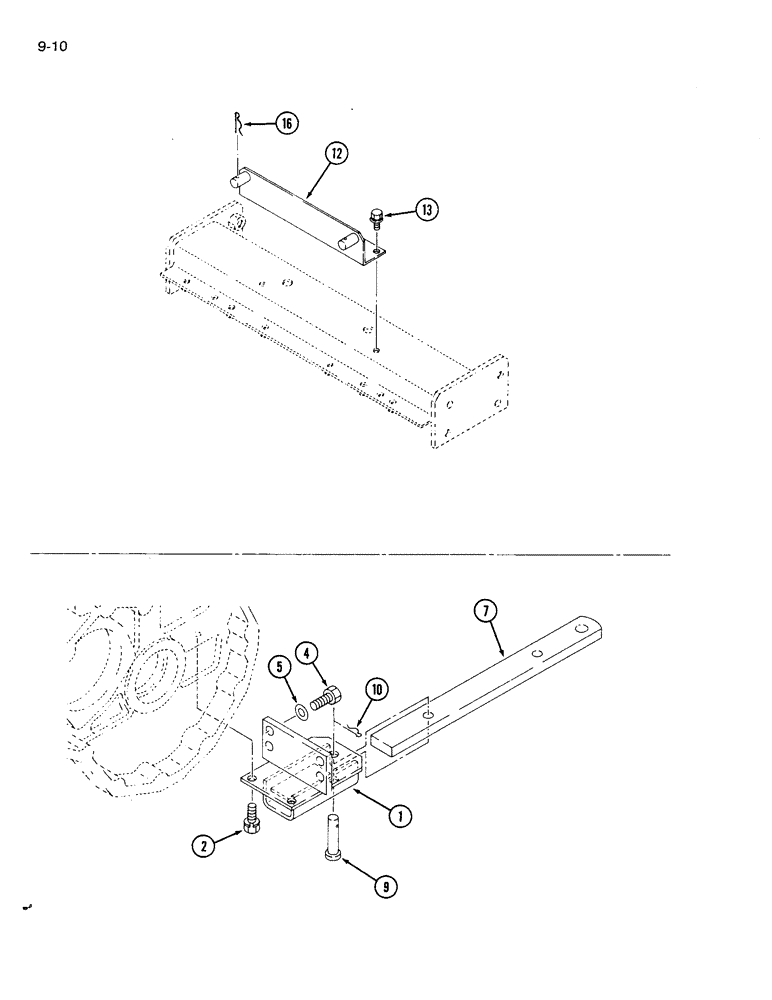

Запчасти Case IH 1120 (9-10[1]) - DRAWBAR, WITHOUT MID PTO (09) - CHASSIS/ATTACHMENTS

1

1991645C1

BRACKET

1шт.

2

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, 10 - 1.25 x 30 mm

2шт.

892-11010

LOCK WASHER,M10

2шт.

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

2шт.

4

614-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 8.8, Full Thd

hex, 14 x 35 mm

4шт.

5

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

flat, 15.5 x 28 x 3 mm, hardened

4шт.

7

1991647C1

DRAWBAR

1шт.

9

1992856C1

CLEVIS PIN

PIN clevis

1шт.

10

1269737C1

AXLE PIN

PIN hair

1шт.
