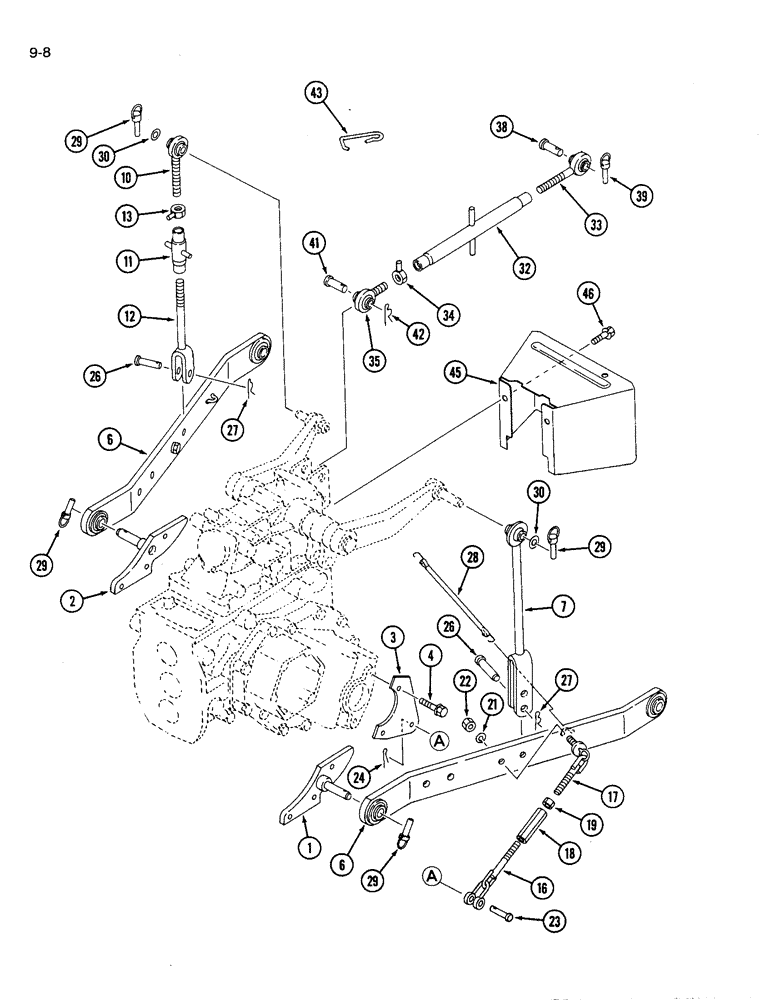

Запчасти Case IH 1120 (9-08) - THREE POINT HITCH SYSTEM (09) - CHASSIS/ATTACHMENTS

1992407C1

ACCESSORIES

3 POINT HITCH ASSEMBLY, Includes Ref. 1 - 29

1шт.

1

1991626C1

BRACKET

mounting, left

1шт.

The bolt that goes in Ref. 1 and 2 is 514-722. This is a m10-1.25 x 55 class 8.8 znd bolt.

1шт.

2

1991627C1

BRACKET

mounting, right

1шт.

The bolt that goes in Ref. 1 and 2 is 514-722. This is a m10-1.25 x 55 class 8.8 znd bolt.

1шт.

3

1991628C1

BRACKET

2шт.

4

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex, 12 mm - 1.75 x 30 mm

4шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

6

1991629C1

LINK

lower

2шт.

7

1991630C1

ROD

lift, left

1шт.

1991631C1

ROD

LIFT ROD ASSEMBLY, right, Includes Ref. 10, 11 and 12

1шт.

10

1991632C1

ROD

top

1шт.

11

1992611C1

TURNBUCKLE

ROD middle

1шт.

12

1991634C1

ROD

bottom

1шт.

1992408C1

SAFETY NUT

NUT lock

1шт.

1991635C1

VALVE, CHECK

CHECK CHAIN ASSEMBLY

2шт.

16

1991636C1

CHAIN (AG)

CHAIN

2шт.

17

1991637C1

CHAIN (AG)

CHAIN

2шт.

18

1991633C1

TURNBUCKLE

2шт.

19

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

21

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

2шт.

22

825-11416

NUT,M16 x 1.5, Cl 8

Hex M16 x 1.5, Cl 8

2шт.

23

1992409C1

PIN

clevis

2шт.

24

732-3220

COTTER PIN,M3.2 x 20

PIN cotter, 3.2 x 20 mm

2шт.

26

1992410C1

PIN

lift rod

2шт.

27

1992411C1

PIN

cotter

2шт.

28

1991638C1

BRAKE BAND

CABLE

1шт.

29

1992412C1

PIN

6шт.

30

896-16018

WASHER,19.8mm ID x 41.5mm OD x 5mm Thk

flat, 20 x 41 x 5 mm

2шт.

1991639C1

LINK

HITCH LINK ASSEMBLY, Includes Ref. 32 - 35

1шт.

32

1991640C1

TURNBUCKLE

1шт.

33

1991641C1

END FITTING

ROD upper

1шт.

34

1992413C1

NUT

1шт.

35

1991642C1

END FITTING

ROD lower

1шт.

38

1992414C1

PIN

upper rod

1шт.

39

1992412C1

PIN

1шт.

41

1992415C1

PIN

lower rod

1шт.

42

1992416C1

PIN

cotter

1шт.

43

1991643C1

HOOK

1шт.

45

1991644C1

COVER

PTO

1шт.

46

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 25 mm

2шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.
