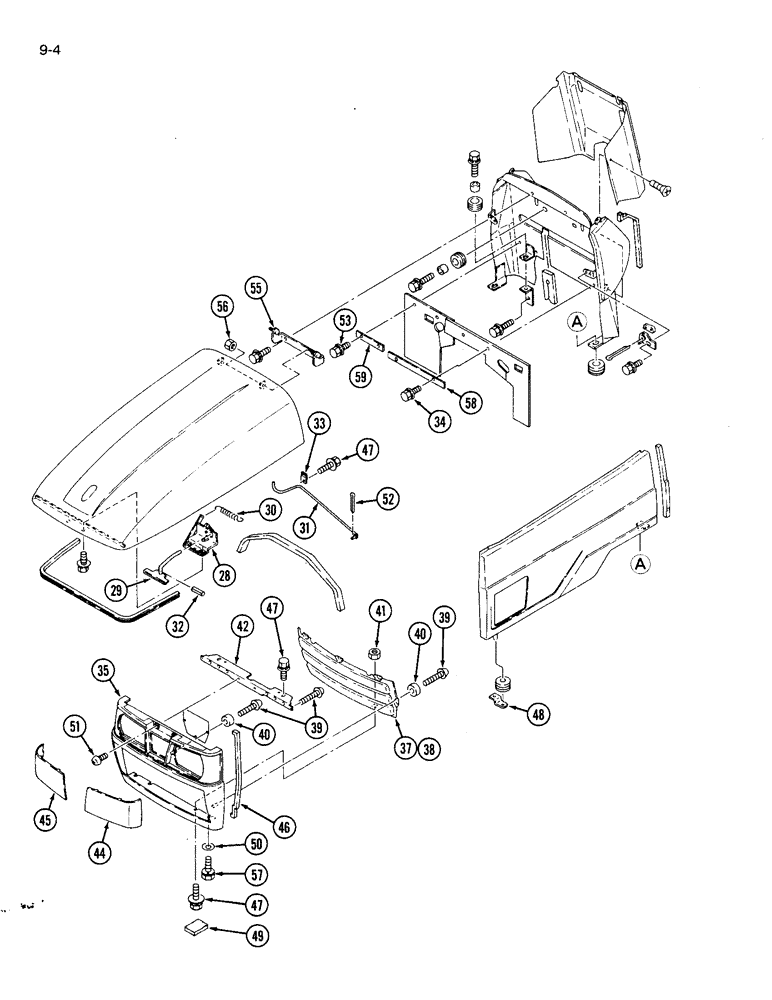

Запчасти Case IH 1120 (9-04) - TRACTOR BODY (09) - CHASSIS/ATTACHMENTS

28

1992609C1

BRACKET

1шт.

29

1991586C1

LEVER

ASSEMBLY

1шт.

30

1992400C1

SPRING

1шт.

31

1991588C1

ROD

1шт.

32

838-1330

LOCK PIN,M3 x 30, Slotted

PIN spring

1шт.

33

1962979C1

CLIP

hood rod

1шт.

34

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

35

1991589C1

GRILLE

1шт.

37

1991590C1

SCREEN

grille

1шт.

38

1991591C1

SCREEN

1шт.

39

1273616C1

SELF-TAP SCREW,Phil, M5 x 16mm

SCREW tapping

10шт.

40

1961885C1

WASHER

SPACER flat, 9/32 x 33/64 x 9/32 inch

8шт.

41

825-1406

NUT,M6, Cl 8

2шт.

42

1992401C1

SUPPORT

grille

1шт.

44

1991594C1

COVER

head lamp, left

1шт.

45

1991595C1

COVER

head lamp, right

1шт.

46

1992403C1

SEAL

2шт.

47

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

5шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

5шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

5шт.

48

1991596C1

BRACKET

mounting

2шт.

49

1992601C1

RUBBER

CUSHION rubber

1шт.

50

896-16006

WASHER,6.4mm ID x 14.5mm OD x 2.5mm Thk

2шт.

51

540-702

SCREW,Cross Pan Hd, M6 x 12

pan head, cross recessed, 6 x 12 mm

2шт.

52

732-2516

COTTER PIN,M2.5 x 16

PIN cotter

1шт.

53

825-1408

NUT,M8, Cl 8

2шт.

55

1991585C1

BRACKET

hood

1шт.

56

832-41308

NUT,M8 x 1.25, Cl 10

hex, self-locking, 8 mm - 1.25, class 10

1шт.

57

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

58

1992687C1

PLATE

support

1шт.

59

1992688C1

PLATE

support

1шт.
