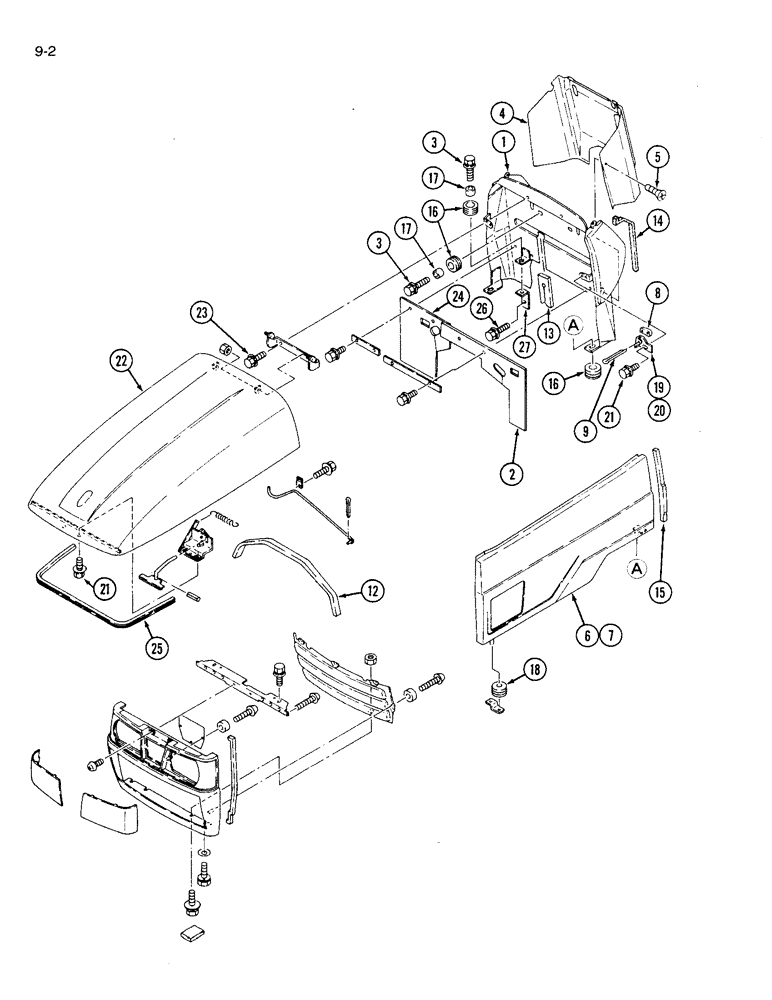

Запчасти Case IH 1120 (9-02) - TRACTOR BODY, HOOD, PANELS, GRILLE (09) - CHASSIS/ATTACHMENTS

1

1991570C1

BODY

PANEL body, instrument shroud

1шт.

2

1992684C1

COVER

left

1шт.

3

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, 8 - 1.25 x 25 mm

6шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

4

1991571C1

COVER

PANEL cover, rear

1шт.

5

540-702

SCREW,Cross Pan Hd, M6 x 12

pan head, cross recessed, 6 x 12 mm

2шт.

6

1991572C1

COVER

PANEL body, side, left

1шт.

7

1991573C1

COVER

PANEL body, side, right

1шт.

8

1991574C1

HOOK

4шт.

9

732-3232

COTTER PIN,M3.2 x 32

PIN cotter, 3.2 x 32 mm

4шт.

12

1992683C1

CUSHION

2шт.

13

1992686C1

CUSHION

1шт.

14

1992855C1

SEAL

foam

2шт.

15

1992689C1

CUSHION

1шт.

16

1991579C1

GROMMET

6шт.

17

1275218C1

COLLAR CLAMP

COLLAR stop

4шт.

18

1961819C1

GROMMET

rubber

2шт.

19

1991580C1

BRACKET

mounting

2шт.

20

1991581C1

BRACKET

mounting

2шт.

21

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, 8 - 1.25 x 16 mm

6шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x1.6 mm

6шт.

22

1991582C1

HOOD

tractor

1шт.

23

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, 8 mm x 20 mm

2шт.

24

1992685C1

COVER

right

1шт.

25

1991583C1

MOLDING

MOULDING seal

1шт.

26

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, 8 mm x 20 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

2шт.

27

1992399C1

BRACKET

mounting

2шт.
