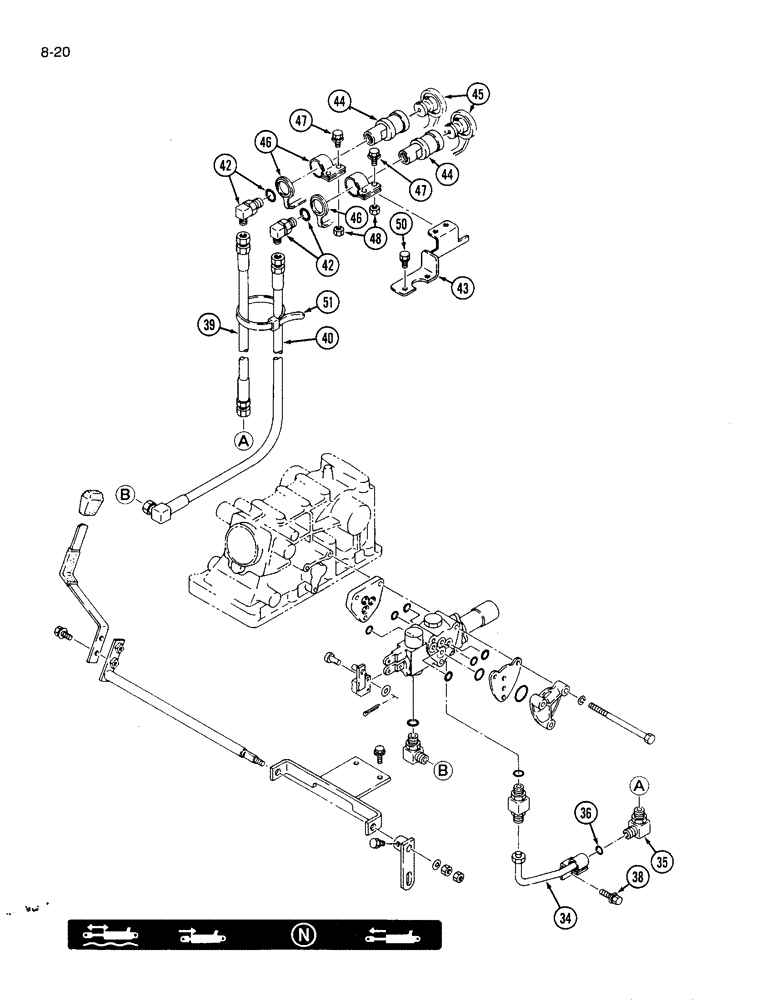

Запчасти Case IH 1120 (8-20) - AUXILIARY VALVE KIT (08) - HYDRAULICS

34

1992602C1

PIPE

TUBING

1шт.

35

1992381C1

ADAPTER

fitting, Includes Ref. 36

1шт.

36

1273793C1

O-RING

O-RING, 14 mm ID

1шт.

38

514-700

BOLT,Hex, M10 x 1 x 16mm, Cl 8.8, Full Thd

hex, 10 - 1 x 16 mm

1шт.

892-11010

LOCK WASHER,M10

1шт.

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

1шт.

39

1992603C1

HOSE ASSY.

HOSE ASSEMBLY

1шт.

40

1992604C1

HOSE ASSY.

HOSE ASSEMBLY

1шт.

42

1992605C1

FITTING

pipe

2шт.

43

1992606C1

BRACKET

1шт.

44

1282338C91

COUPLING, QUICK, FEM

COUPLING ASSEMBLY self sealng, female, 7/8-14 thread

2шт.

45

1954133C1

PLUG

PLUG ASSEMBLY coupling

2шт.

46

1962931C1

CLAMP

coupler

2шт.

47

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, 8 mm x 20 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

4шт.

48

825-1408

NUT,M8, Cl 8

4шт.

50

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 12 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

51

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

1шт.
