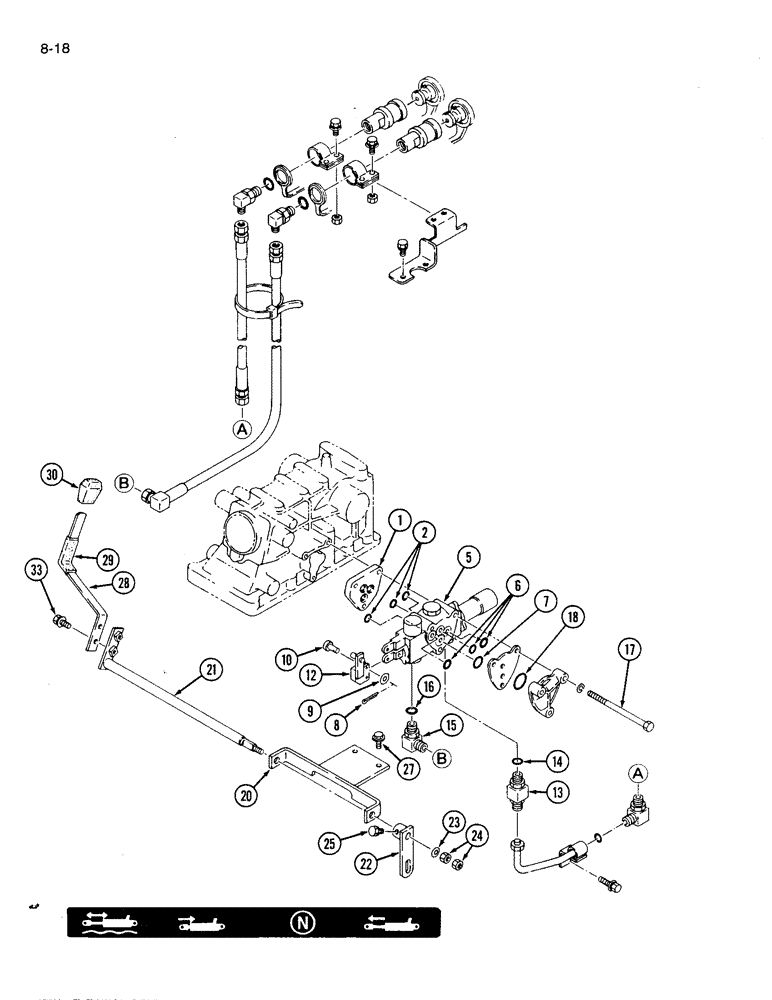

Запчасти Case IH 1120 (8-18) - AUXILIARY VALVE KIT (08) - HYDRAULICS

1

1963561C1

SPACER

valve mounting

1шт.

2

1273523C1

O-RING

O-RING, 12 mm ID

3шт.

1992594C1

VALVE

AUXILIARY VALVE ASSEMBLY, Includes Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

6

1282749C1

O-RING

O-RING, 12 mm ID

3шт.

7

1288101C1

O-RING

O-RING, 16 mm ID

1шт.

8

732-2516

COTTER PIN,M2.5 x 16

PIN hair

3шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

3шт.

10

427-3071

CLEVIS PIN,3/16" x .719"

PIN clevis

3шт.

12

1992595C1

ARM

control

1шт.

13

1992600C1

BODY

FITTING

1шт.

14

1992239C1

O-RING

1шт.

15

1992381C1

ADAPTER

Includes Ref. 16

1шт.

16

1273793C1

O-RING

O-RING, 14 mm ID

1шт.

17

814-8095

BOLT,Hex, M8 x 1.25 x 95mm, Cl 8.8

BOLT

3шт.

18

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

20

1992596C1

BRACKET

1шт.

21

1992597C1

SHAFT

pivot

1шт.

22

1992598C1

ARM

control

1шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

1шт.

24

825-1408

NUT,M8, Cl 8

2шт.

25

814-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 12 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

27

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

892-11010

LOCK WASHER,M10

2шт.

1992599C1

LEVER ASSY.

LEVER ASSEMBLY, Includes Ref. 28 - 29

1шт.

28

NSS

NOT SOLD SEPARAT

LEVER

1шт.

29

1992593C1

TUBE

1шт.

30

1273379C1

KNOB

lever

1шт.

33

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, 8 - 1.25 x 16 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

2шт.
