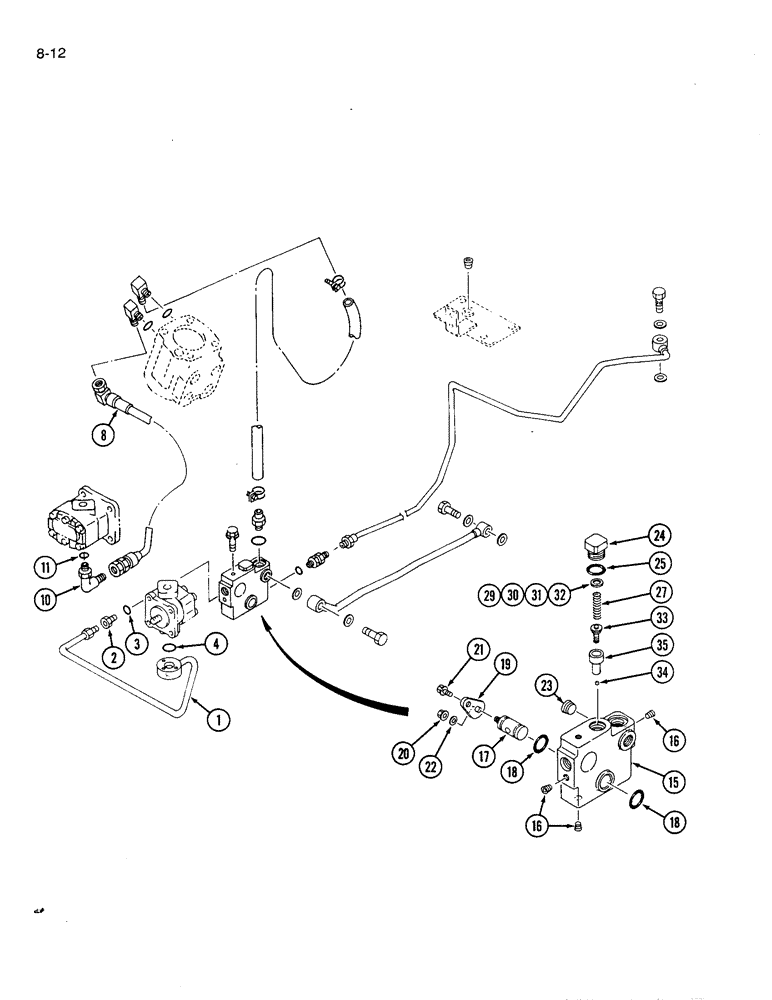

Запчасти Case IH 1120 (8-12) - HYDRAULIC VALVE, LINES AND CONNECTIONS (08) - HYDRAULICS

1

1991534C1

TUBE

pressure

1шт.

2

1992600C1

BODY

FITTING

1шт.

3

1273793C1

O-RING

O-RING, 14 mm ID

1шт.

4

1992380C1

O-RING,0.739" ID x 0.879" OD x 0.07"

1шт.

5

614-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8, Full Thd

3шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

8

1991536C1

HYDRAULIC HOSE

1шт.

10

1991537C1

ELBOW

ADAPTER, Includes Ref. 11

1шт.

11

1273793C1

O-RING

O-RING, 14 mm ID

1шт.

1991538C1

BLOCK

HYDRAULIC VALVE BLOCK ASSEMBLY, Includes Ref. 15 - 32

1шт.

15

1991539C1

BLOCK

BODY block assembly

1шт.

16

444689

PLUG,Hex Soc, 1/8"-27, Brass

hex socket, 1/8 inch PT

3шт.

17

1991540C1

SHAFT

1шт.

18

1288101C1

O-RING

O-RING, 16 mm ID

2шт.

19

1991541C1

PLATE

mounting

1шт.

20

825-5146

SERRATED NUT,M6, Flg Ser

1шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

21

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, 8 - 1.25 x 16 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

23

1282720C1

PLUG

3шт.

24

1991542C1

PLUG

1шт.

25

1991543C1

O-RING,0.739" ID x 0.879" OD x 0.07"

1шт.

26

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

1шт.

127

1991544C1

SPRING

1шт.

1991646C1

SHIM KIT

KIT Shim

1шт.

29

NSS

NOT SOLD SEPARAT

SHIM 0.1 mm

1шт.

30

NSS

NOT SOLD SEPARAT

SHIM 0.3 mm

1шт.

31

NSS

NOT SOLD SEPARAT

SHIM 1.0 mm

1шт.

32

NSS

NOT SOLD SEPARAT

SHIM 2.0

1шт.

33

1991549C1

VALVE POPPET

POPPET

1шт.

34

1991550C1

BALL

steel

1шт.

35

1991551C1

VALVE, PRESSURE RELI

HOUSING relief

1шт.
