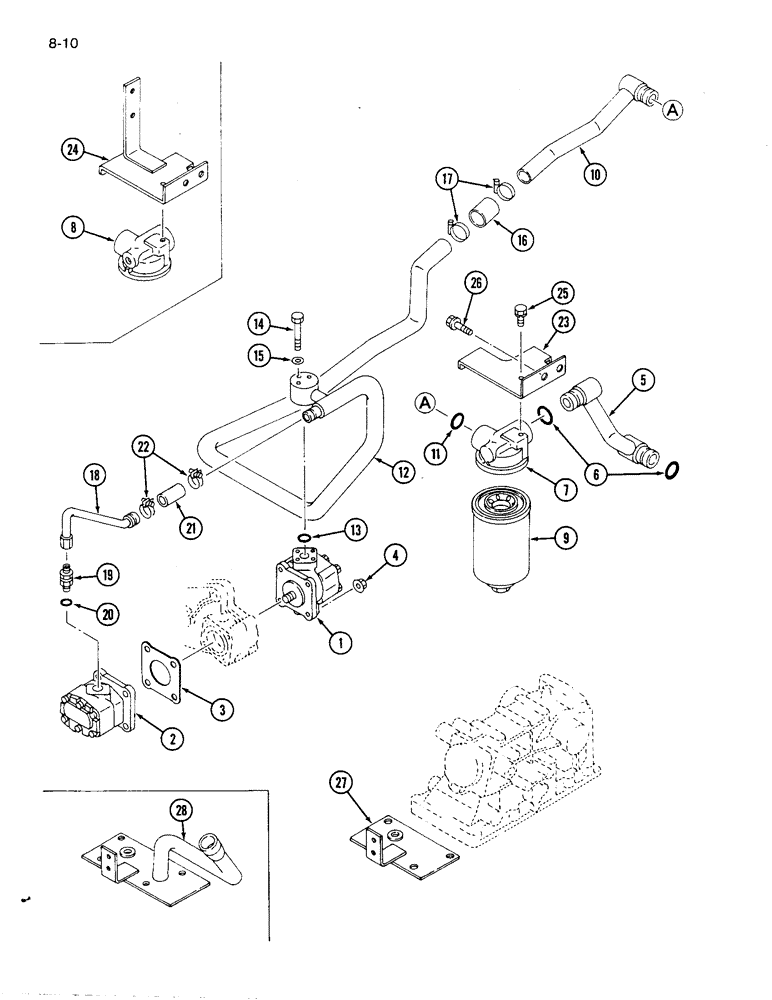

Запчасти Case IH 1120 (8-10) - PUMPS AND HYDRAULIC LINES (08) - HYDRAULICS

1

1991524C1

PUMP

1шт.

2

1991525C1

PUMP

1шт.

3

1962335C1

GASKET

pump

1шт.

4

825-1408

NUT,M8, Cl 8

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

5

1991526C1

TUBE,25.4 mm OD

suction

1шт.

6

1269874C1

O-RING

O-RING, 24 mm ID

2шт.

7

1991527C1

BASE

filter, required for tractors with mechanical transmission

1шт.

8

1991528C1

BASE

filter, required for tractors with hydrostatic transmission

1шт.

9

1963357C1

FILTER, ENGINE OIL

FILTER

1шт.

10

1991529C1

TUBE,28.6 mm OD

suction

1шт.

11

1269874C1

O-RING

O-RING, 24 mm ID

1шт.

12

1991530C1

TUBE

suction

1шт.

13

1269872C1

O-RING

20 mm ID

1шт.

14

813-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

3шт.

15

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

16

1962333C1

HYDRAULIC HOSE

HOSE rubber, 70 mm long

1шт.

17

681896C1

HOSE CLAMP,#20, .81/1.75 Type F Worm, W/liner

CLAMP hose retaining

2шт.

18

1992053C1

TUBE,15 mm OD

suction

1шт.

19

1992607C1

BODY

COUPLING pipe

1шт.

20

1992380C1

O-RING,0.739" ID x 0.879" OD x 0.07"

18 mm ID

1шт.

21

1992055C1

HOSE

rubber

2шт.

22

214-1510

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm, W/ Liner

CLAMP hose

2шт.

23

1991531C1

BRACKET

mounting, required for tractors with mechanical transmission

1шт.

24

1991532C1

BRACKET

mounting, required for tractors with hydrostatic transmission

1шт.

25

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, 8 mm x 20 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

26

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

892-11010

LOCK WASHER,M10

2шт.

27

1992397C1

COVER

required for tractors with mechanical transmission

1шт.

28

1992398C1

COVER

required for tractors with hydrostatic transmission

1шт.
