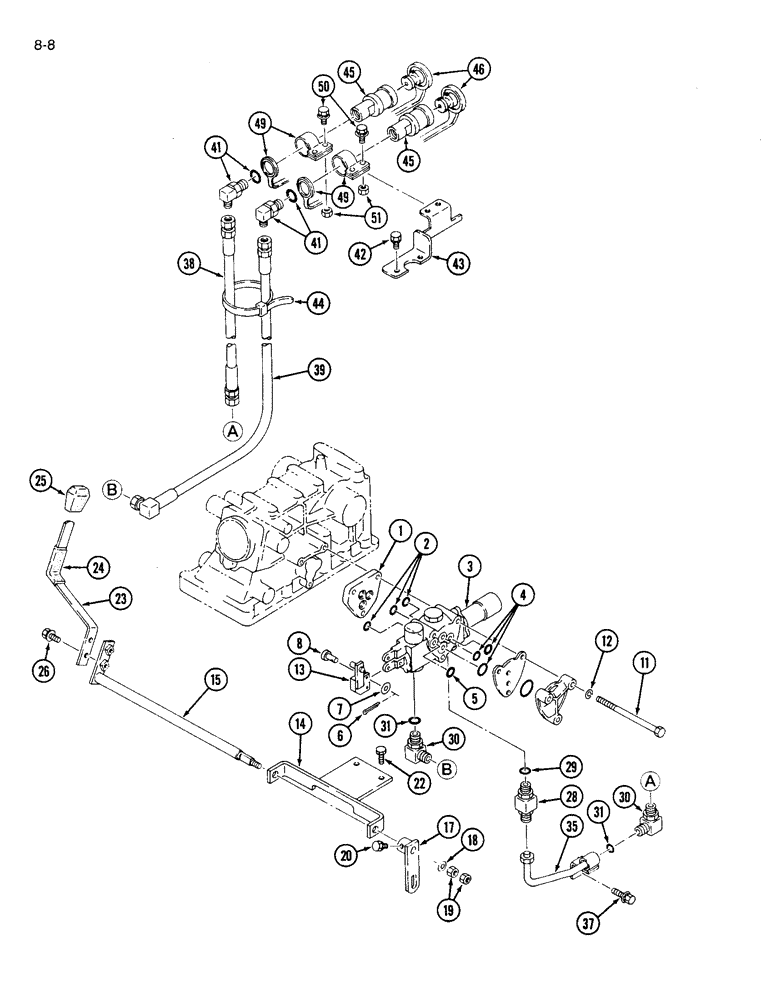

Запчасти Case IH 1120 (8-08) - HYDRAULIC LIFT, AUTO RETURN WITH AUXILIARY VALVE (08) - HYDRAULICS

1

1963561C1

SPACER

valve mounting

1шт.

2

1273523C1

O-RING

O-RING, 12 mm ID

3шт.

1992594C1

VALVE

AUXILIARY VALVE ASSEMBLY, Includes Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

4

1282749C1

O-RING

O-RING, 12 mm ID

3шт.

5

1288101C1

O-RING

O-RING, 16 mm ID

1шт.

6

732-2516

COTTER PIN,M2.5 x 16

PIN cotter

3шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

3шт.

8

427-3071

CLEVIS PIN,3/16" x .719"

PIN clevis

3шт.

11

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

hex, 8 - 1.25 x 45 mm

3шт.

12

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

13

1992595C1

ARM

control

1шт.

14

1992596C1

BRACKET

1шт.

15

1992597C1

SHAFT

pivot

1шт.

17

1992598C1

ARM

control

1шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

1шт.

19

825-1408

NUT,M8, Cl 8

2шт.

20

814-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 12 mm

1шт.

22

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

892-11010

LOCK WASHER,M10

2шт.

1992599C1

LEVER ASSY.

LEVER ASSEMBLY, Includes Ref. 23 and 24

1шт.

23

NSS

NOT SOLD SEPARAT

LEVER

1шт.

24

1992593C1

TUBE

lever

1шт.

25

1273379C1

KNOB

lever

1шт.

26

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, 8 - 1.25 x 16 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

2шт.

28

1992600C1

BODY

FITTING

1шт.

29

1992239C1

O-RING

1шт.

30

1992381C1

ADAPTER

Includes Ref. 31

2шт.

31

1273793C1

O-RING

O-RING, 14 mm ID

2шт.

35

1992602C1

PIPE

TUBING ASSEMBLY

1шт.

37

514-700

BOLT,Hex, M10 x 1 x 16mm, Cl 8.8, Full Thd

hex, 10 - 1 x 16 mm

1шт.

892-11010

LOCK WASHER,M10

1шт.

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

1шт.

38

1992603C1

HOSE ASSY.

HOSE ASSEMBLY

1шт.

39

1992604C1

HOSE ASSY.

HOSE ASSEMBLY

1шт.

41

1992605C1

FITTING

pipe

2шт.

42

1992606C1

BRACKET

1шт.

43

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 12 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

44

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

1шт.

45

1282338C91

COUPLING, QUICK, FEM

COUPLING ASSEMBLY, self sealing, female, 7.8-14 thread

2шт.

46

1954133C1

PLUG

PLUG ASSEMBLY, coupling dust

2шт.

49

1962931C1

CLAMP

coupler

2шт.

50

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, 8 mm x 20 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

4шт.

51

825-1408

NUT,M8, Cl 8

4шт.
