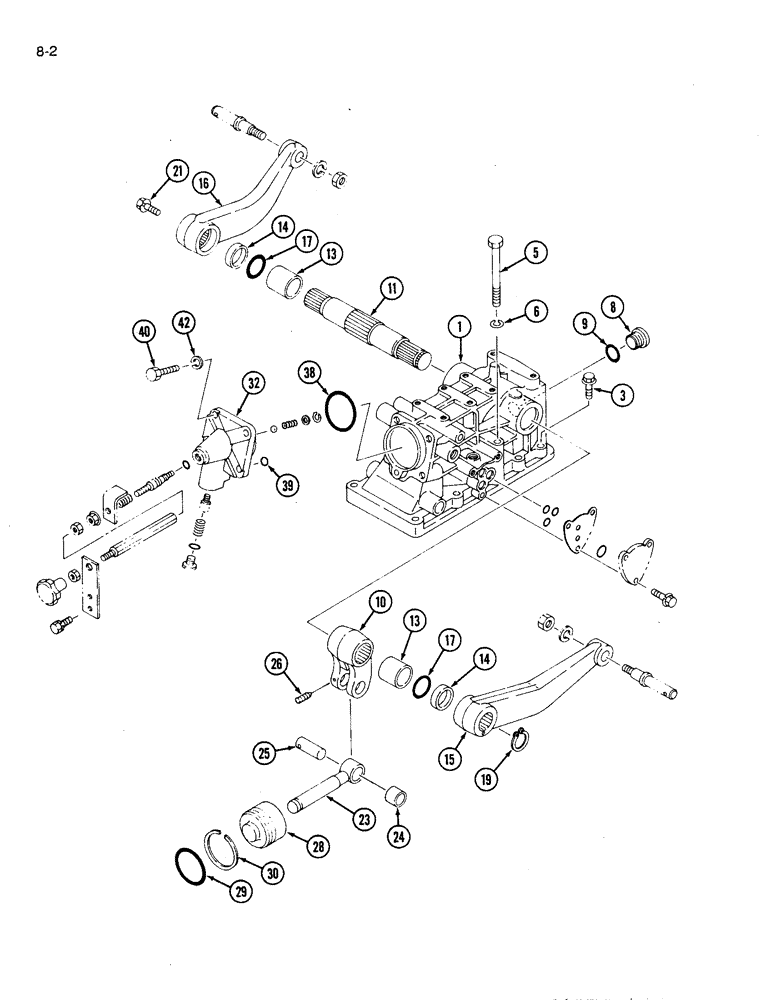

Запчасти Case IH 1120 (8-02) - HYDRAULIC LIFT, PISTON AND ROCKSHAFT (08) - HYDRAULICS

1

1991468C1

CASE

HOUSING rockshaft

1шт.

3

514-713

BOLT,Hex, M10 x 1.25 x 45mm, Cl 5.6

hex, 10 - 1.25 x 45 mm, class 5.6

7шт.

5

514-726

BOLT,Hex, M10 x 1.25 x 100mm, Cl 8.8

hex, 10 - 1.25 x 100 mm

1шт.

6

892-11010

LOCK WASHER,M10

1шт.

8

1271804C1

PLUG

housing

1шт.

9

1269873C1

O-RING

O-RING plug

1шт.

10

1991470C1

ARM

power

1шт.

11

1991471C1

SHAFT

ROCKSHAFT

1шт.

13

1991472C1

BUSHING

rockshaft

2шт.

14

1991473C1

COLLAR

SPACER lift arm

2шт.

15

1991474C1

ARM

lift, left

1шт.

16

1991475C1

ARM

lift, right

1шт.

17

1991476C1

O-RING

rockshaft

2шт.

19

934462R1

RING retaining

1шт.

21

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

892-11010

LOCK WASHER,M10

1шт.

23

1992854C1

PISTON ROD

ROD piston

1шт.

24

1275194C1

BUSHING

piston rod

1шт.

25

1991478C1

PIN

piston

1шт.

26

877-20816

SET SCREW,M8 x 16mm

SCREW power arm

1шт.

28

1991479C1

PISTON

lift cylinder

1шт.

29

1992592C1

O-RING,55mm ID x 65mm OD x 5.7mm

1шт.

30

1992747C1

RING

retaining

1шт.

32

1991480C1

HEAD

cylinder

1шт.

38

1963245C1

O-RING

1шт.

39

1273522C1

O-RING

O-RING, 10 mm ID

1шт.

40

1962699C1

BOLT (SPREADER)

BOLT hex, 12 x 40 mm

4шт.

42

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.
