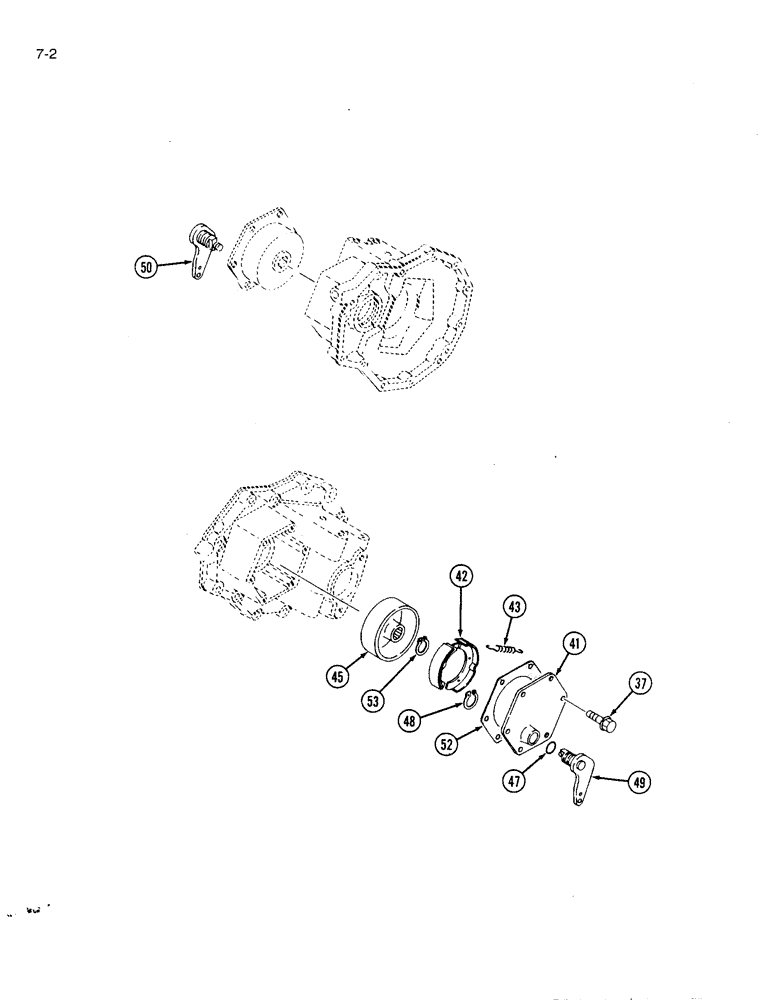

Запчасти Case IH 1120 (7-02) - BRAKES (07) - BRAKES

1991329C1

BRAKE ASSY.

BRAKE ASSEMBLY, left, Includes Ref. 41 - 49

1шт.

1991330C1

BRAKE ASSY.

BRAKE ASSEMBLY, right, Includes Ref 41 - 48 and 50

1шт.

41

1991331C1

PLATE ASSY.

COVER brake

2шт.

42

1991332C1

SHOE (ASSY)

SET Brake Shoe, Includes Ref. 43

2шт.

NSS

NOT SOLD SEPARAT

SHOE brake

2шт.

43

NSS

NOT SOLD SEPARAT

SPRING brake

2шт.

45

1991333C1

DRUM HUB

DRUM brake

1шт.

47

1269871C1

O-RING,17.8mm ID x 2.4mm Width

18 mm ID

1шт.

48

933105R1

SNAP RING,M22, Ext

RING retaining, external, 20 mm ID

1шт.

49

1991334C1

ARM

CAM brake, left

1шт.

50

1991335C1

ARM

CAM brake, right

1шт.

52

1269564C1

GASKET

brake cover

2шт.

53

933128R1

SNAP RING,M25, Ext

RING retaining, external, 23 mm ID

2шт.
