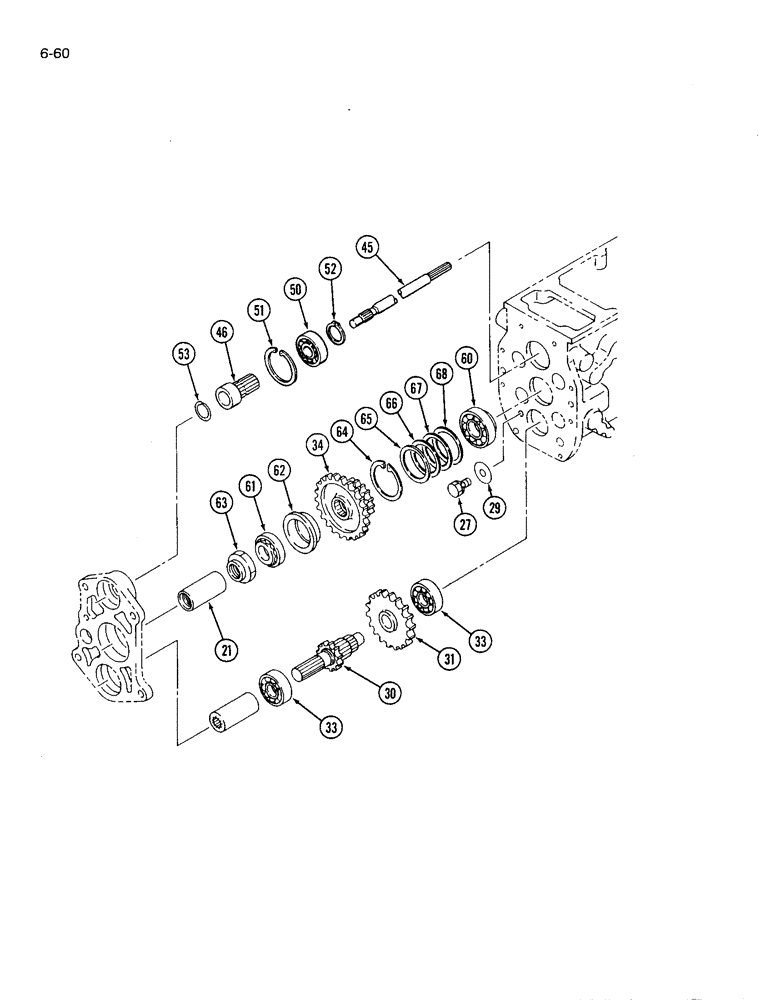

Запчасти Case IH 1120 (6-60) - TRANSMISSION LIVE SELECTION GEARS, TWO WHEEL DRIVE AND MFD (06) - POWER TRAIN

21

1991255C1

COUPLING

shaft, 2 wheel drive

1шт.

21

1991255C1

COUPLING

shaft, MFD

2шт.

27

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

892-11010

LOCK WASHER,M10

1шт.

29

896-16010

WASHER,11mm ID x 24mm OD x 3mm Thk

flat, 11 x 24 x 3 mm, hardened

1шт.

30

1991258C1

SHAFT

pinion gear

1шт.

31

1991259C1

GEAR

34 tooth

1шт.

33

1271862C91

BEARING, BALL

BEARING ASSEMBLY

2шт.

34

1991260C1

GEAR

24 and 42 tooth

1шт.

45

1992573C1

SHAFT

main

1шт.

46

1991890C1

JOINT

COUPLING shaft

1шт.

50

1991284C1

BALL BEARING

BEARING ASSEMBLY

1шт.

51

933236R1

SNAP RING,M47, Int

RING retaining

1шт.

52

933128R1

SNAP RING,M25, Ext

RING retaining, external, 23 mm ID

1шт.

53

1992574C1

RING

retaining

1шт.

60

1991263C1

BALL BEARING

BEARING ASSEMBLY

1шт.

61

1273175C91

TAPERED BEARING

TAPER ROLLER BEARING ASSEMBLY

1шт.

62

1269456C1

WASHER

HOLDER bearing

1шт.

63

1962038C1

NUT

hex, special, 25 mm - 1.5

1шт.

64

1273565C1

RING

retaining

1шт.

65

1273566C1

SHIM

1шт.

1273570C1

SHIM

KIT Shim, drive pinion, Includes Ref. 66, 67 and 68

1шт.

66

NSS

NOT SOLD SEPARAT

SHIM

1шт.

67

NSS

NOT SOLD SEPARAT

SHIM

1шт.

68

NSS

NOT SOLD SEPARAT

SHIM

1шт.
