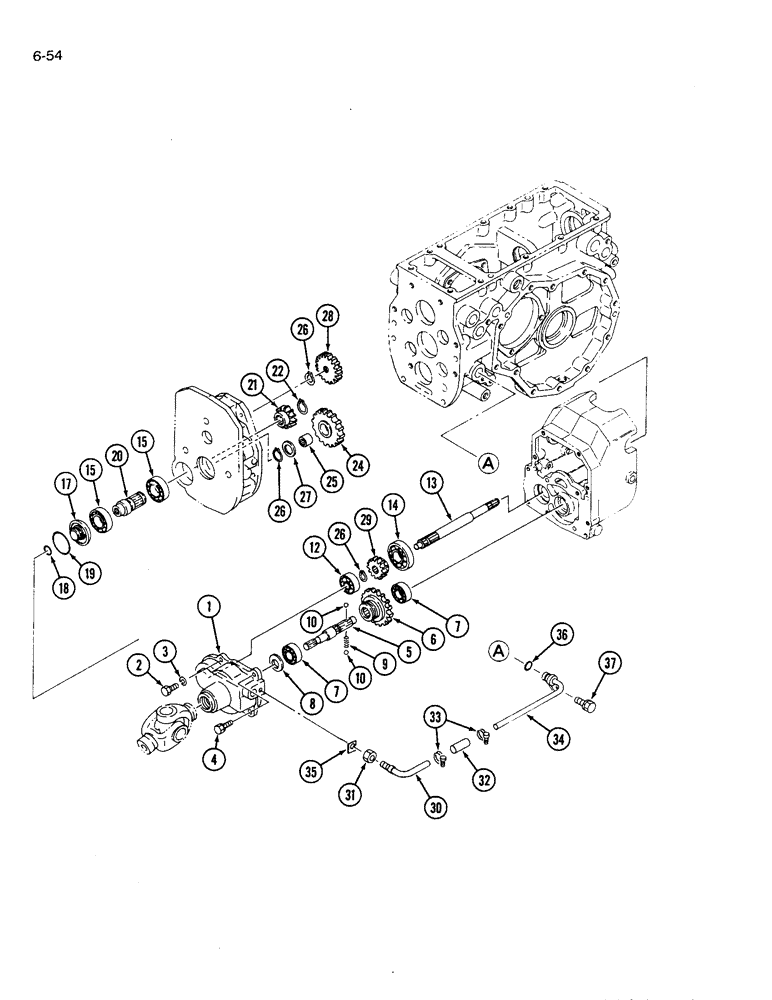

Запчасти Case IH 1120 (6-54) - MFD PTO DRIVE GEARS, HYDROSTATIC TRANSMISSION (06) - POWER TRAIN

1

1991429C1

CASE

HOUSING MFD

1шт.

2

1273202C1

BOLT,Hex, M10 x 1.25 x 35mm

BOLT shoulder

2шт.

3

892-11010

LOCK WASHER,M10

2шт.

4

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, 10 - 1.25 x 30 mm

2шт.

892-11010

LOCK WASHER,M10

2шт.

5

1991424C1

SHAFT

1шт.

6

1991425C1

GEAR

32 tooth

1шт.

7

1271855C91

BEARING, BALL

BALL BEARING ASSEMBLY

2шт.

8

1273179C1

OIL SEAL

SEAL oil

1шт.

9

1991426C1

SPRING

compression

1шт.

10

1991378C1

BALL

steel

2шт.

12

1273764C91

BALL BEARING

BALL BEARING ASSEMBLY

1шт.

13

1991433C1

SHAFT

1шт.

14

1991241C1

BALL BEARING

BEARING ASSEMBLY

1шт.

15

1271858C91

BALL BEARING

ASSEMLBY

2шт.

17

1991434C1

HOLDER

RETAINER

1шт.

18

1991435C1

O-RING,1.239" ID x 1.379" OD x 0.07"

1шт.

19

1962520C1

O-RING

56 mm ID

1шт.

120

1991436C1

COUPLING

COUPLER shaft

1шт.

21

1991437C1

GEAR

20 tooth

1шт.

22

933086R1

SNAP RING,M30, Ext

RING - retaining, external, 28 mm

1шт.

24

1991438C1

GEAR

36 tooth

1шт.

25

1962537C1

BEARING

ASSEMBLY

1шт.

26

933123R1

SNAP RING,M20, Ext

RING retaining, external, 18 mm ID

2шт.

27

1962985C1

SPACER

1шт.

28

1991440C1

GEAR

20 tooth

1шт.

29

1992361C1

PINION

GEAR, 26 tooth

1шт.

30

1992758C1

PIPE

ASSEMBLY

1шт.

31

825-11412

NUT,M12 x 1.25, Cl 8

hex, 12 mm - 1.25

1шт.

32

1275159C2

HYDRAULIC HOSE,11.00 mm ID x 65.00 mm

11.00 mm ID x 65.00 mm

1шт.

33

1992759C1

CLAMP

hose

2шт.

34

1992760C1

PLATE

PIPE ASSEMBLY

1шт.

35

1992761C1

PLATE

1шт.

36

1992204C1

WASHER

O-RING

1шт.

37

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

892-11010

LOCK WASHER,M10

1шт.
