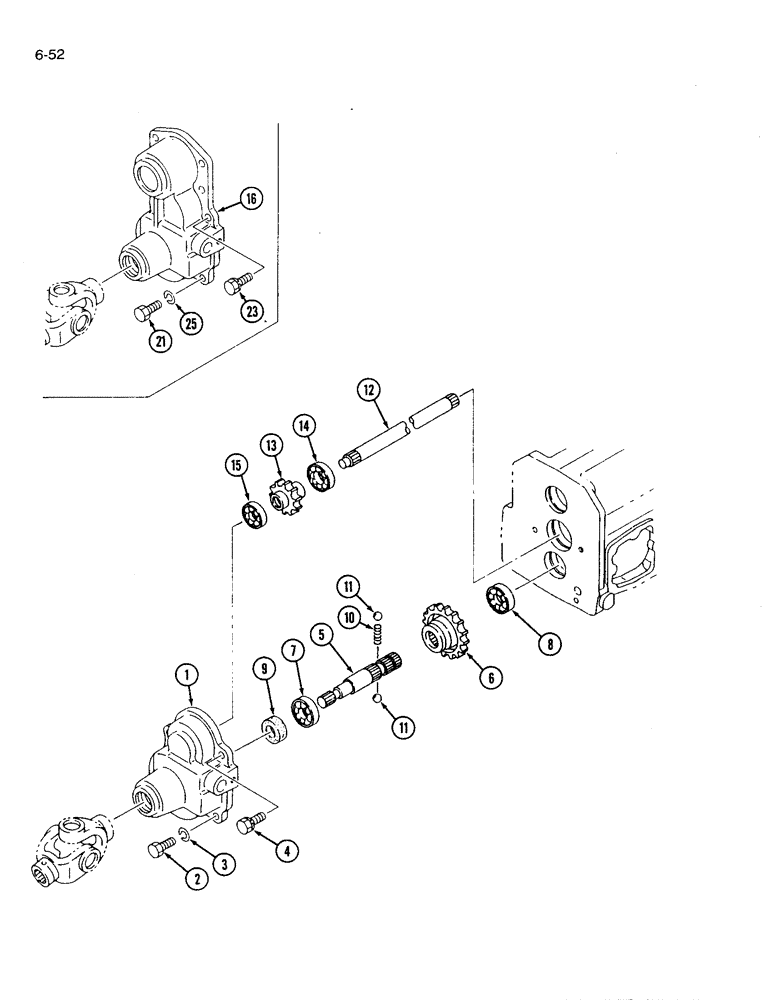

Запчасти Case IH 1120 (6-52) - MFD PTO DRIVE GEARS, STANDARD AND GEAR, LIVE (06) - POWER TRAIN

1

1991423C1

HOUSING

MFD, standard only

1шт.

12

1273202C1

BOLT,Hex, M10 x 1.25 x 35mm

BOLT shoulder, standard only

2шт.

3

892-11010

LOCK WASHER,M10

Standard only M10

2шт.

4

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, 10 - 1.25 x 30 mm, Standard only

2шт.

892-11010

LOCK WASHER,M10

Standard only M10

2шт.

5

1991424C1

SHAFT

1шт.

6

1991425C1

GEAR

35 tooth

1шт.

7

1271855C91

BEARING, BALL

BALL BEARING ASSEMBLY

1шт.

8

1271862C91

BEARING, BALL

BALL BEARING ASSEMBLY

1шт.

9

1273179C1

OIL SEAL

SEAL oil

1шт.

10

1991426C1

SPRING

compression

1шт.

111

1991378C1

BALL

stee

2шт.

12

1991427C1

SHAFT

1шт.

13

1991428C1

GEAR

22 tooth

1шт.

14

1271858C91

BALL BEARING

ASSEMBLY

1шт.

15

1273764C91

BALL BEARING

BALL BEARING ASSEMBLY

1шт.

16

1992589C1

HOUSING

MFD, used with gear 9 (live) only

1шт.

21

1273202C1

BOLT,Hex, M10 x 1.25 x 35mm

BOLT shoulder, not used with standard

1шт.

23

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, 10 - 1.25 x 30 mm, Not used with standard

1шт.

892-11010

LOCK WASHER,M10

Not used with standard M10

1шт.

25

892-11010

LOCK WASHER,M10

Not used with standard M10

3шт.
