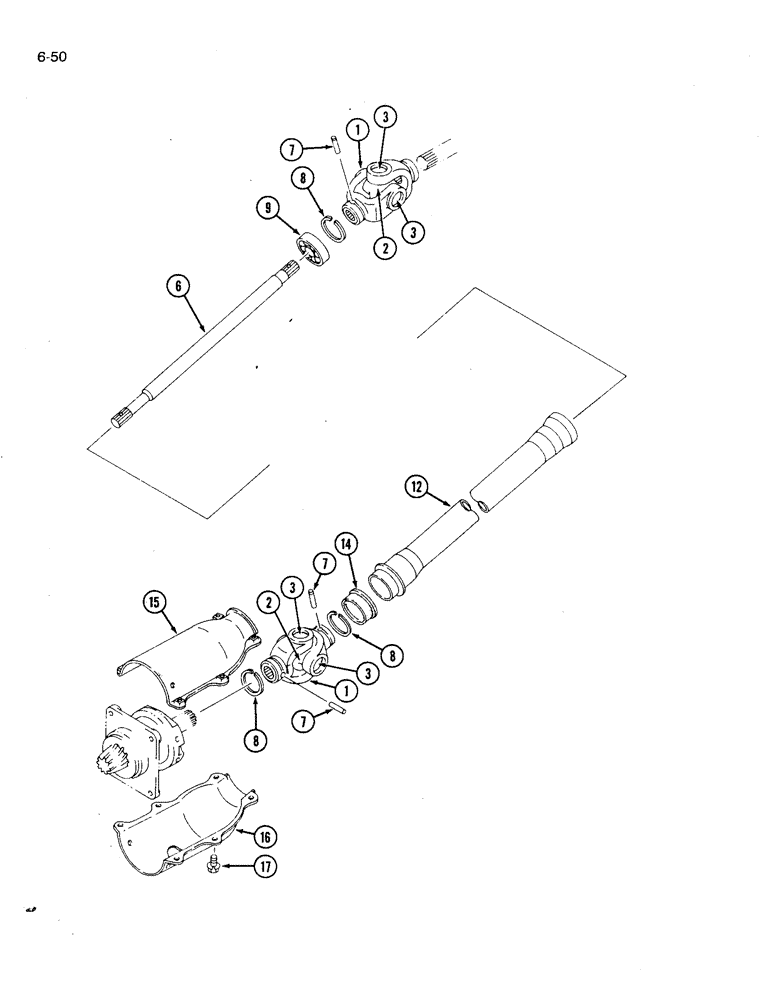

Запчасти Case IH 1120 (6-50) - MFD PTO DRIVE SHAFT, MECHANICAL AND HYDROSTATIC TRANSMISSION (06) - POWER TRAIN

1269830C91

JOINT TURNING

KIT U-joint, drive shaft, Includes Ref. 1, 2 and 3

2шт.

1

NSS

NOT SOLD SEPARAT

SPLINE york

4шт.

2

1269831C1

KIT

DRIVE SHAFT BEARING ASSEMBLY

2шт.

3

933845R1

RING,M20, Int

RING retaining, internal, 21 mm OD

8шт.

6

1991420C1

SHAFT

drive

1шт.

7

837-6030

DOWEL,M6 x 30

PIN dowel

3шт.

8

1269833C2

RING, SNAP

RING retaining

3шт.

9

1991421C1

BALL BEARING

BEARING ASSEMBLY

1шт.

12

1991422C1

COVER

TUBE shaft cover

1шт.

14

99225C1

PLUG

SEAL cushion, rubber

1шт.

15

1269838C1

COVER ASSY

COVER U-joint, upper

1шт.

16

1269839C1

COVER ASSY

COVER U-joint, lower

1шт.

17

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

8шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

8шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.
