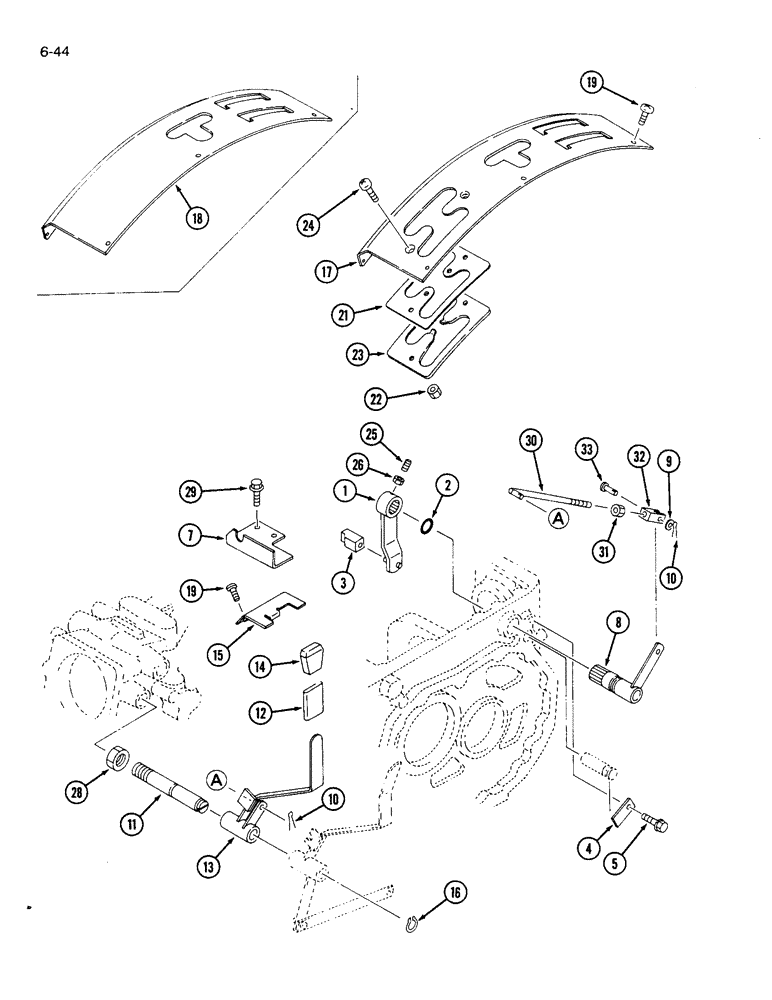

Запчасти Case IH 1120 (6-44) - PTO SHIFT LEVER AND LINKAGE, MECHANICAL AND HYDROSTATIC TRANSMISSION (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
1991387C1
SHIFTING UNIT
LEVER PTO shift
1шт.
2
1269873C1
O-RING
O-RING plug
1шт.
3
1991388C1
CENTERING RING
SPACER PTO shift
1шт.
4
1991389C1
PLATE
retaining
1шт.
5
514-703
BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd
1шт.
892-11010
LOCK WASHER,M10
1шт.
7
1992323C1
PLATE
BRACKET
1шт.
8
1991390C1
ARM
PTO shift
1шт.
9
896-11008
WASHER,9mm ID x 17mm OD x 2mm Thk
flat, 9 x 17 x 2 mm, hardened
1шт.
10
732-2516
COTTER PIN,M2.5 x 16
PIN cotter
2шт.
11
1991391C1
SHAFT
PTO lever
1шт.
1992584C1
LEVER
PTO LEVER ASSEMBLY
1шт.
12
1992321C1
TUBE
lever
1шт.
13
1991392C1
LEVER
shift
1шт.
14
99326C1
KNOB
PTO lever
1шт.
15
1991393C1
PLATE
guide
1шт.
16
933123R1
SNAP RING,M20, Ext
RING retaining, external, 18 mm ID
1шт.
17
1991394C1
COVER
lever guide, for use with mechanical transmission
1шт.
18
1991395C1
COVER
lever guide, for use with hydrostatic transmission
1шт.
19
540-702
SCREW,Cross Pan Hd, M6 x 12
pan head, cross recessed, 6 x 12 mm
7шт.
21
1991396C1
GUIDE
PLATE guide, for use with mechanical transmission
1шт.
22
825-1406
NUT,M6, Cl 8
For use with mechanical transmission M6, Cl 8
2шт.
892-11006
LOCK WASHER,M6
WASHER, LOCK, , For Use with Mechanical Transmission M6
2шт.
23
1991397C1
PLATE
guide, for use with mechanical transmission
1шт.
24
30442R1
SCREW,Hex Flat Hd, M6 x 16, 4.8
For use with mechanical transmission Hex Flat Hd, M6 x 16, 4.8
2шт.
25
877-30816
SET SCREW,Hex Skt, M8 x 16mm, Flat Pt
SCREW
1шт.
26
825-1408
NUT,M8, Cl 8
1шт.
28
825-11420
NUT,M20 x 1.5, Cl 8
- hex, 20 mm - 1.5
1шт.
29
614-8020
BOLT,Hex, M8 x 1.25 x 20mm
hex, 8 mm x 20 mm
2шт.
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
2шт.
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
flat, 9 x 17 x 1.6 mm
2шт.
30
1992585C1
LINK
connecting
1шт.
31
825-1410
NUT,M10, Cl 8
1шт.
32
1962677C1
JOINT TURNING
YOKE shift arm
1шт.
33
1962996C1
CLEVIS PIN
PIN clevis
1шт.
Выбрано товаров: 35
