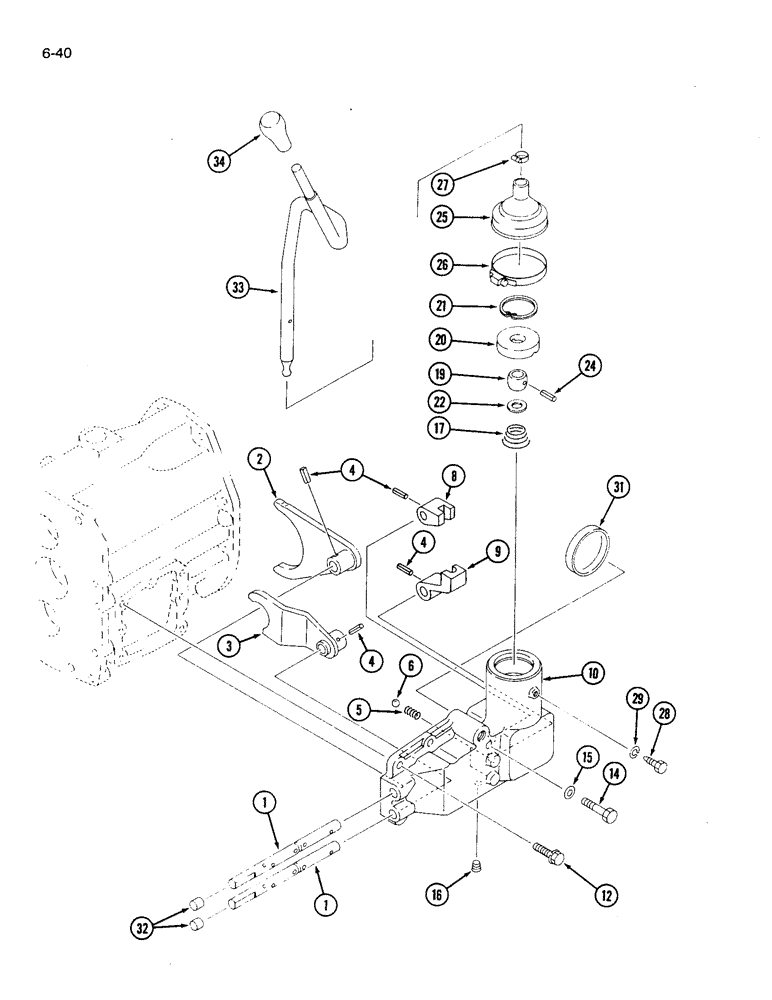

Запчасти Case IH 1120 (6-40) - GEAR SHIFT LINKAGE AND MECHANISM, MECHANICAL TRANSMISSION (06) - POWER TRAIN

1

1991351C1

RAIL

shift

2шт.

2

1991352C1

FORK

shift, first and reverse

1шт.

3

1991353C1

FORK

shift, second and third

1шт.

4

838-1626

LOCK PIN,6mm OD x 26mm L, Slotted

PIN spring

4шт.

5

1273482C1

VALVE SPRING

SPRING shift cover

2шт.

6

17011R1

BALL

steel, 1/4 inch diameter

4шт.

8

1991354C1

ADAPTER

shift rail

1шт.

9

1991355C1

ADAPTER

shift rail

1шт.

10

1991356C1

COVER

transmission

1шт.

12

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, 10 - 1.25 x 30 mm

4шт.

892-11010

LOCK WASHER,M10

4шт.

14

1273389C1

BOLT,Hex, M10 x 1.25 x 70mm, Half Thd

hex, 70 mm long

1шт.

15

892-11010

LOCK WASHER,M10

1шт.

16

444693

PLUG,Hex Soc, 1/4"-18, Brass

hex socket, automotive, 1/4-18 pipe

1шт.

17

1991357C1

SPRING

shift lever

1шт.

19

1991358C1

BALL

shift lever

1шт.

20

1991359C1

BOSS

shift lever

1шт.

21

1991910C1

RING

retaining

1шт.

22

1991360C1

WASHER

1шт.

24

1991361C1

PIN

spring

1шт.

25

1991362C1

COVER

shift lever

1шт.

26

1991363C1

CLAMP

shift lever

1шт.

27

1992056C1

HOSE CLAMP

CLAMP hose

1шт.

28

1991364C1

BOLT

1шт.

29

825-1408

NUT,M8, Cl 8

1шт.

31

1963185C1

SEAL ASSY.

CAP rubber

1шт.

32

1991957C1

CAP

PLUG shift rail

2шт.

33

1991365C1

LEVER

gear shift

1шт.

34

1992105C1

GRIP

KNOB shift lever

1шт.
